Removal and Installation Procedures
Right-Side Cover
Left-Side Cover
5-16

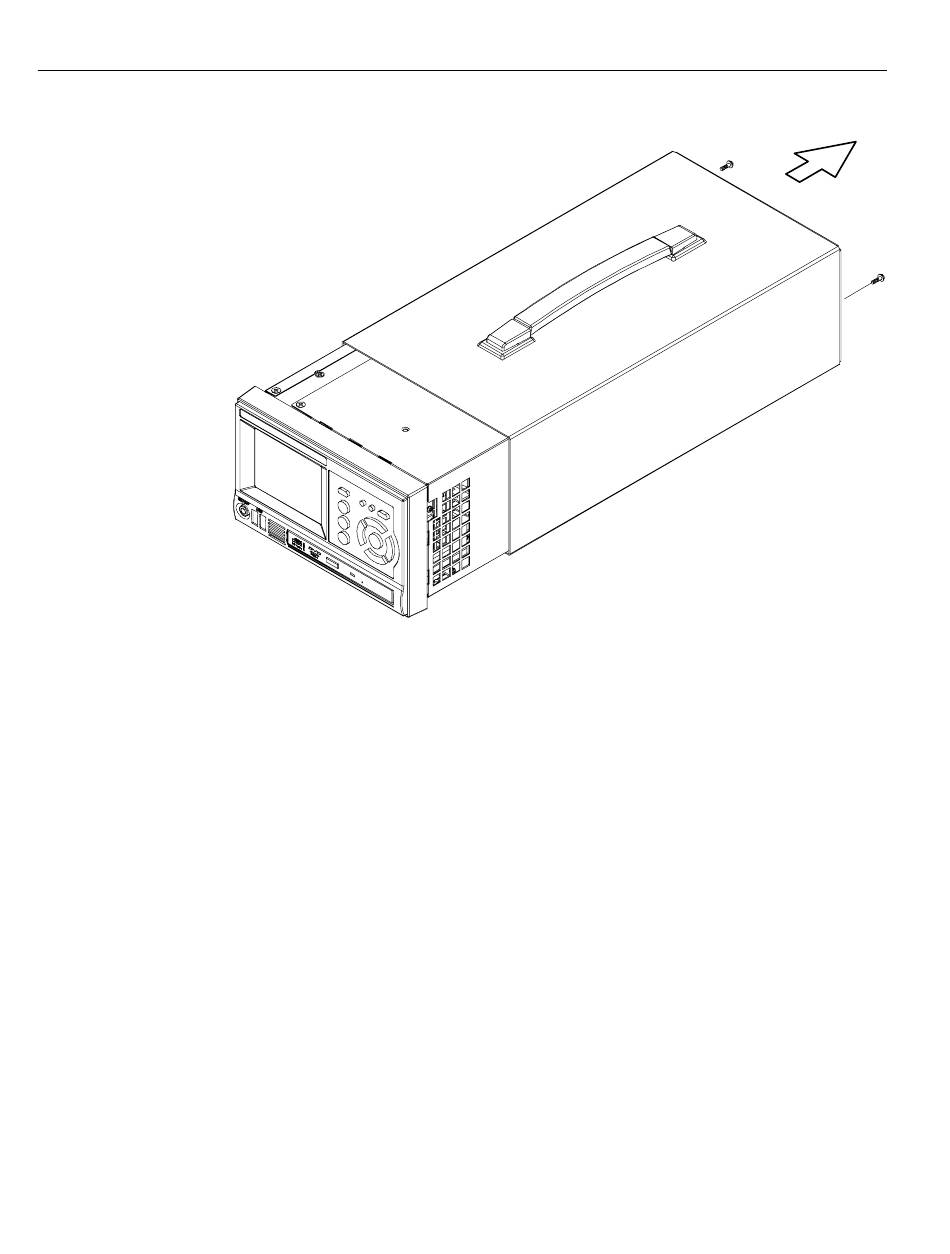

Figure 5-6: Cabinet removal

1. Assemble equipment and locate module to be removed:
a. You need a screwdriver with a T-10 Torx tip.
b. Locate the right-side cover in the locator diagram External modules,
Figure 5-2, on page 5-11.
2. Orient the instrument: Set the RTX100A so its left side is down on the work
surface and its front is facing you.
3. Use a screwdriver with a T-10 Torx tip to remove the seven screws securing
the right-side cover to the top and bottom of the chassis. See Figure 5-7.
4. Remove the right-side cover from the chassis.
5. Reinstallation: Perform steps 3 and 4 in reverse order to reinstall the
right-side cover.
1. Assemble equipment and locate module to be removed:
a. You need a screwdriver with a T-10 Torx tip.
