Removal and Installation Procedures
RTX100A Orientation
5-10
In this manual, procedures refer to "front," "back," and "top" of the RTX100A.
Figure 5-1 shows how the sides are referenced. Figures 5-2 through 5-4 show the
modules that make up the RTX100A.

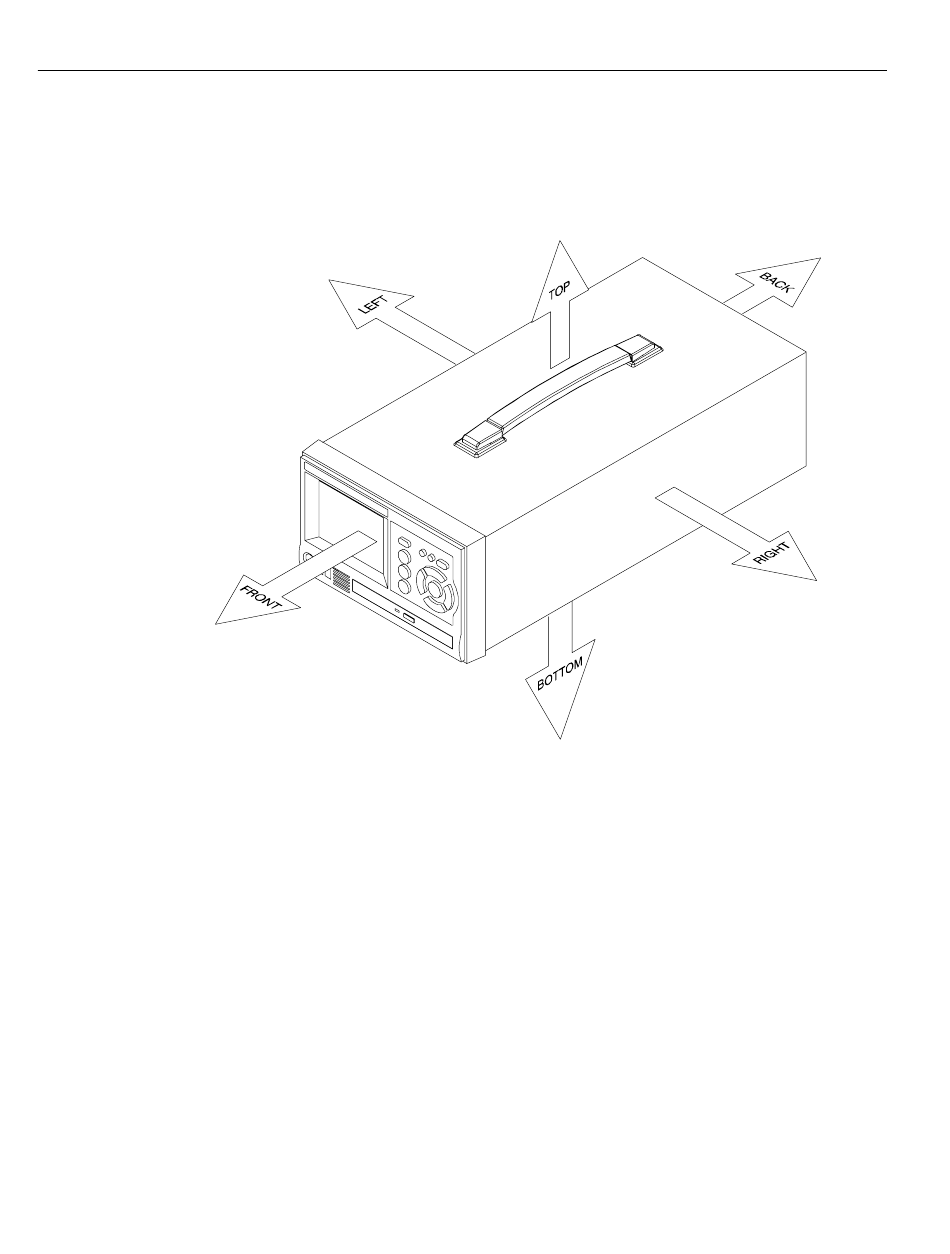

Figure 5-1: RTX100A orientation

RTX100A ISDB-T RF Signal Generator Service Manual
