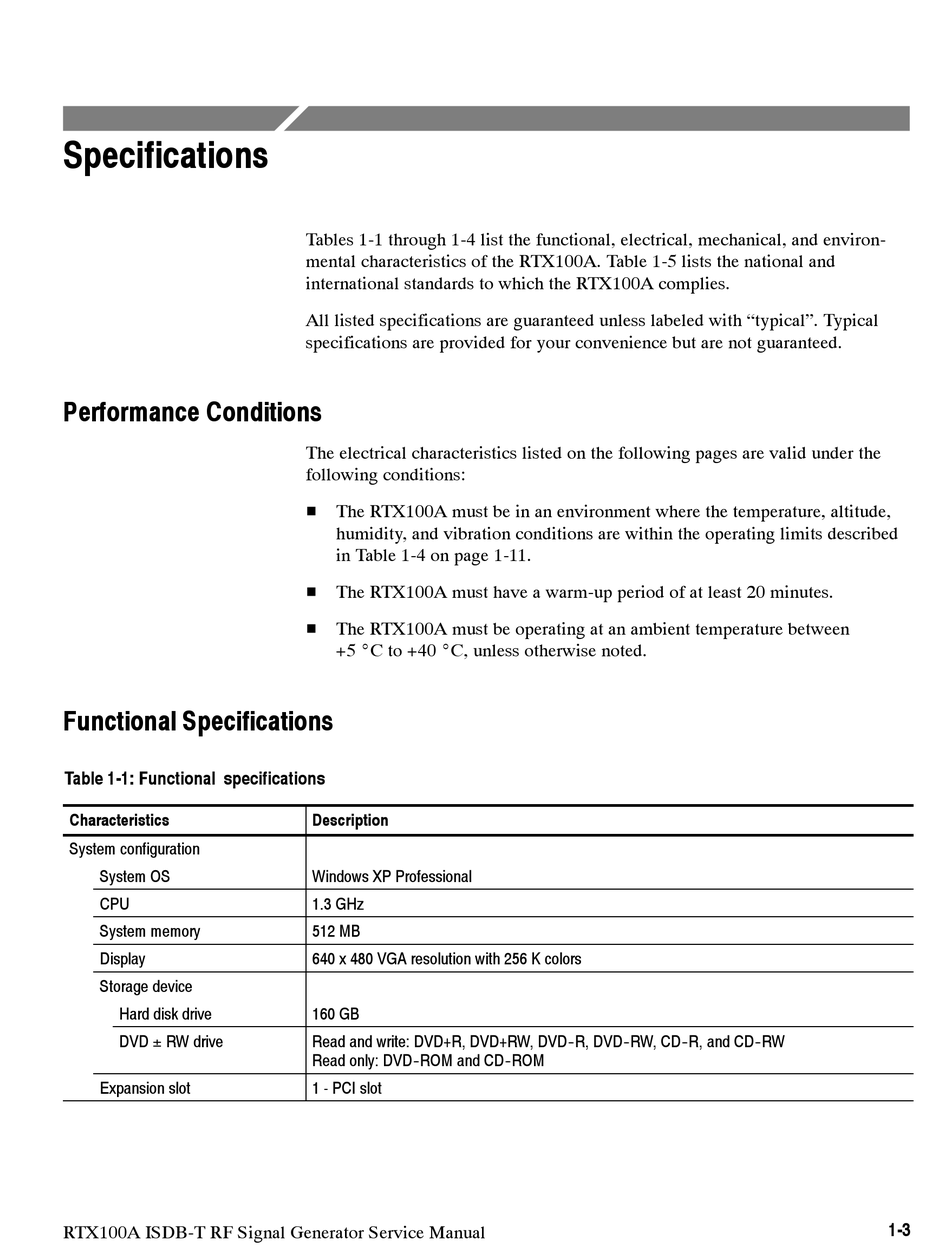

Specifications
Performance Conditions
Functional Specifications

Table 1-1: Functional specifications

Characteristics
System configuration
System OS
CPU
System memory
Display
Storage device
Hard disk drive
DVD ± RW drive
Expansion slot
RTX100A ISDB-T RF Signal Generator Service Manual
Tables 1-1 through 1-4 list the functional, electrical, mechanical, and environ-
mental characteristics of the RTX100A. Table 1-5 lists the national and
international standards to which the RTX100A complies.
All listed specifications are guaranteed unless labeled with "typical". Typical
specifications are provided for your convenience but are not guaranteed.
The electrical characteristics listed on the following pages are valid under the
following conditions:
H The RTX100A must be in an environment where the temperature, altitude,
humidity, and vibration conditions are within the operating limits described
in Table 1-4 on page 1-11.
H The RTX100A must have a warm-up period of at least 20 minutes.
H The RTX100A must be operating at an ambient temperature between
+5 _C to +40 _C, unless otherwise noted.
Description
Windows XP Professional
1.3 GHz
512 MB
640 x 480 VGA resolution with 256 K colors
160 GB
Read and write: DVD+R, DVD+RW, DVD- - R, DVD- - RW, CD- - R, and CD- - RW
Read only: DVD- - ROM and CD- - ROM
1 - PCI slot
1-3
