Performance Verification
IEEE1394b Interface
3-26
This test verifies that the IEEE1394b interface is functioning correctly.
Equipment q p IEEE1394b hard disk drive
required i d
IEEE1394b cable (9 pin- - 9 pin))
test40.TRP file
1. Use the IEEE1394b cable to connect the IEEE1394b connector on the
RTX100A to the IEEE1394b hard disk drive. See Figure 3-13.
RTX100A rear panel

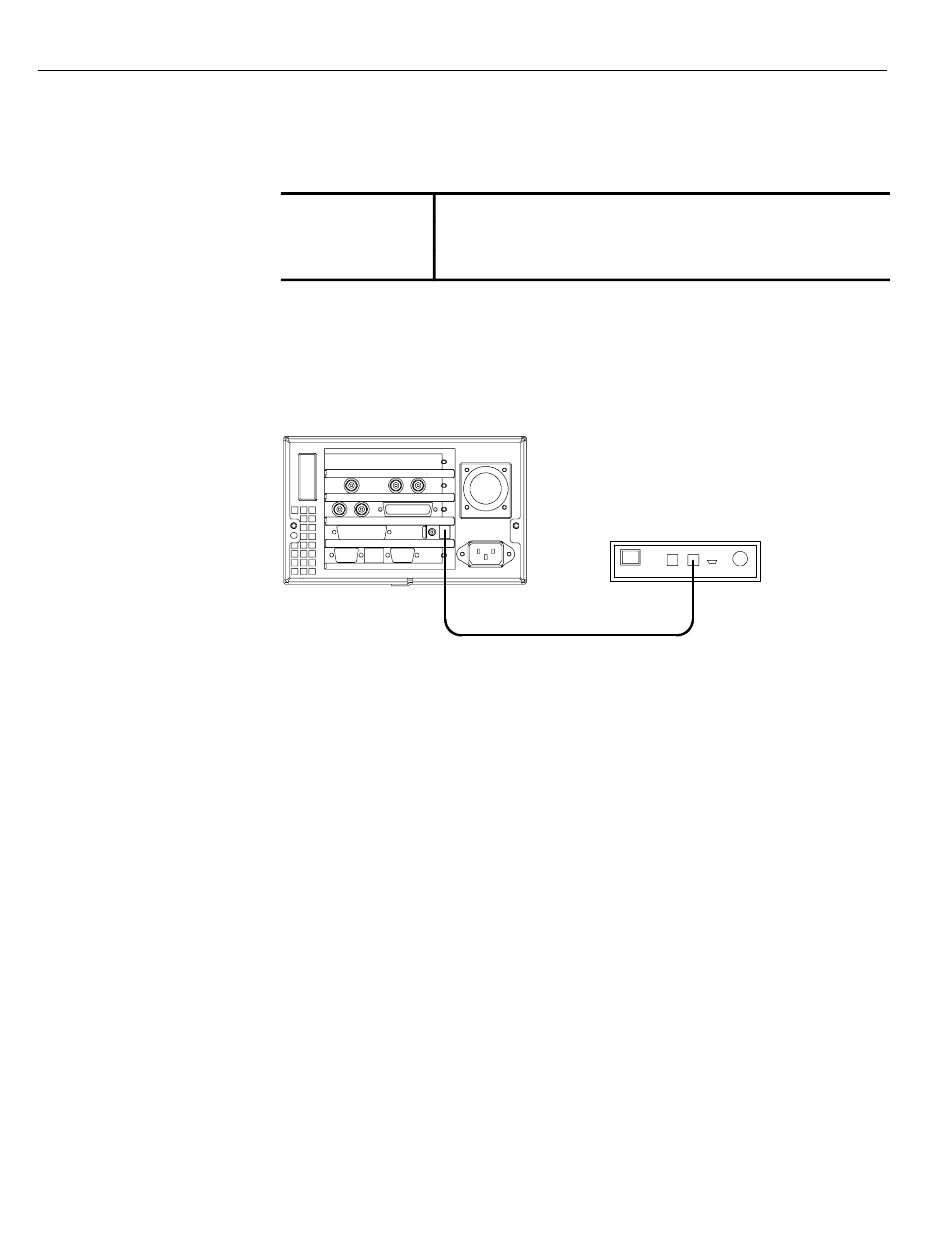

Figure 3-13: Equipment connection for checking the IEEE1394b interface
2. Select Play > Minimize to minimize the RTX100A application.
3. Power on the IEEE1394b hard disk drive.
4. Double-click the My Computer icon on the Windows desktop to open the
My Computer window.
5. In the Window, verify that the hard disk drive is recognized as the F: (or G:)
drive.
6. Use the windows file copy operation to copy the test40.TRP file on the D:
drive to F: (or G:) drive.
7. Verify that the test40.TRP file is copied to the F: (or G:) drive correctly.
8. Delete the test40.TRP file from the F: (or G:) drive.
9. Power off the IEEE1394b hard disk drive.
This completes the RTX100A performance verification.
IEEE1394b hard disk drive
IEEE1394b cable
