Figure 5-5: Guide To Removal Procedures; Access Procedure - Tektronix RTX100A Service Manual

Removal and Installation Procedures

Access Procedure

Locate the module to
be removed in
Figure 5-2 to 5-4.
Procedures for External Modules
Is
Yes
the module
in Figure
5-2?
No
Do the procedures,
Cabinet and Right and Left
Covers on page 5-15.
Procedures for Board Modules
Is
Yes
the module
in Figure
5-3 ?
No

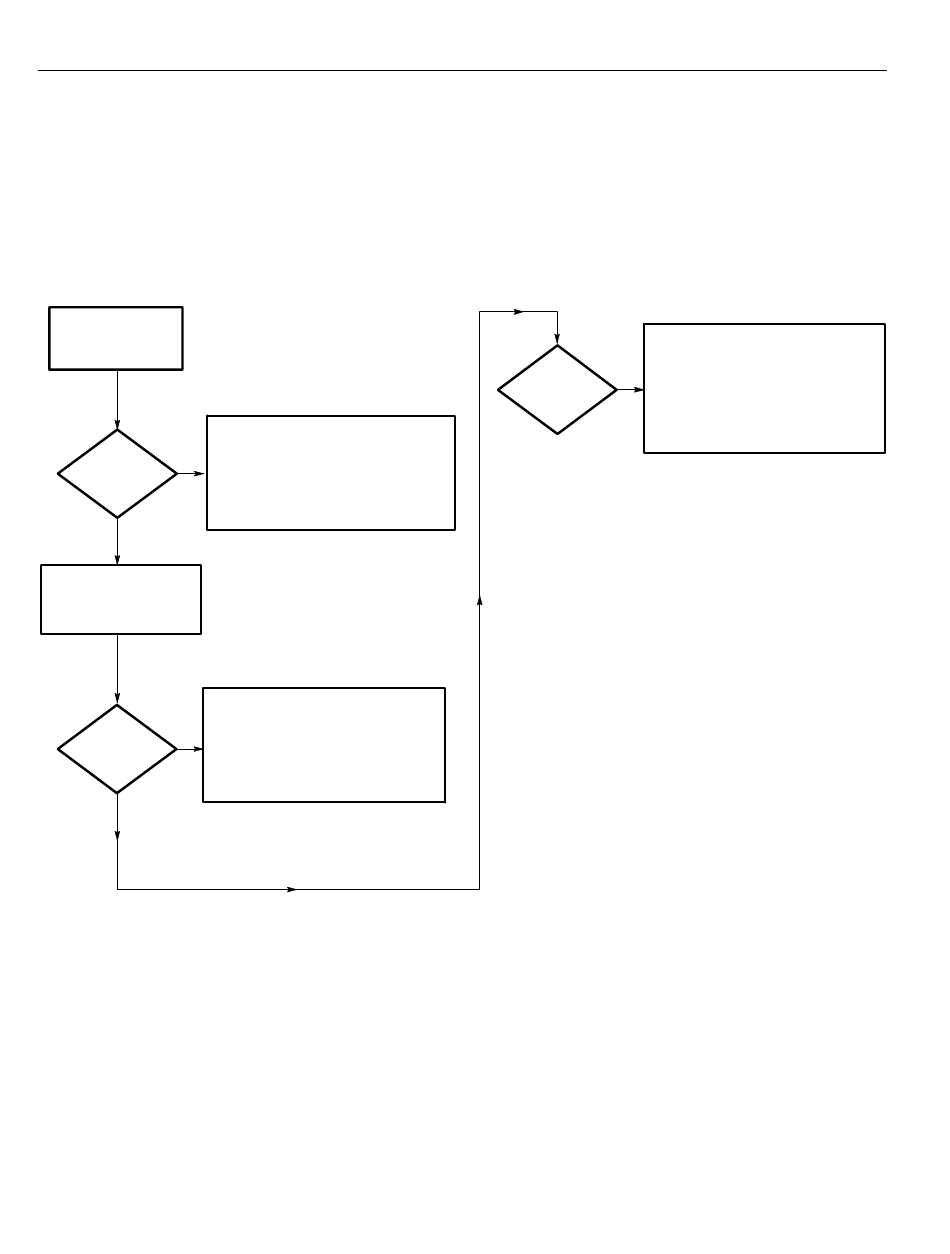

Figure 5-5: Guide to removal procedures

5-14
When you have identified the module to be removed for service, read General
Instructions found on page 5-8. Then use the flowchart in Figure 5-5 to
determine which procedures to use for removing the module. The removal
procedures end with installation instructions.
Cabinet p.5-15
Right-side cover p.5-16
Left-side cover p.5-16
Front panel unit p.5-18
Front panel assembly p.5-19
A150 RF Output board p.5-23
A12 Main board p.5-23
CPU board p.5-23
A20 PCI Backplane board p.5-24
Printer connector p.5-25
Is
Yes
the module
in Figure
5-4?
RTX100A ISDB-T RF Signal Generator Service Manual
Procedures for Internal Modules
DVD drive
Hard disk drive
Internal and external fans
12 V main power supply
A40 AC Distributer board
RFI filter
p.5-26
p.5-27
p.5-29
p.5-31
p.5-31
p.5-32
