Removal and Installation Procedures

General Instructions

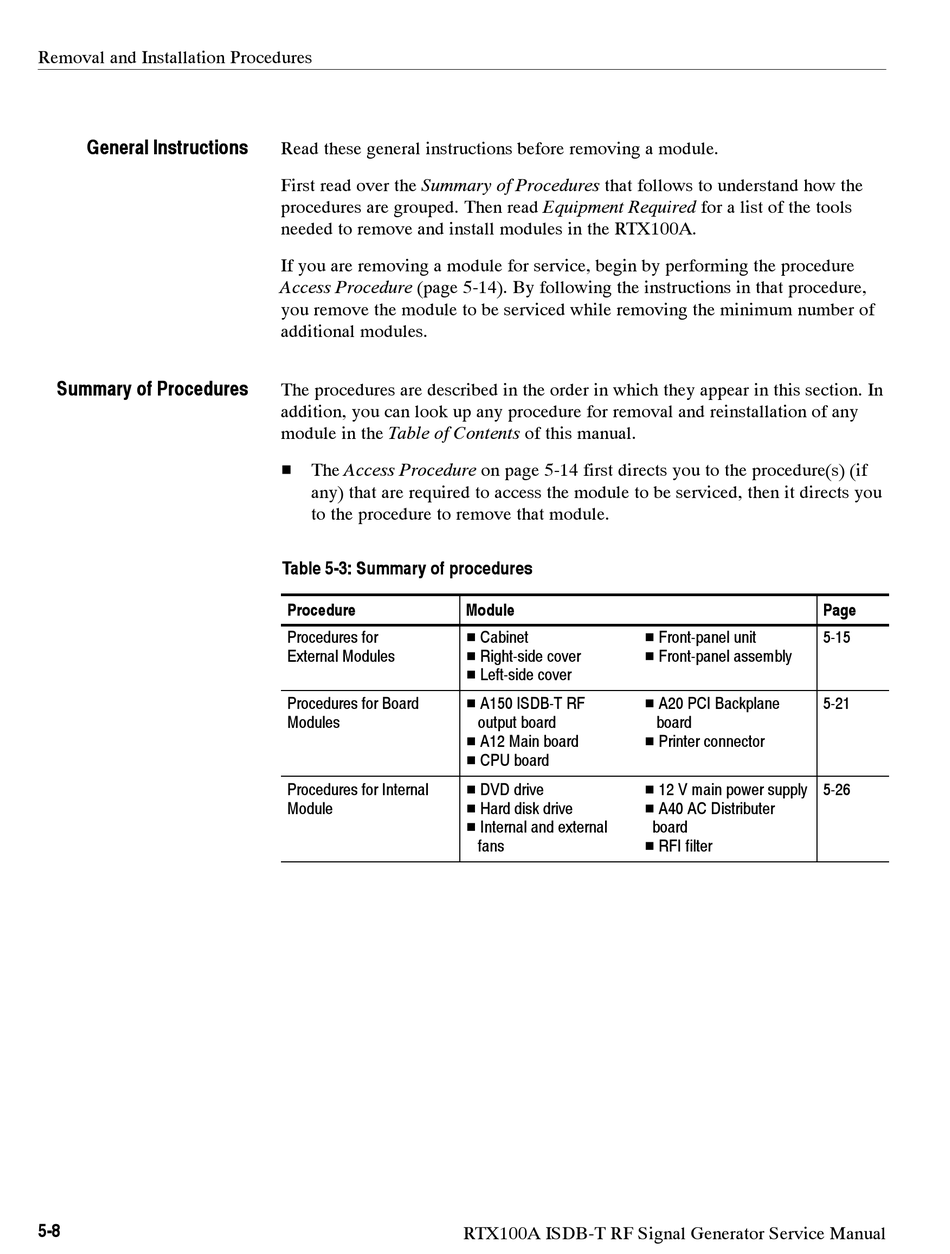

Summary of Procedures

5-8

Read these general instructions before removing a module.

First read over the Summary of Procedures that follows to understand how the

procedures are grouped. Then read Equipment Required for a list of the tools

needed to remove and install modules in the RTX100A.

If you are removing a module for service, begin by performing the procedure

Access Procedure (page 5-14). By following the instructions in that procedure,

you remove the module to be serviced while removing the minimum number of

additional modules.

The procedures are described in the order in which they appear in this section. In

addition, you can look up any procedure for removal and reinstallation of any

module in the Table of Contents of this manual.

H The Access Procedure on page 5-14 first directs you to the procedure(s) (if

any) that are required to access the module to be serviced, then it directs you

to the procedure to remove that module.
