RTX100A ISDB-T RF Signal Generator Service Manual
Required Equipment. Most modules in this RTX100A can be removed with a
screwdriver handle mounted with a size T-10 Torx screwdriver tip. Use this tool
whenever a procedure step instructs you to remove or install a screw unless a
different size screwdriver is specified in that step. All equipment required to
remove and reinstall each module is listed in the first step of its procedure.

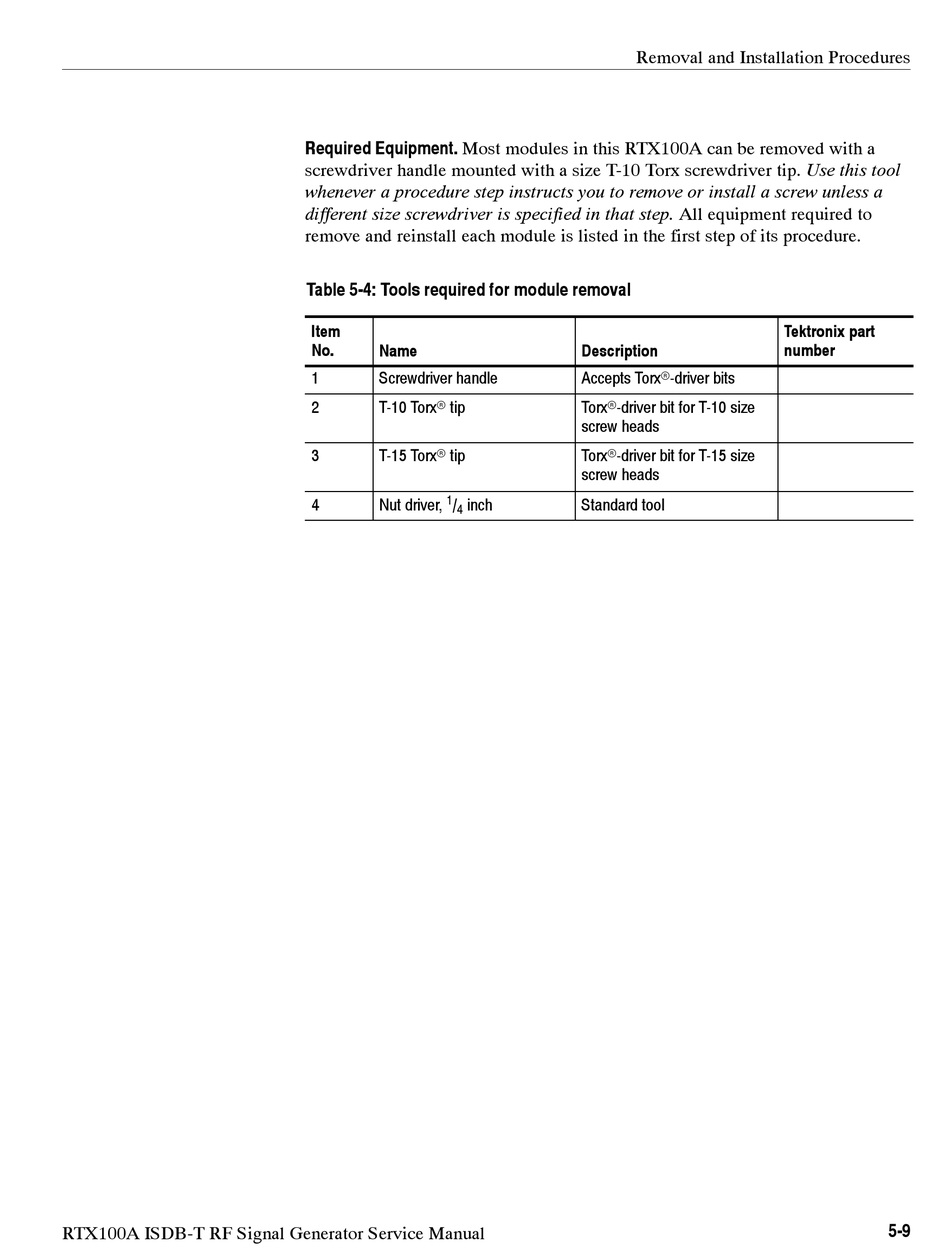

Table 5-4: Tools required for module removal

Item
No.
Name
1 Screwdriver handle
2 T-10 Torxr tip
3 T-15 Torxr tip
1
4 Nut driver, / inch
4
Removal and Installation Procedures
Description
Accepts Torxr-driver bits
Torxr-driver bit for T-10 size
screw heads
Torxr-driver bit for T-15 size
screw heads
Standard tool
Tektronix part
number
5-9
