RTX100A rear panel

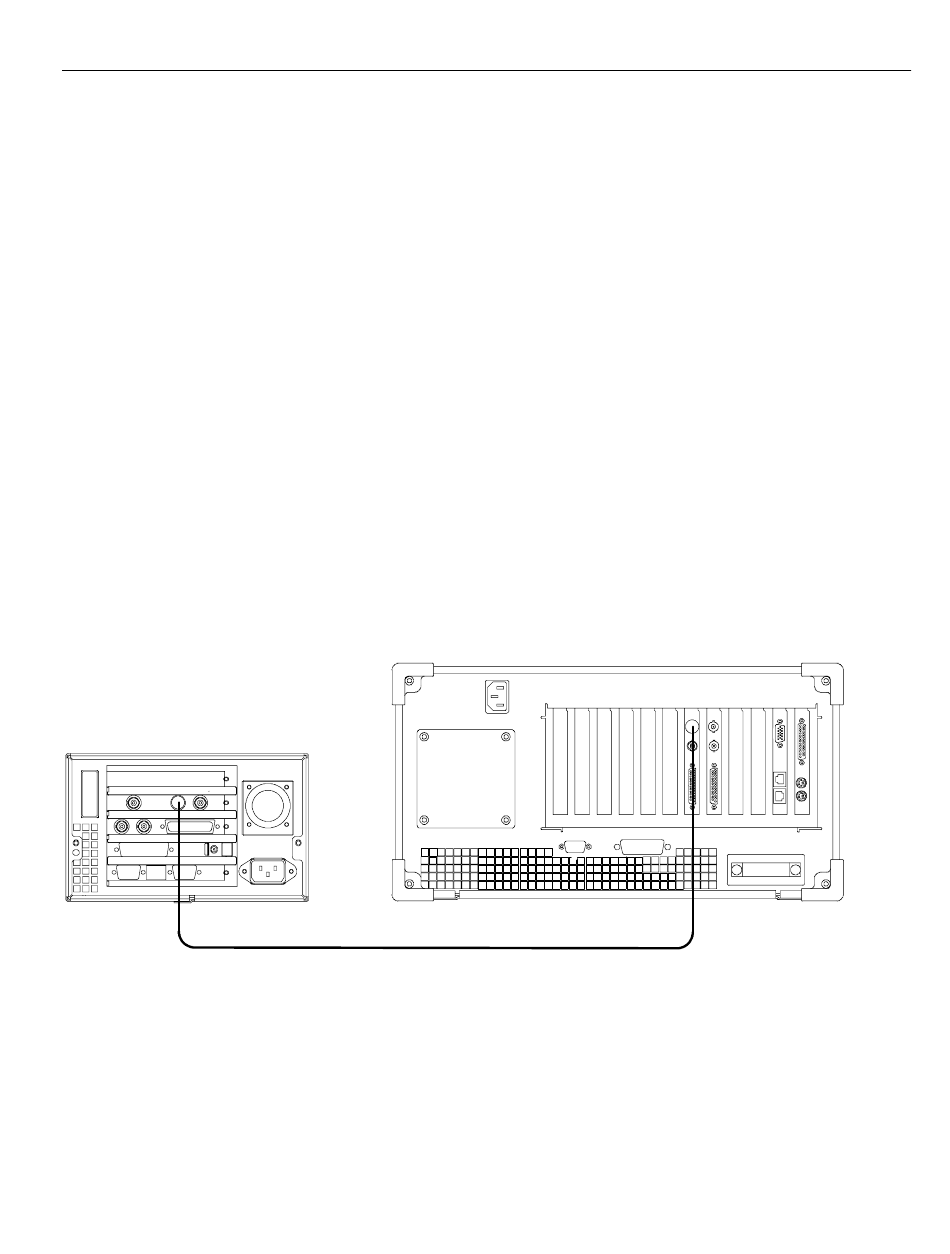

Figure 3-7: Equipment connection for checking the record operation- ASI interface

RTX100A ISDB-T RF Signal Generator Service Manual
10. On the RTX100A, make the following settings:
Play menu
Clock . . . . . . .
Update . . . . . .
Source . . . . . .
11. Press the PLAY button on the RTX100A to start playing the test40.TRP.
12. Verify that the hierarchic view is displayed on the MPEG analyzer screen. In
addition, verify that the bit rate is 214 Mbps and the packet size is 188
bytes.
13. Click the Record button on the MPEG Player application to record the file.
14. After recording is completed, press the STOP button on the RTX100A.
15. Disconnect the 75 Ω BNC cable from the RTX100A and MPEG analyzer.
Checking the Record Operation.
16. Use the 75 Ω BNC cable to connect the ASI In connector on the RTX100A
to the ASI/SMPTE Out connector on the MPEG analyzer. See Figure 3-7.
MPEG analyzer rear panel (MTS430)
75 Ω BNC cable
Data Rate: 214 Mbps
Off
RAM
Performance Verification
3-15
