Figure 3-6: Equipment Connections For Checking The Play Operation- Asi Interface - Tektronix RTX100A Service Manual

Performance Verification
RTX100A rear panel

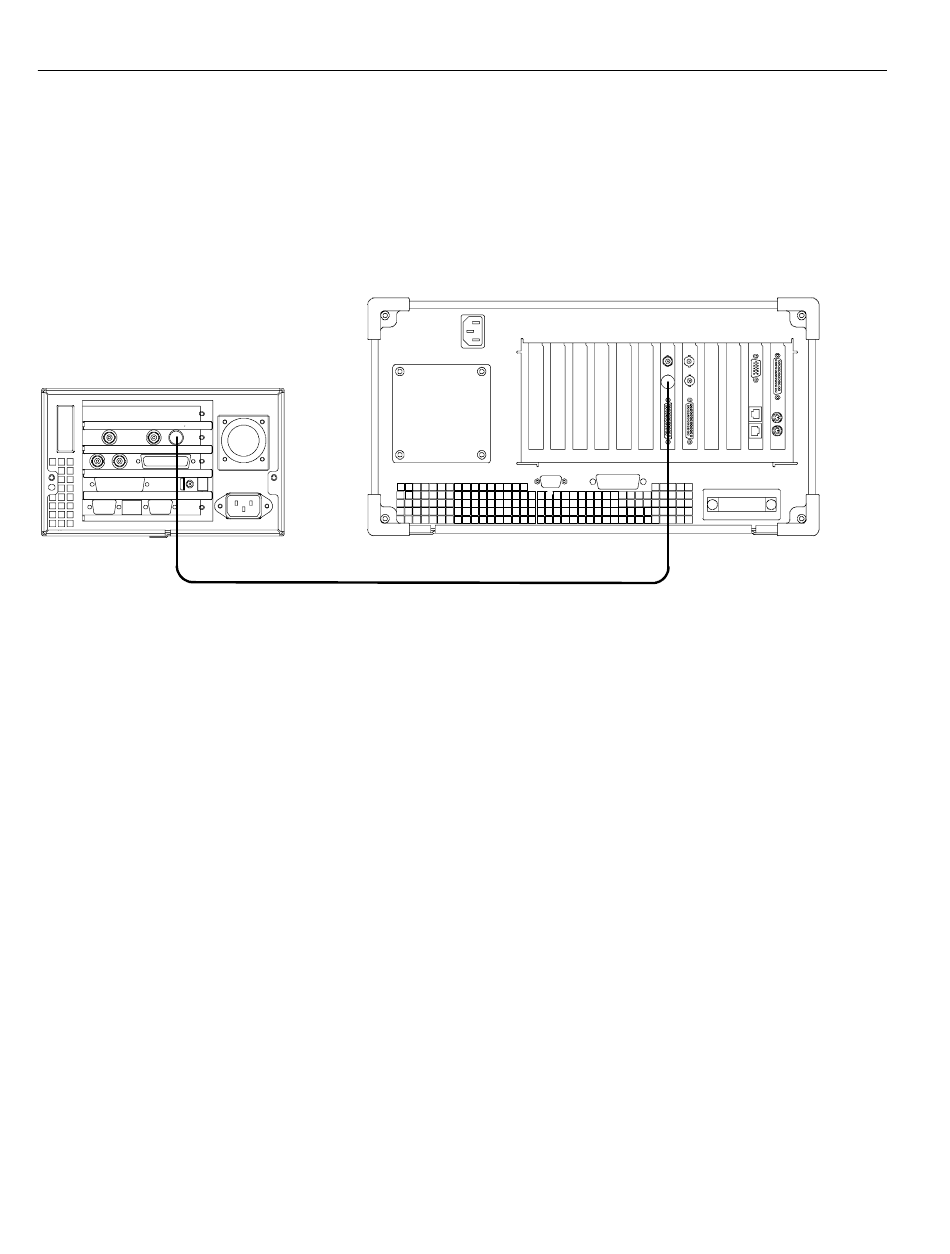

Figure 3-6: Equipment connections for checking the play operation- ASI interface

3-14
Checking the Play Operation.
6. Disconnect the BNC cable from the 75 Ω signal adapter on the oscilloscope,
and then connect the cable to the ASI/SMPTE In connector on the MPEG
analyzer. See Figure 3-6.
MPEG analyzer rear panel (MTS430)
75 Ω BNC cable
7. Start the MPEG Player application on the MPEG analyzer.
8. Set the application to the Record mode.
9. Set the MPEG analyzer settings as indicated below:
Record
Source . . . . . .
Target . . . . . .
SPI/ASI/310M
Input Port . . .
BNC Port . . .
File
Save Mode . .
Save . . . . . . . .
SPI/ASI/310M
RAM, Record Size: 100 MB
BNC
ASI
Over write
E:\MTXRTX_Test streams\Record_Files\
ASI214Mbps.trp
RTX100A ISDB-T RF Signal Generator Service Manual
