Tektronix RTX100A Service Manual page 139

Com
VGA
LAN
CPU Board
Printer
Card Edge
IEEE1394b
5 V Main Power Supply
5 V Sub Power
Supply
A40 AC Distributer Board
RTX100A ISDB-T RF Signal Generator Service Manual
Ext ATX Power
Ext Key Board
Front Bezel
USB
Com
Hard Disk Drive
External
Fan
SPI In/Out
Trig In/Out
Clock/Ref In
A50 Disk I/F
DVD Drive
Board
A20
PCI Back Plane Board
Internal
Fan A30 Front Panel Board
Inverter
A35
Power Switch Board
A12 Main Board A150 ISDB-T RF
OUTPUT Board
Local
Bus
Card Edge Card Edge
LCD Display
USB
USB

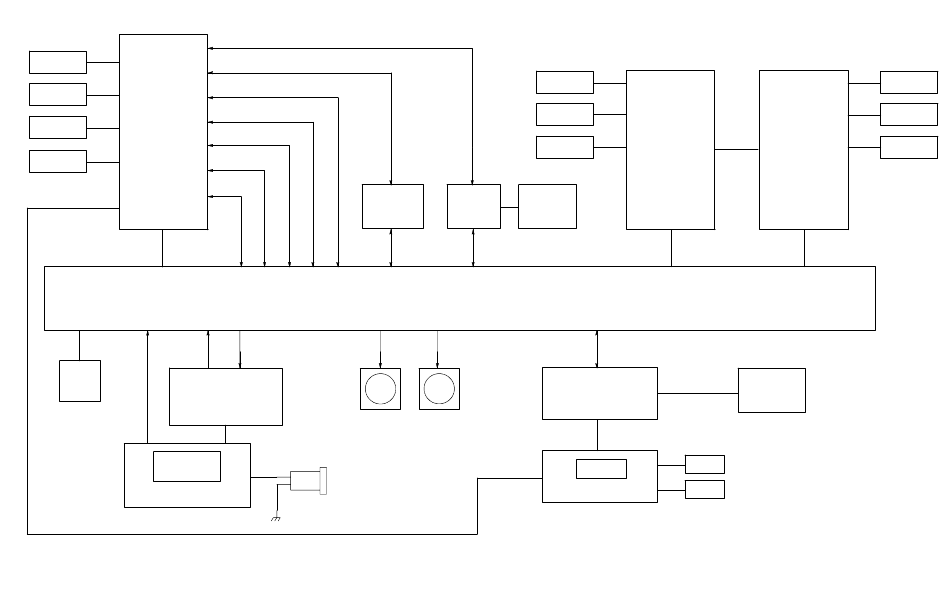

Figure 7-1: RTX100A block diagram
ASI In
ASI/Out
RF Out
7- 3
