Performance Verification
ASI Interface
RTX100A rear panel

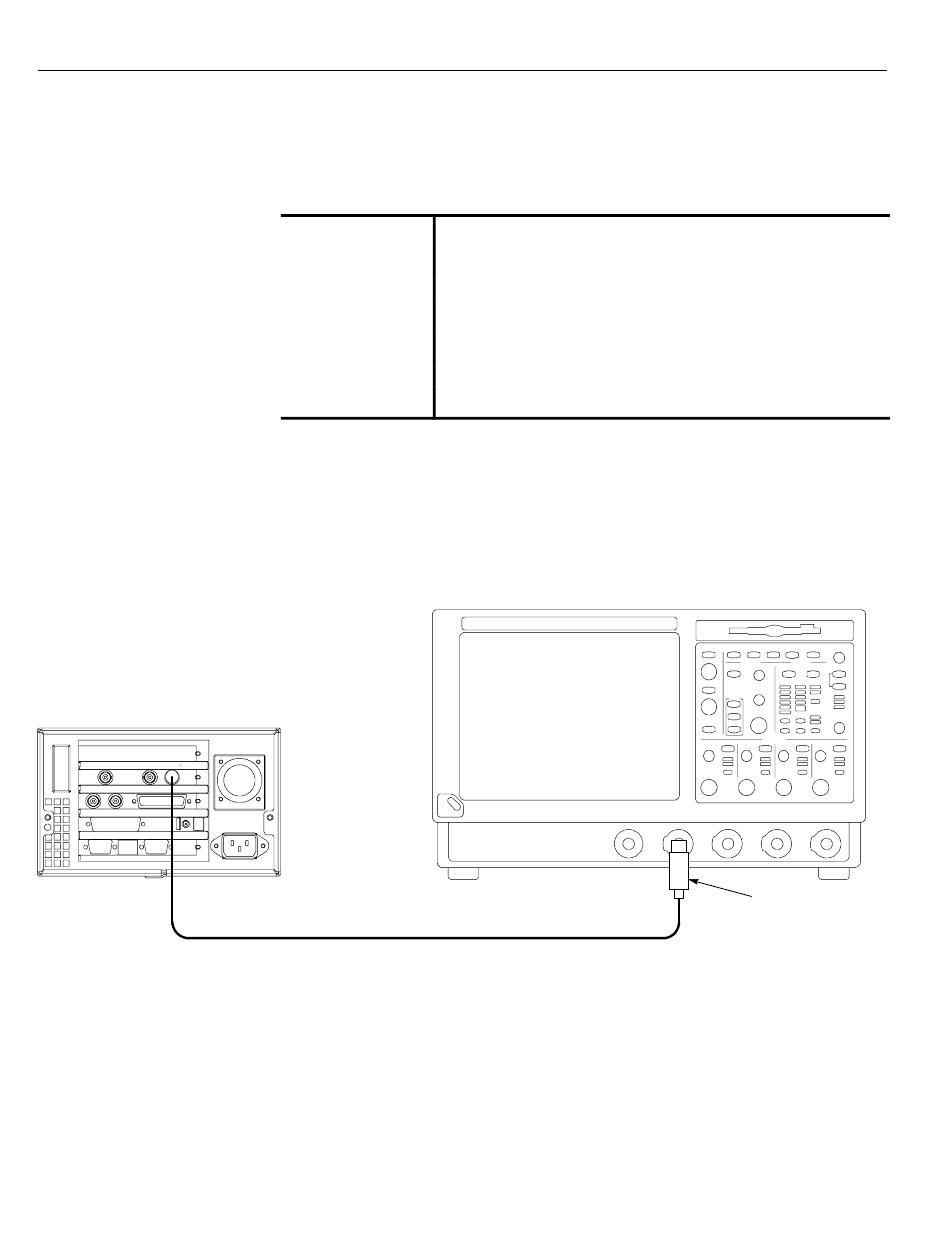

Figure 3-5: Equipment connection for checking the output signal- ASI interface

3-12
This test verifies that transport stream data is correctly played from and is
recorded through the ASI interface on the RTX100A.
Equipment
q p
MPEG analyzer
required
i d
Oscilloscope
MPEG-2 measurement decoder
Video monitor
Two 75 Ω BNC cables
75 Ω signal adapter
test40.TRP file
Checking the Output Signal.
1. Use the 75 Ω BNC cable and the 75 Ω signal adapter to connect the ASI Out
connector on the RTX100A to the oscilloscope CH1 input. See Figure 3-5.
Oscilloscope (TDS5104B)
75 Ω BNC cable
RTX100A ISDB-T RF Signal Generator Service Manual
75 Ω signal adapter
