SPI Interface
RTX100A rear panel

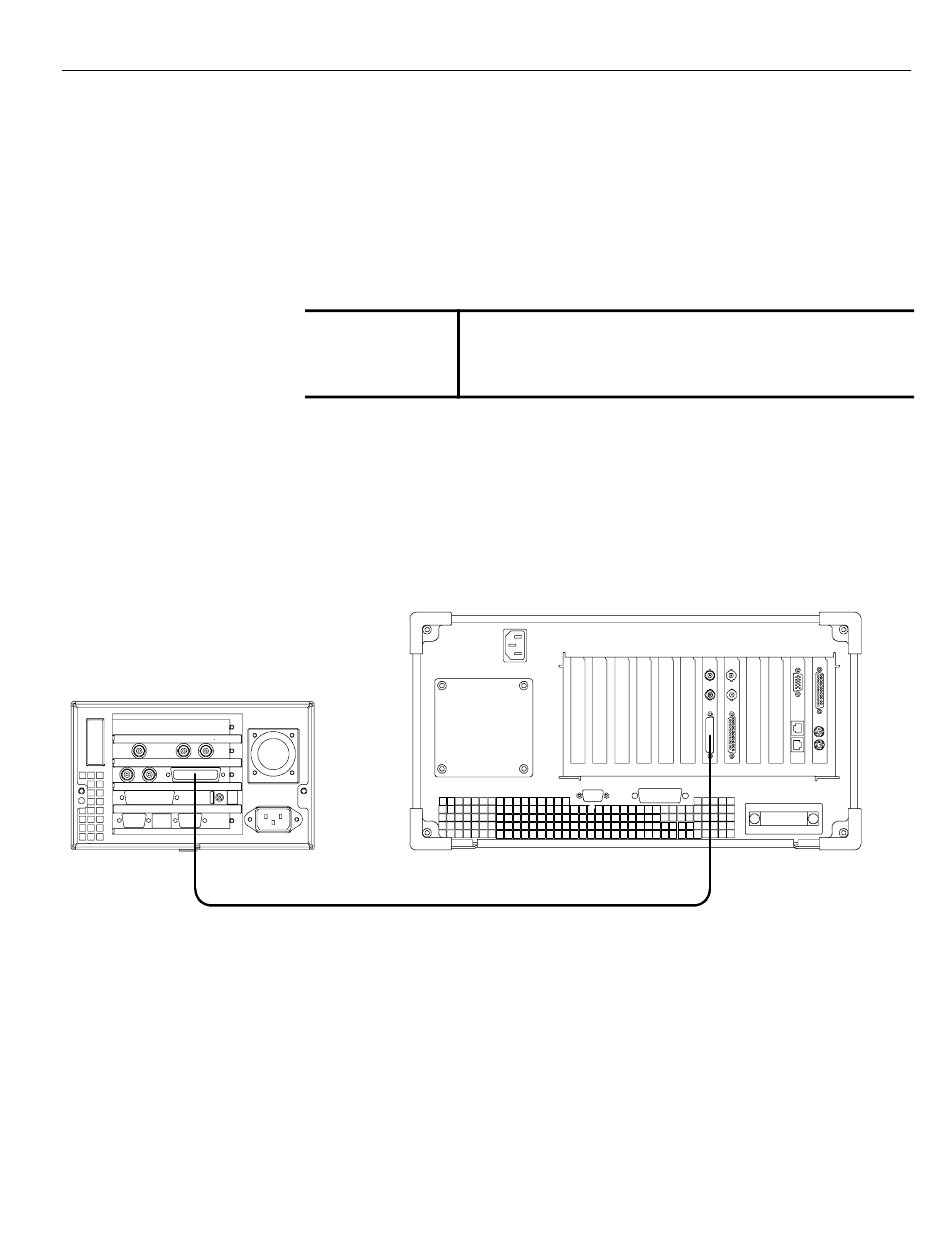

Figure 3-3: Equipment connection for checking the play operation- SPI interface

RTX100A ISDB-T RF Signal Generator Service Manual
10. In the Ext Trigger BNC dialog box, change BNC IN/OUT to Input.
11. Disconnect the BNC cable from the RTX100A and frequency counter.
This test verifies that transport stream data is correctly played from and recorded
through the SPI In/Out connector on the RTX100A.
Equipment q p MPEG analyzer
required i d
Parallel interface cable
test40.TRP file
Checking the Play Operation.
1. Use the parallel interface cable to connect the SPI In/Out connector on the
RTX100A to the DVB SPI In connector on the MPEG analyzer. See
Figure 3-3.
MPEG analyzer rear panel (MTS430)
Parallel interface cable
2. Start the MPEG Player application on the MPEG analyzer.
3. Set the application to the Record mode.
Performance Verification
3-5
