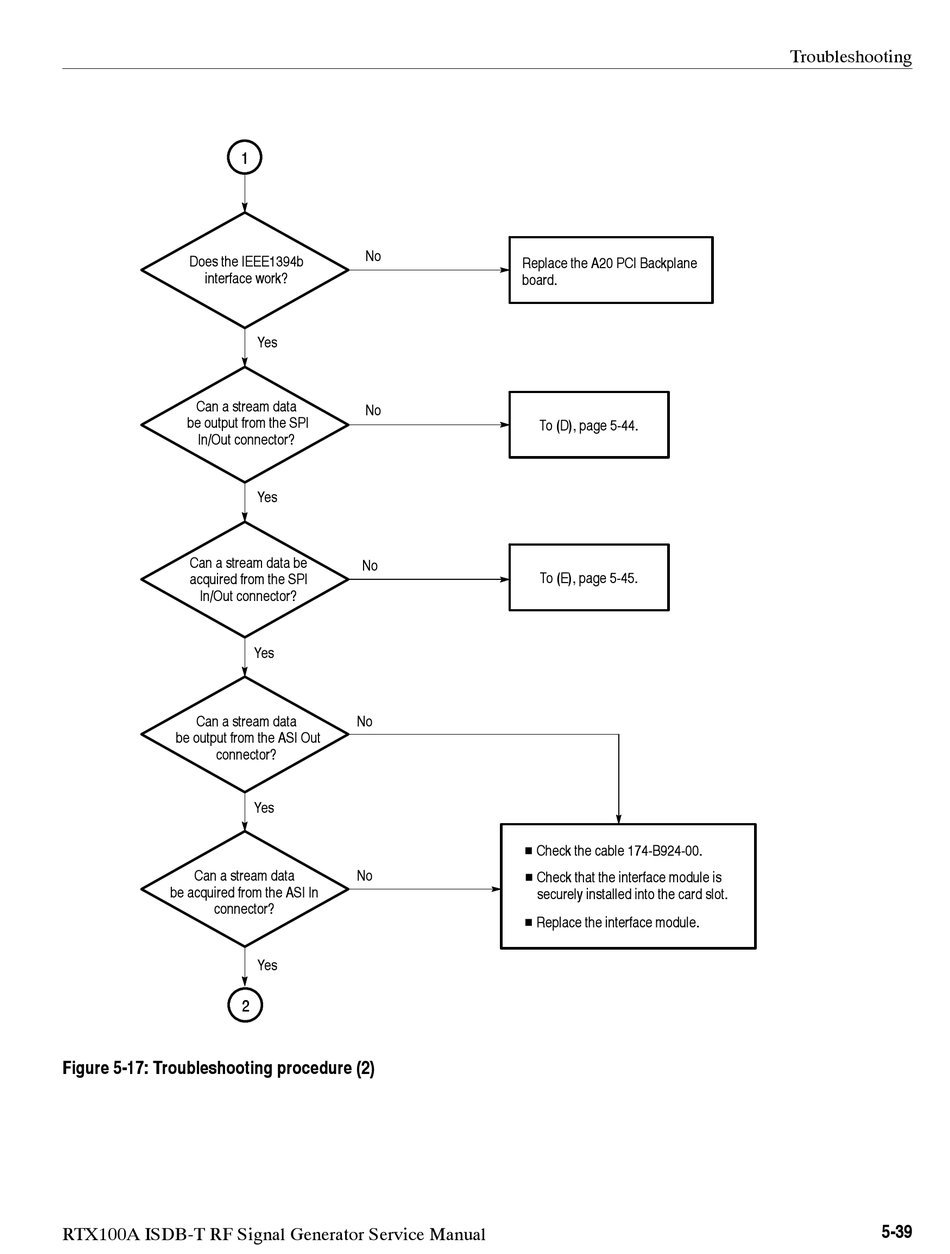

Figure 5-17: Troubleshooting Procedure (2) - Tektronix RTX100A Service Manual

1
Does the IEEE1394b
interface work?
Can a stream data
be output from the SPI
In/Out connector?
Can a stream data be
acquired from the SPI
In/Out connector?
Can a stream data
be output from the ASI Out
connector?
Can a stream data
be acquired from the ASI In
connector?
2

Figure 5-17: Troubleshooting procedure (2)

RTX100A ISDB-T RF Signal Generator Service Manual
No
Yes
No
Yes
No
Yes
No
Yes
No
Yes
Replace the A20 PCI Backplane
board.
To (D), page 5-44.
To (E), page 5-45.
H Check the cable 174-B924-00.
H Check that the interface module is
securely installed into the card slot.
H Replace the interface module.
