Figure 3-9: Fifth Equipment Connection For Checking The Asi - Tektronix RTX100A Service Manual

Performance Verification
RTX100A rear panel

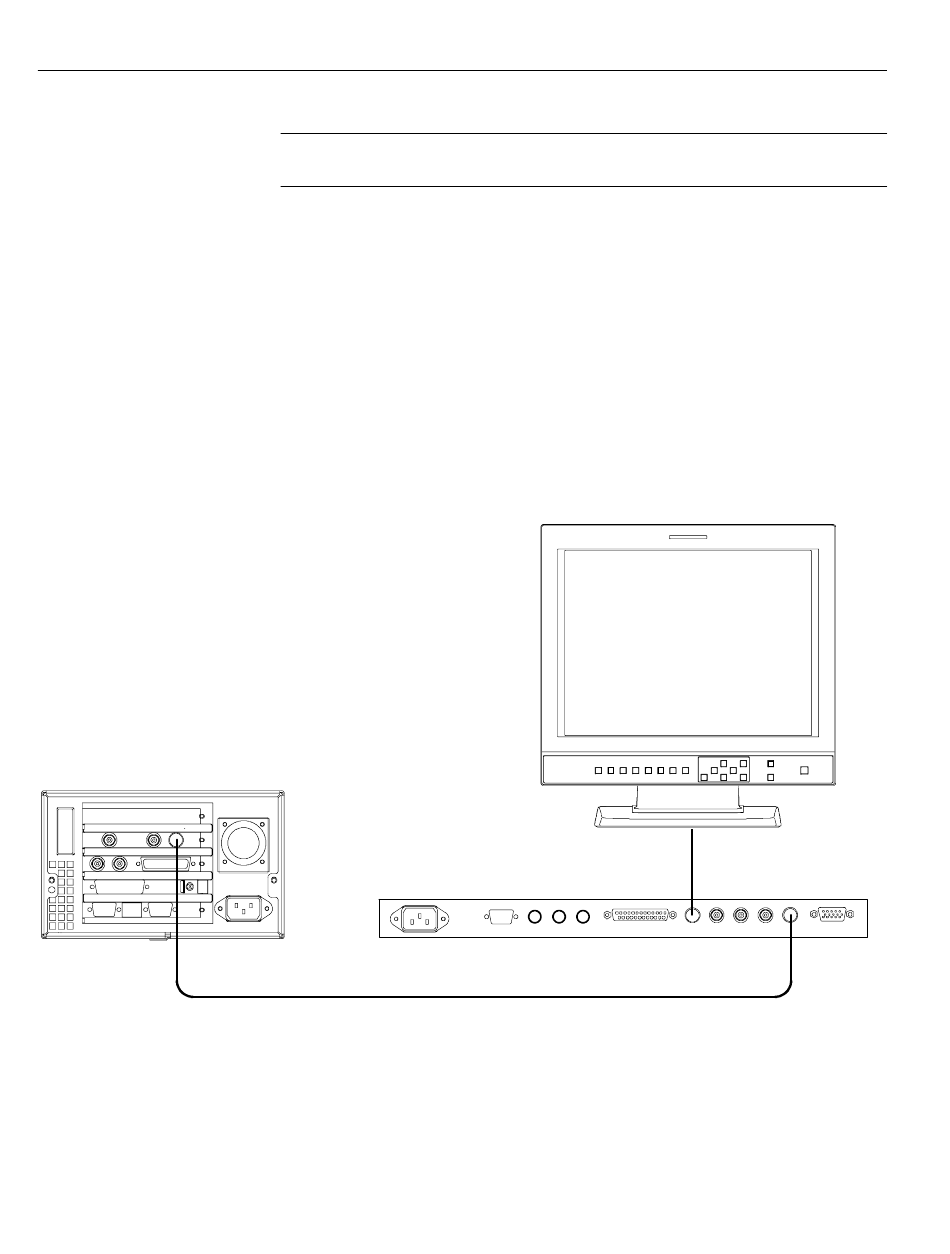

Figure 3-9: Fifth equipment connection for checking the ASI interface
3-18
NOTE. Ignore Program 3 and PID 120 (0x78) errors in the hierarchical view
because these are caused by the original test40.TRP file.
38. Press the STOP button on the RTX100A to stop the stream output.
39. Disconnect the 75 Ω BNC cable from the RTX100A and MPEG analyzer.
Checking a Moving Picture.
40. Use a 75 Ω BNC cable to connect the ASI Out connector on the RTX100A
to the TS ASI connector on the MPEG-2 measurement decoder. See
Figure 3-9.
41. Use the 75 Ω BNC cable to connect the SER75 Ω connector on the MPEG-2
measurement decoder to the SDI input on the video monitor. See Figure 3-9.
MPEG-2 measurement decoder rear panel (DVMD)
75 Ω BNC cable
42. Set TS INPUT to SERIAL REAR on the decoder.
43. Select Play > Update > Off on the RTX100A.
Video monitor (LMD-1420+BKM-320D)
RTX100A ISDB-T RF Signal Generator Service Manual
75 Ω BNC cable
