Ttl (12 V Supply Voltage) - Bosch Rexroth IndraDrive CsDrive System with HCS01 Project Planning Manual

DOK-INDRV*-HCS01******-PR05-EN-P
Rexroth IndraDrive CsDrive Systems with HCS01

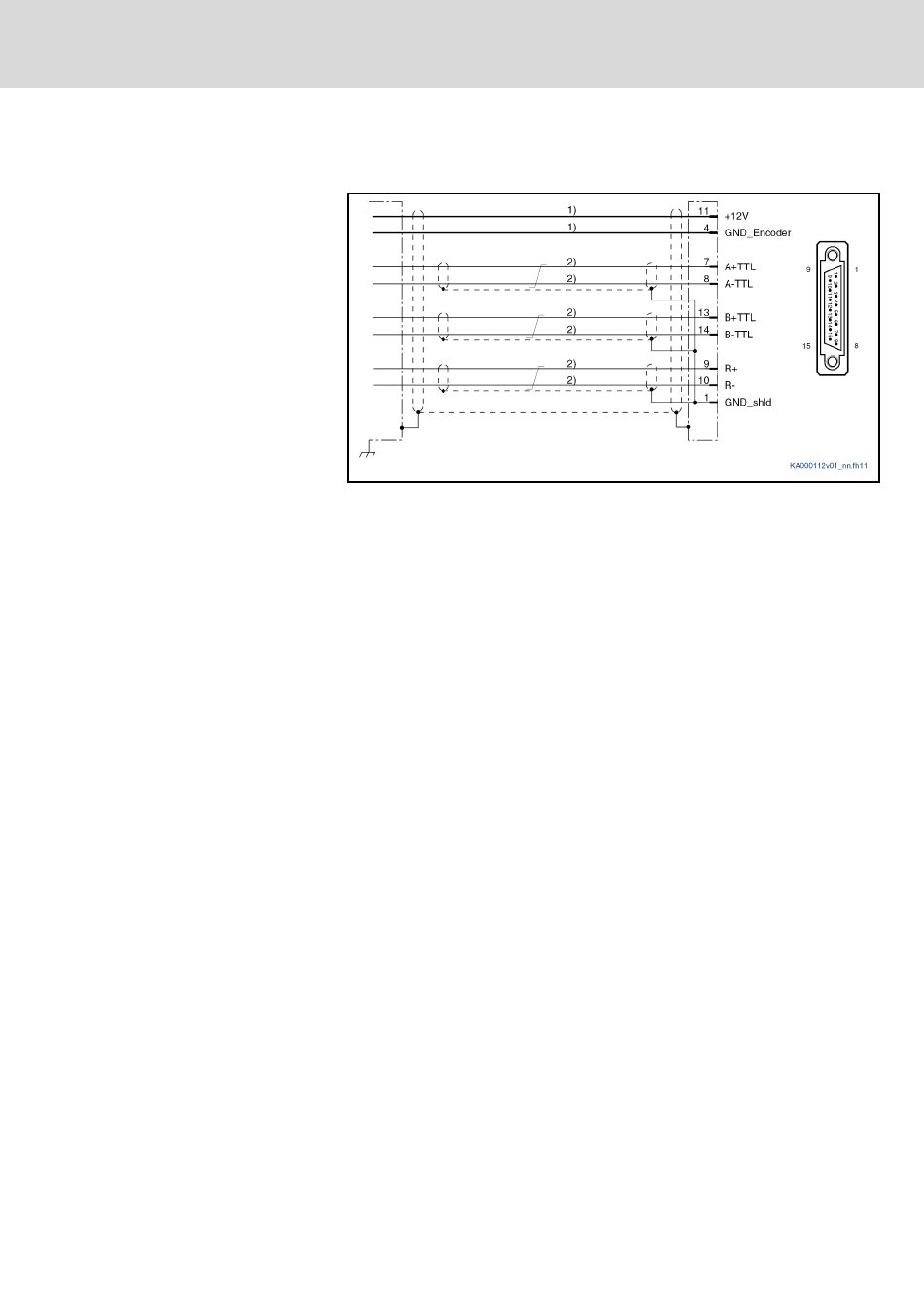

Connection diagram
Power supply
Cable length

TTL (12 V supply voltage)

See the connection diagram for how to connect the encoder system.
1) Line cross section ≥ 0.5 mm²; observe allowed encoder cable
length
2) Line cross section ≥ 0.14 mm²
Fig. 7-8: TTL encoder system connection diagram
12 V (the voltage is made available via the EC interface)
Technical specification of the power supply: See
on page 195
The maximum allowed cable length depends on several factors: See
"Encoder cable length" on page 197
Bosch Rexroth AG
Technical data of the components
chapter "12 V power supply"
189/341
chapter
