DOK-INDRV*-HCS01******-PR05-EN-P
Rexroth IndraDrive CsDrive Systems with HCS01
7.1.3
ET - Multi-Ethernet
Display elements
Port LED
Diagnostic LED
A
Two unicolor port LEDs
Identification: e.g. H10, H11, H12, H13
B
Multicolor diagnostic LED
Identification: e.g. H24, NET ST

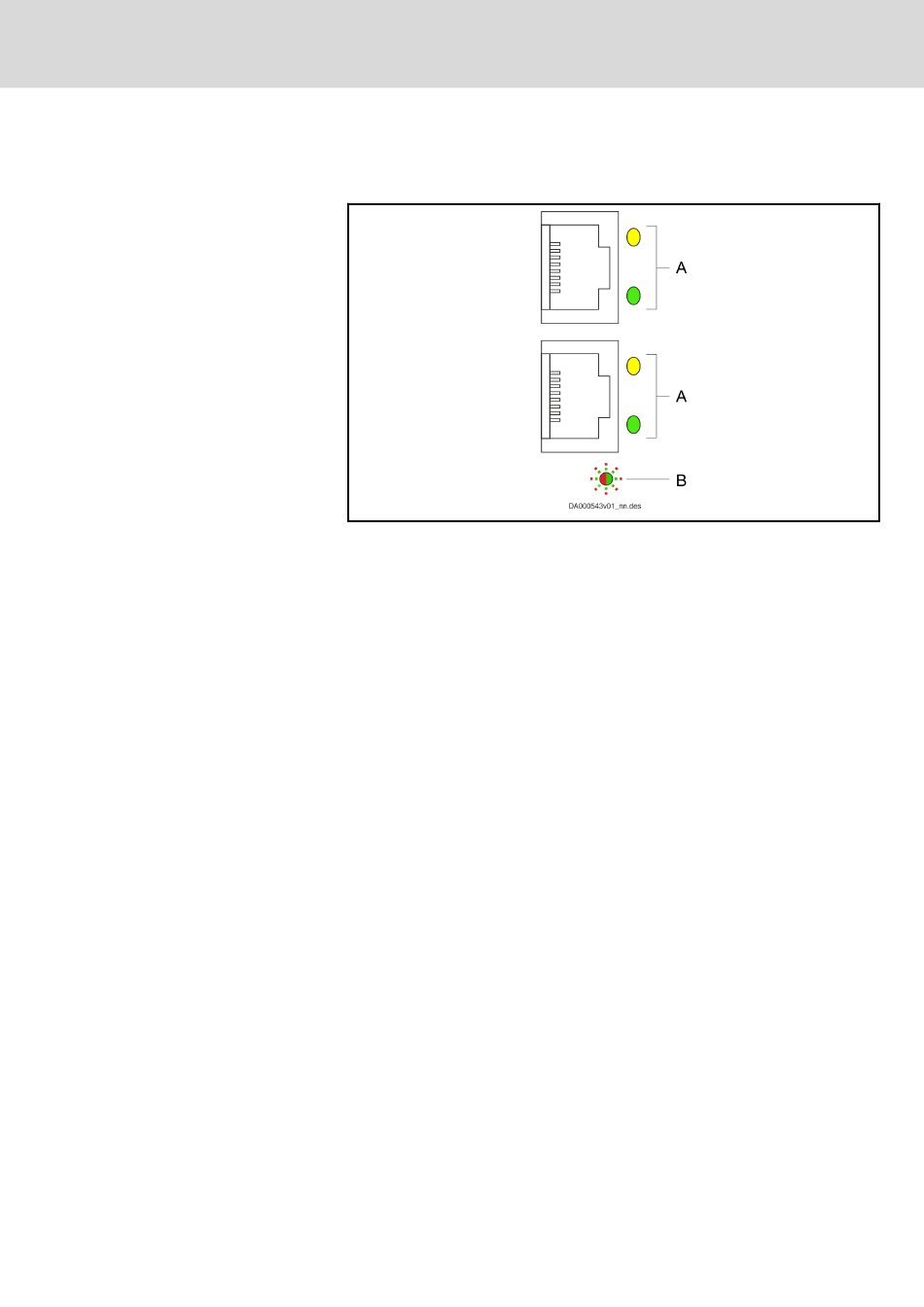

Fig. 7-24:
ET, display elements
The LED display depends on the field bus system.
●
chapter "EtherNet/IP" on page 208
●
chapter "EtherCAT" on page 208
●
chapter "sercos III" on page 208
●
chapter "PROFINET IO" on page 209
●
chapter "EtherNet/IP" on page 210
●
chapter "EtherCAT" on page 211
●
chapter "sercos III" on page 212
●
chapter "PROFINET IO" on page 213
Bosch Rexroth AG
Technical data of the components
207/341
