254/341
Bosch Rexroth AG
Cables, accessories, additional components
Plates for shield connection of cables
HAS09.1-001 Plates for cable diameters 4-13 mm and 8-19 mm
HAS09.1-003 Plates for cable diameters 8-19 mm and 9-28 mm

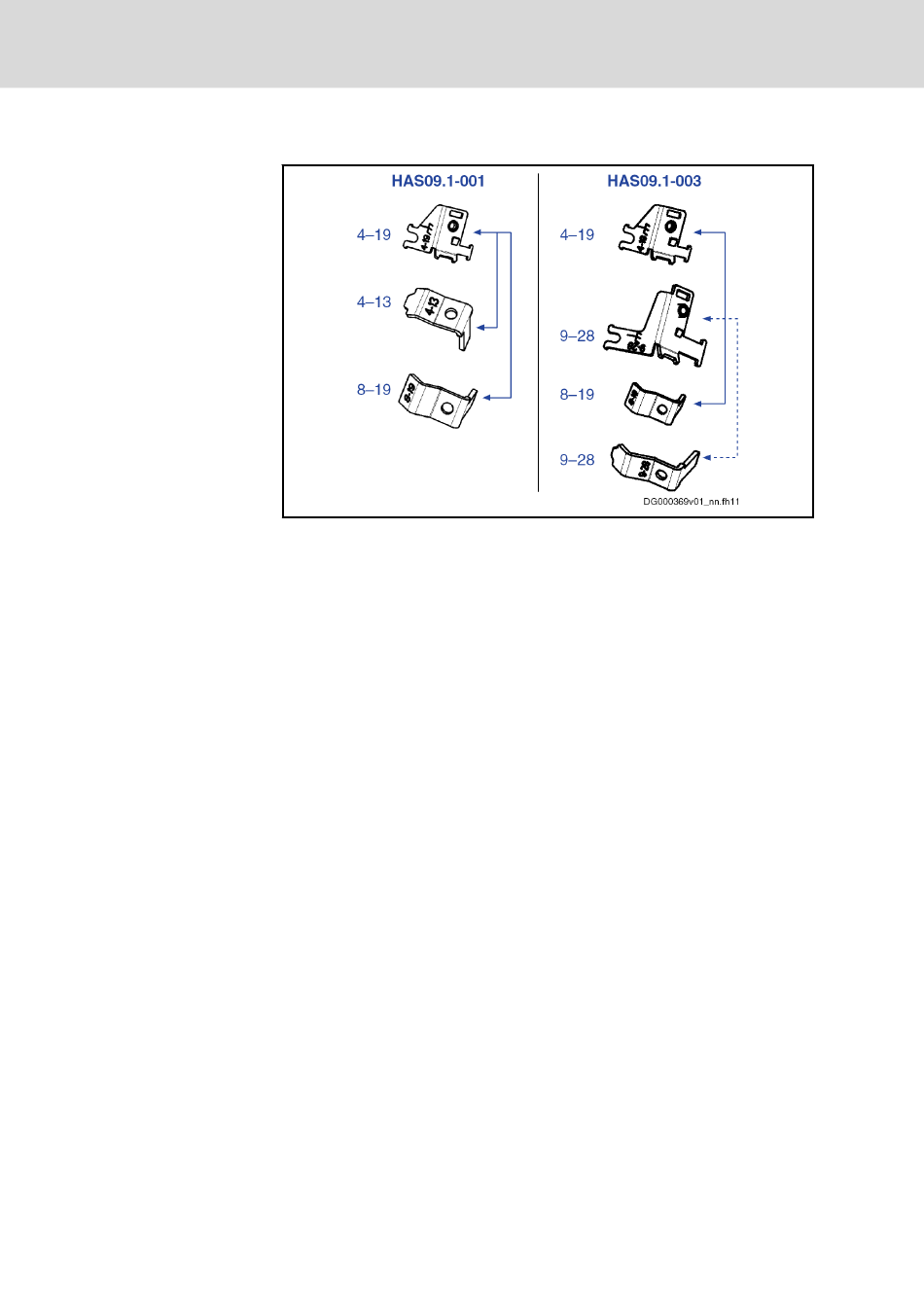

Fig. 8-3:
HAS09; plates
DOK-INDRV*-HCS01******-PR05-EN-P
