DOK-INDRV*-HCS01******-PR05-EN-P
Rexroth IndraDrive CsDrive Systems with HCS01
Mechanical Data NFE / NFD
Allowed Mounting Positions
NFE02.1
Type
NFE02.1-230-008 (with 3 terminal connectors)

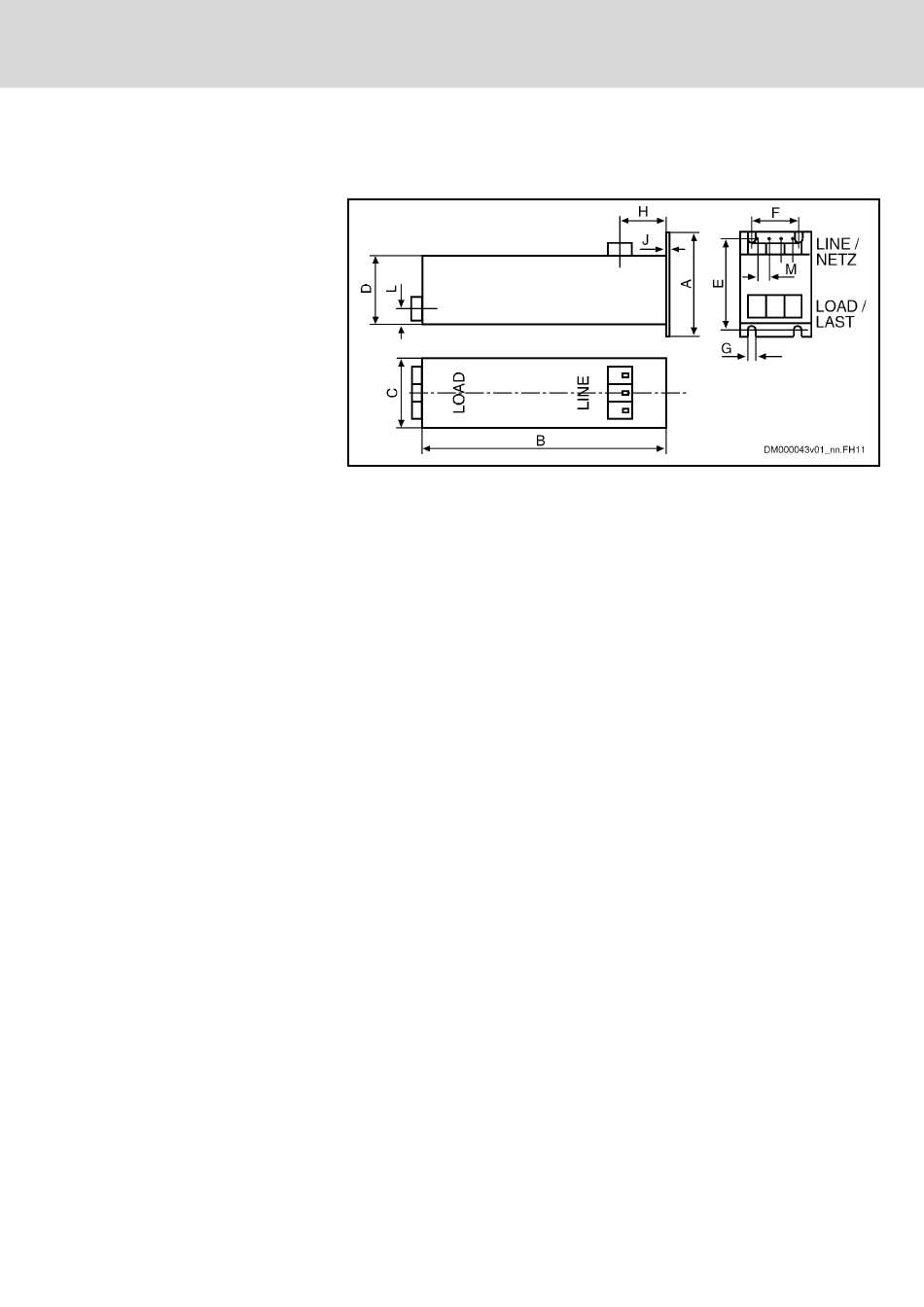

Fig. 8-45:
Single-Phase Filter NFE02.1 for Drives
Every mounting position is allowed.
Bosch Rexroth AG
Cables, accessories, additional components
293/341
