Rexroth IndraDrive CsDrive Systems with HCS01
Scope of Supply

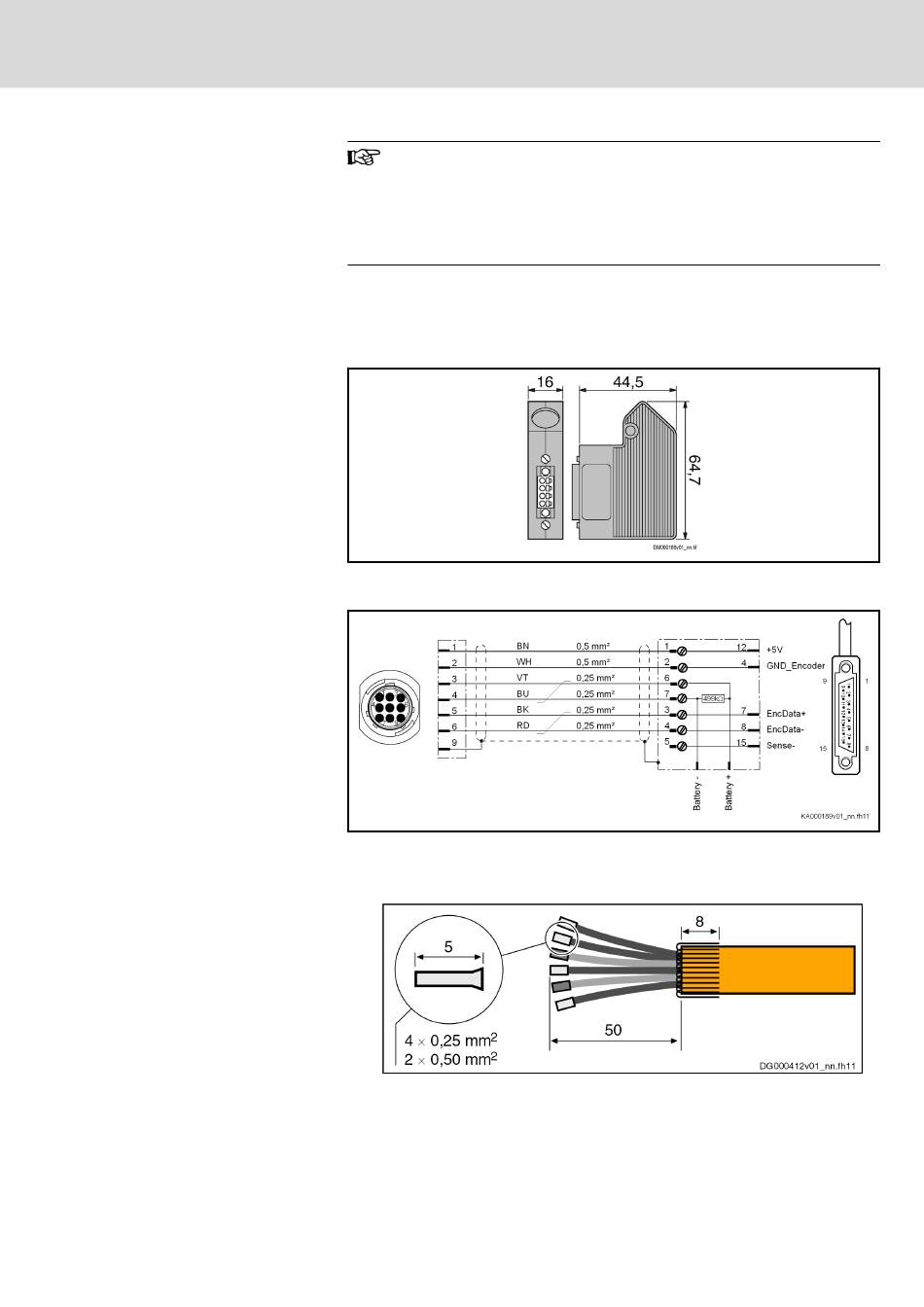

Dimensions
Interconnection Diagram
Assembly in Conjunction with Ca‐
ble INK0448
When you connect the RGS0001/K01 connector to an encoder
cable, you must assemble the encoder cable accordingly on the
motor side:
In accordance with the interconnection diagram, connect the bat‐
tery wires for motor-side encoder connection in the connector
(INS0753/C01).
● RGS0001/K01
● Product insert with information on assembly
Fig. 8-29: Dimensions
Fig. 8-30: Interconnection Diagram
1. Assemble cable:
Required ferrules:
● 4 × 0.25 mm²
● 2 × 0.50 mm²
Bosch Rexroth AG
Cables, accessories, additional components
275/341
