X30, Profibus Pb - Bosch Rexroth IndraDrive CsDrive System with HCS01 Project Planning Manual

162/341 Bosch Rexroth AG
Mounting and installation

X30, PROFIBUS PB

Description
Pin Assignment
Shield Connection
Compatibility of the Interface
Recommended Cable Type
Bus Connectors

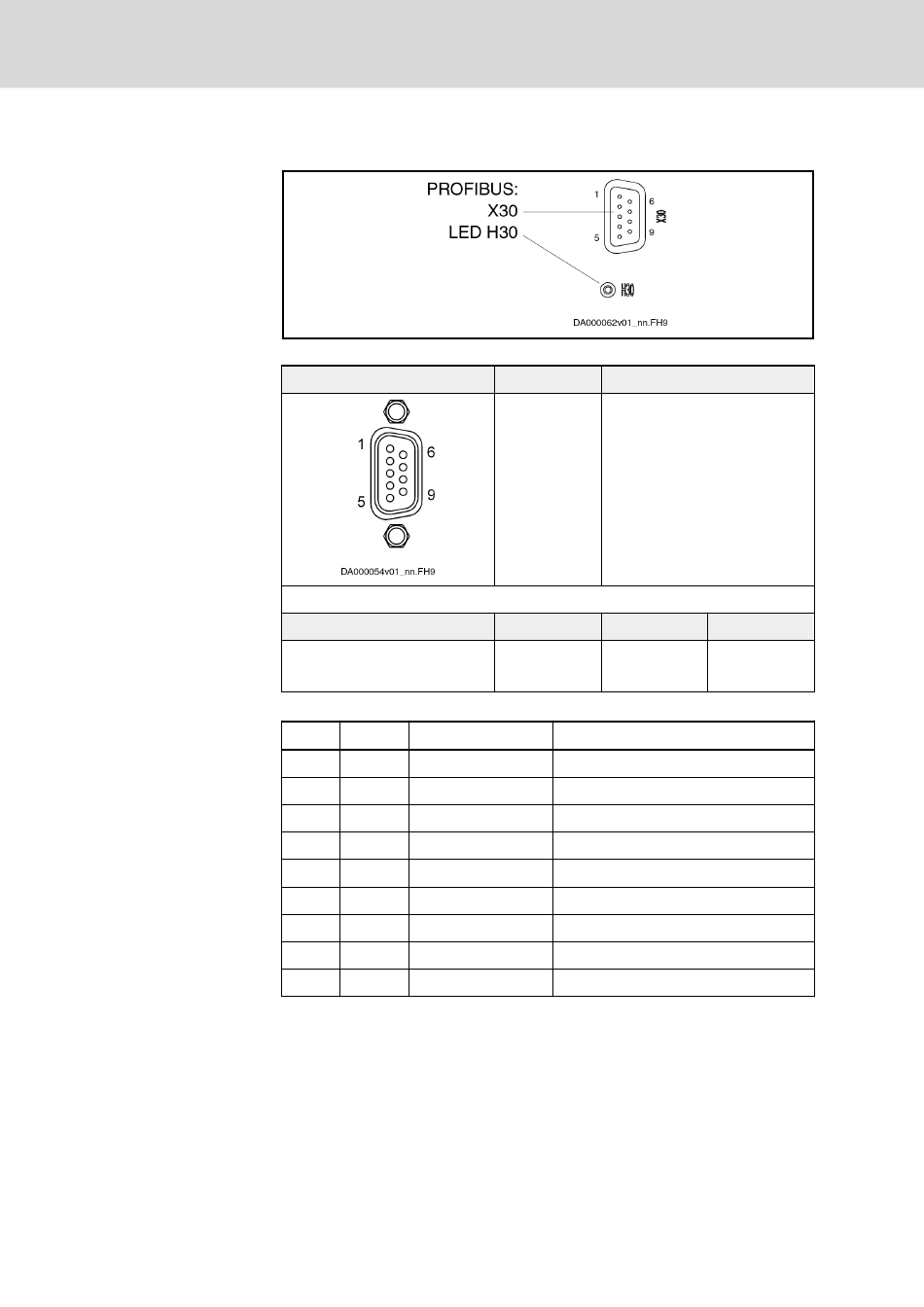

Fig. 6-16: PROFIBUS Interface
View
D-Sub, 9-pin, female
Connection cable
Stranded wire
Tab. 6-25: Function, Pin Assignment, Properties
Pin DIR
1
2
3 I/O RS485+
4 O CNTR-P
5
6 O
7
8 I/O
9
Tab. 6-26: Signal Assignment
Via D-sub mounting screws and metallized connector housing.
According to DIN EN 50 170
According to DIN EN 50 170 - 2, cable type A
The PROFIBUS connectors each have a connectable terminating resistor.
The terminating resistor must always be active at both the first and last bus
node. Carry out the connection as shown in the figures below.
DOK-INDRV*-HCS01******-PR05-EN-P
Rexroth IndraDrive CsDrive Systems with HCS01
Identification
X30
Unit
mm 2
Signal Function
- n. c.
- n. c.
Receive/transmit data-positive
Repeater control signal
0 V 0 V
+5 V Repeater supply
- n. c.
RS485- Receive/transmit data-negative
0V 0 V
Function
PROFIBUS PB
Min. Max.
0,08 0,5
