Microplate Dimensions
Plate Width: short-side width of the plate.
l
Plate Height: height from base to top.
l

Microplate and Lid Dimensions

Obtain values from the
microplate manufacturer's
data sheet, when available.
Otherwise, use calipers to
precisely measure the
microplate, its lid, and its
stacking properties in µm
(microns).

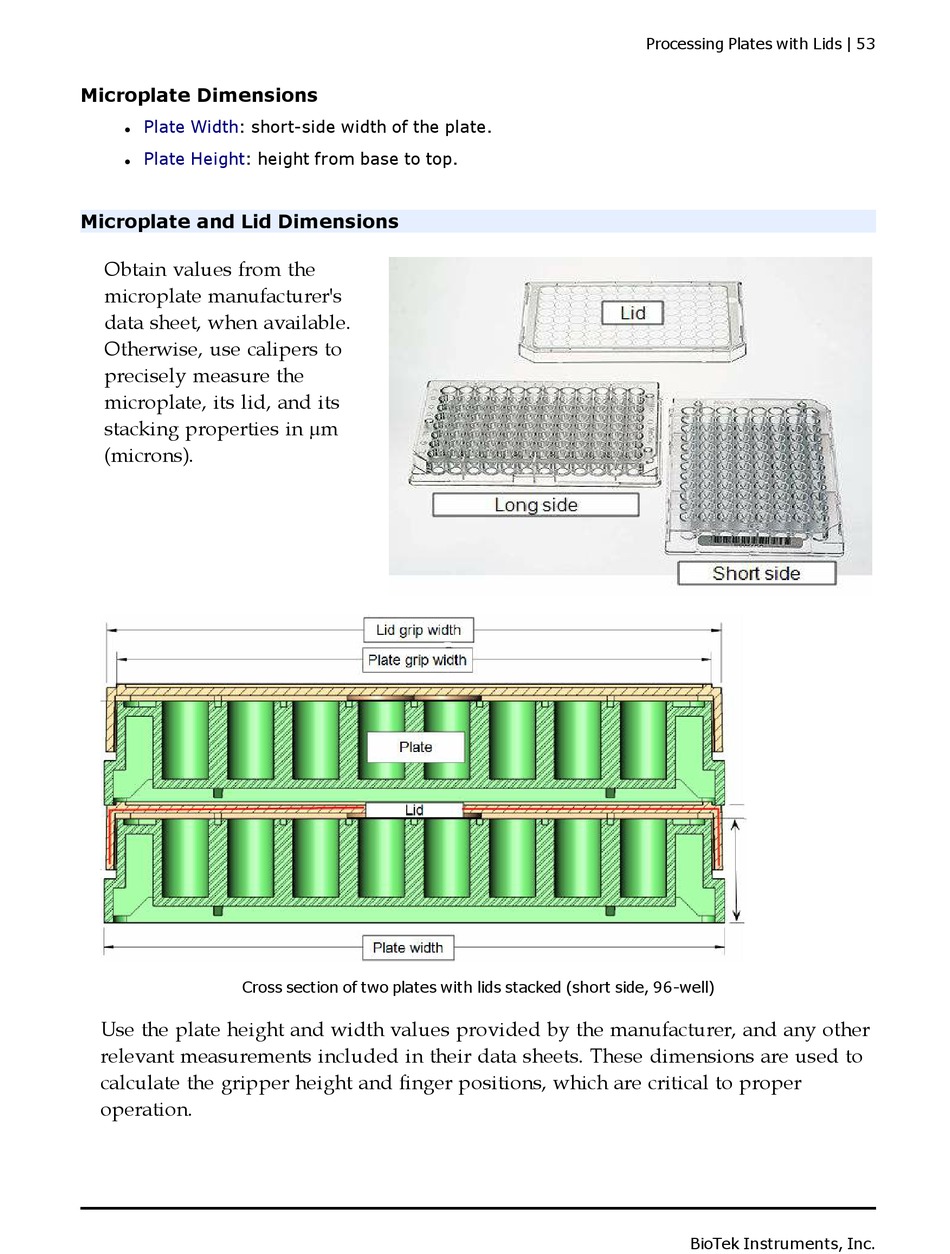

Cross section of two plates with lids stacked (short side, 96-well)
Use the plate height and width values provided by the manufacturer, and any other
relevant measurements included in their data sheets. These dimensions are used to
calculate the gripper height and finger positions, which are critical to proper
operation.
