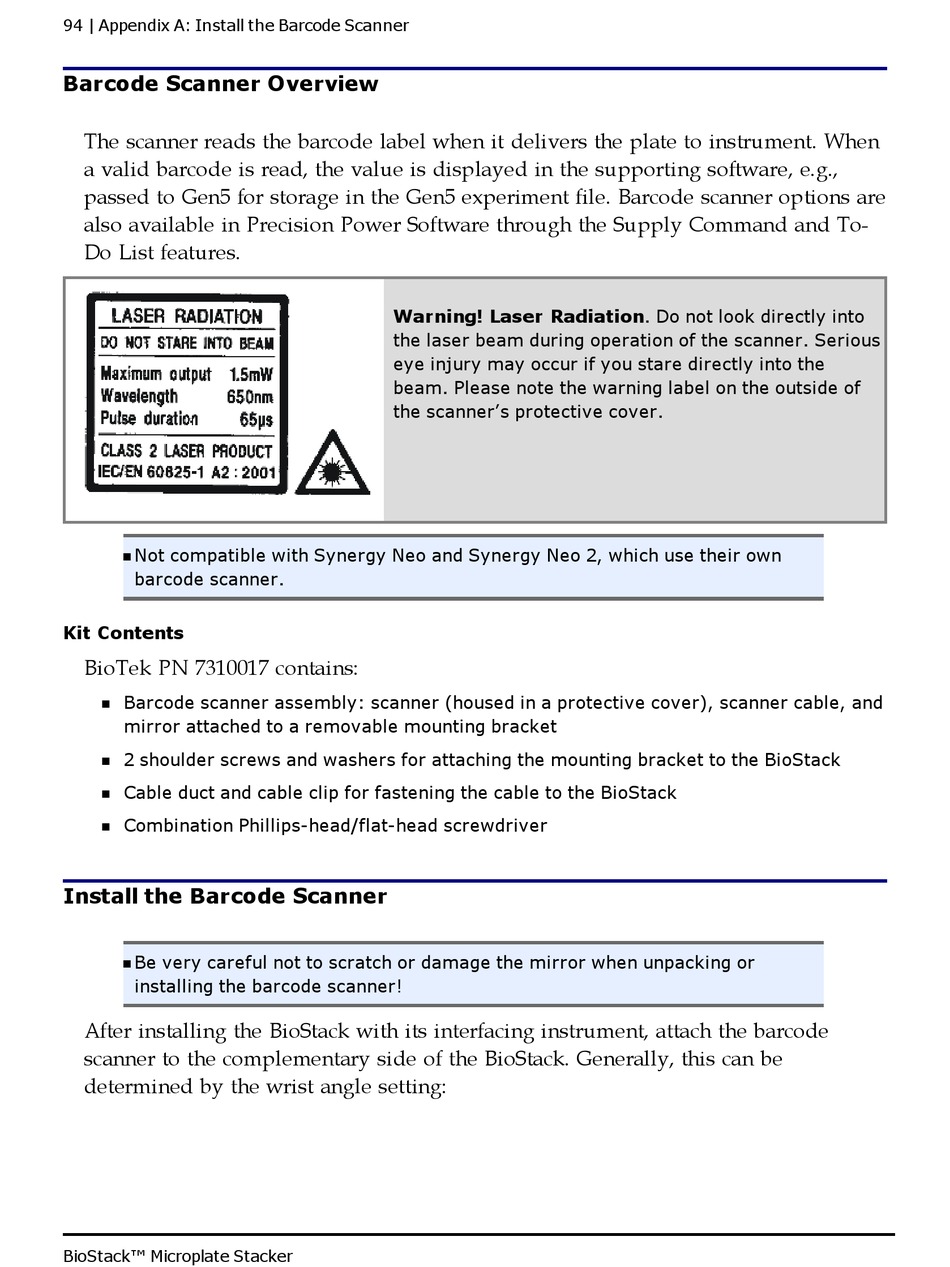

Biotek BioStack 4 Operator's Manual page 116

94 | Appendix A: Install the Barcode Scanner
Barcode Scanner Overview
The scanner reads the barcode label when it delivers the plate to instrument. When
a valid barcode is read, the value is displayed in the supporting software, e.g.,
passed to Gen5 for storage in the Gen5 experiment file. Barcode scanner options are
also available in Precision Power Software through the Supply Command and To-
Do List features.
Not compatible with Synergy Neo and Synergy Neo 2, which use their own
n
barcode scanner.
Kit Contents
BioTek PN 7310017 contains:
Barcode scanner assembly: scanner (housed in a protective cover), scanner cable, and
n
mirror attached to a removable mounting bracket
2 shoulder screws and washers for attaching the mounting bracket to the BioStack
n
Cable duct and cable clip for fastening the cable to the BioStack
n
Combination Phillips-head/flat-head screwdriver
n
Install the Barcode Scanner
Be very careful not to scratch or damage the mirror when unpacking or
n
installing the barcode scanner!
After installing the BioStack with its interfacing instrument, attach the barcode
scanner to the complementary side of the BioStack. Generally, this can be
determined by the wrist angle setting:
BioStack™ Microplate Stacker
Warning! Laser Radiation. Do not look directly into
the laser beam during operation of the scanner. Serious
eye injury may occur if you stare directly into the
beam. Please note the warning label on the outside of
the scanner's protective cover.
