26 | Chapter 2: Installation
9. Locate and install the gripper arm cover using the small Phillips-head
screwdriver.
10. For safekeeping, screw all the screws and washers, the small shipping brackets
and the large shipping block onto the large shipping bracket. Store the shipping
hardware with all the other packaging materials in the shipping boxes and keep
for future use.

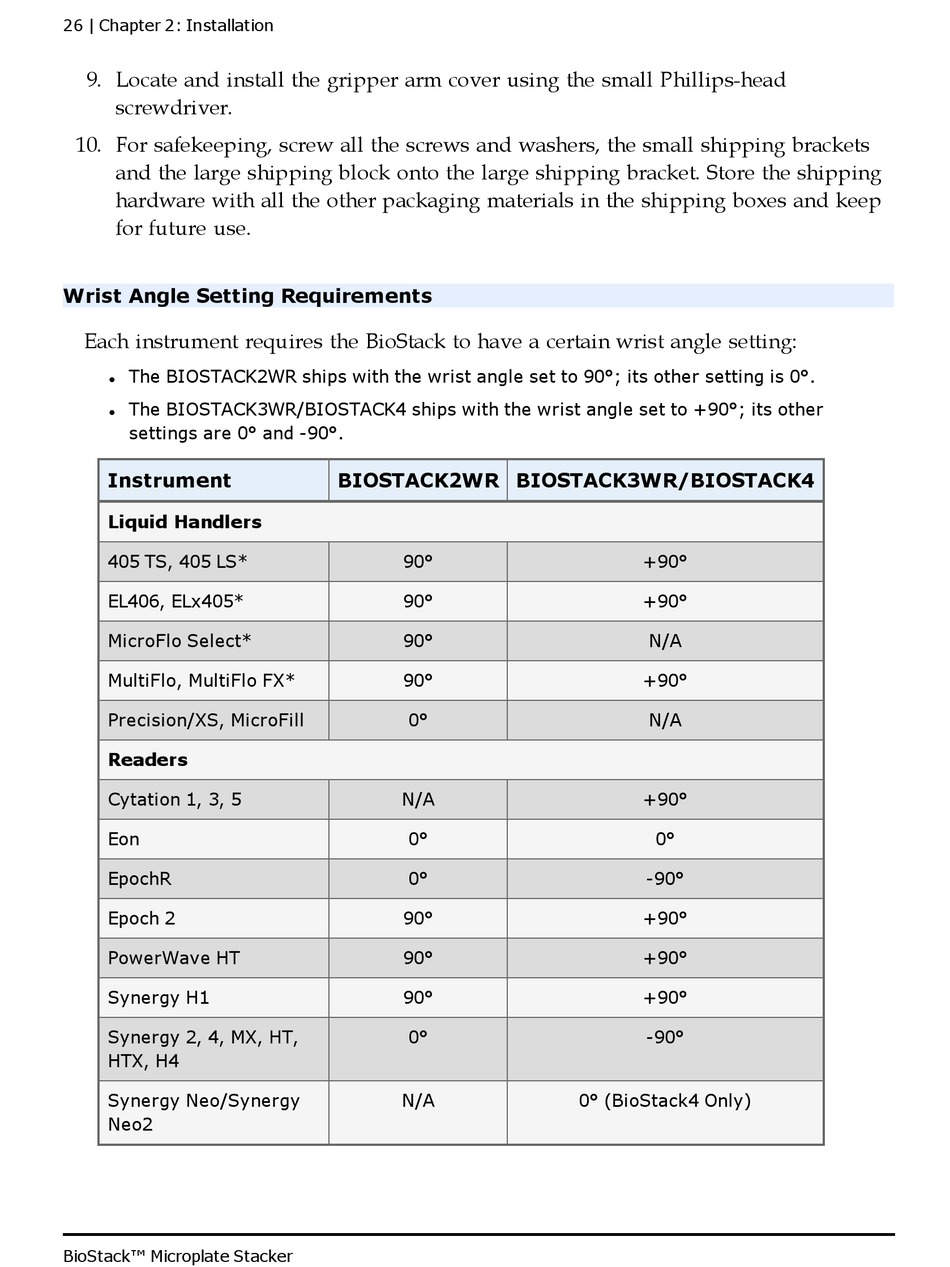

Wrist Angle Setting Requirements

Each instrument requires the BioStack to have a certain wrist angle setting:
The BIOSTACK2WR ships with the wrist angle set to 90°; its other setting is 0°.
l
The BIOSTACK3WR/BIOSTACK4 ships with the wrist angle set to +90°; its other
l
settings are 0° and -90°.
Instrument
Liquid Handlers
405 TS, 405 LS*
EL406, ELx405*
MicroFlo Select*
MultiFlo, MultiFlo FX*
Precision/XS, MicroFill
Readers
Cytation 1, 3, 5
Eon
EpochR
Epoch 2
PowerWave HT
Synergy H1
Synergy 2, 4, MX, HT,
HTX, H4
Synergy Neo/Synergy
Neo2
BioStack™ Microplate Stacker
BIOSTACK2WR BIOSTACK3WR/BIOSTACK4
90°
90°
90°
90°
0°
N/A
0°
0°
90°
90°
90°
0°
N/A
+90°
+90°
N/A
+90°
N/A
+90°
0°
-90°
+90°
+90°
+90°
-90°
0° (BioStack4 Only)
