28 | Chapter 2: Installation

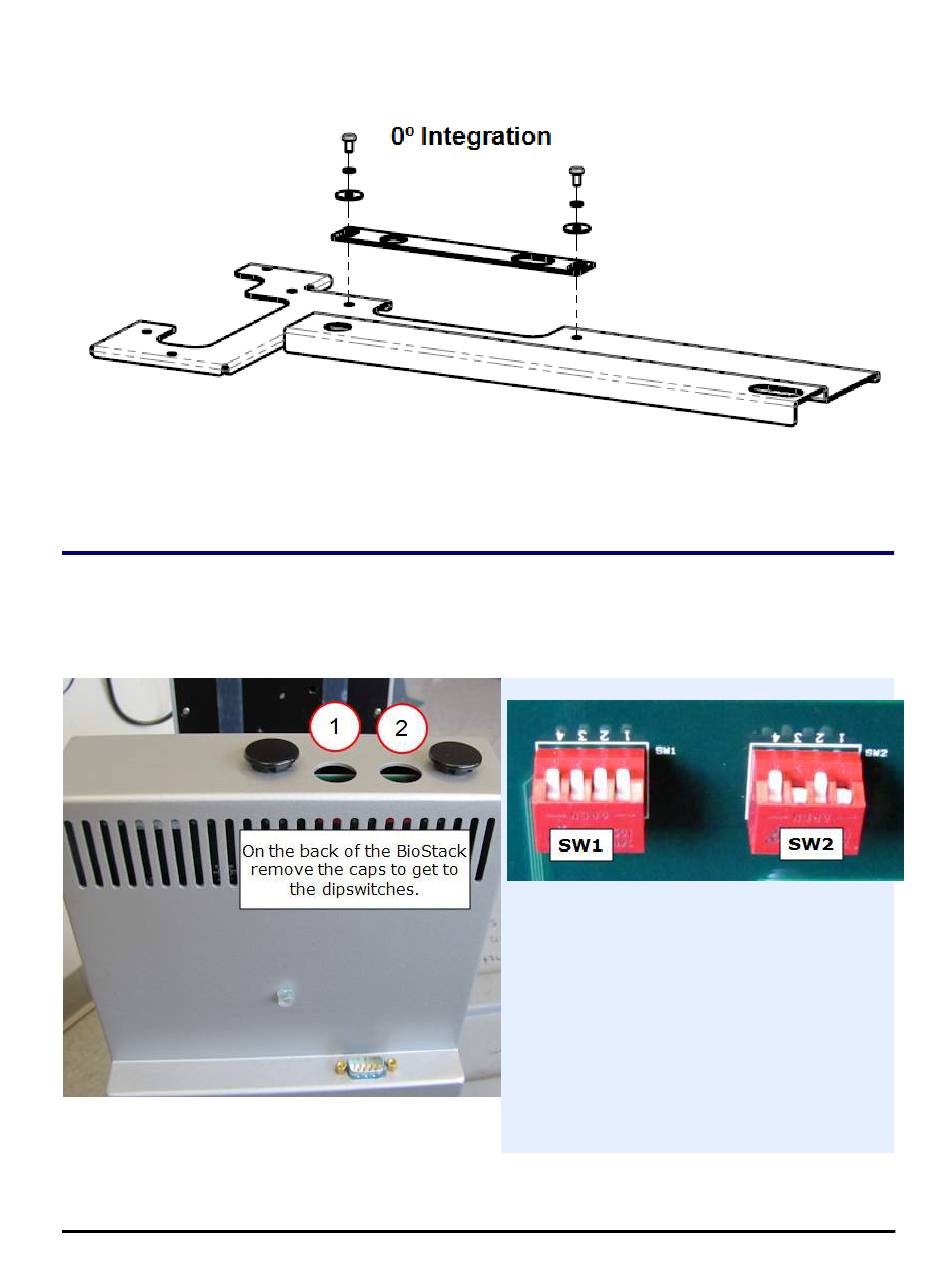

Dip Switch Settings
Two sets of dip switches on the BioStack control variable options, e.g., to change the
wrist angle, use 50-plate stacks, or install the barcode scanner.
Back of the BioStack showing dip switch access
openings: 1 and 2.
BioStack™ Microplate Stacker
0° Integration Position
Dip switch 1 and 2
Two arrays of dip switches, switch 1:
SW1 and switch 2: SW2. On each switch,
note the sequence, from right to left, of
the four switches.
Closed = toward board; Open = away from
board. All SW1 switches are closed in the
photo above.
