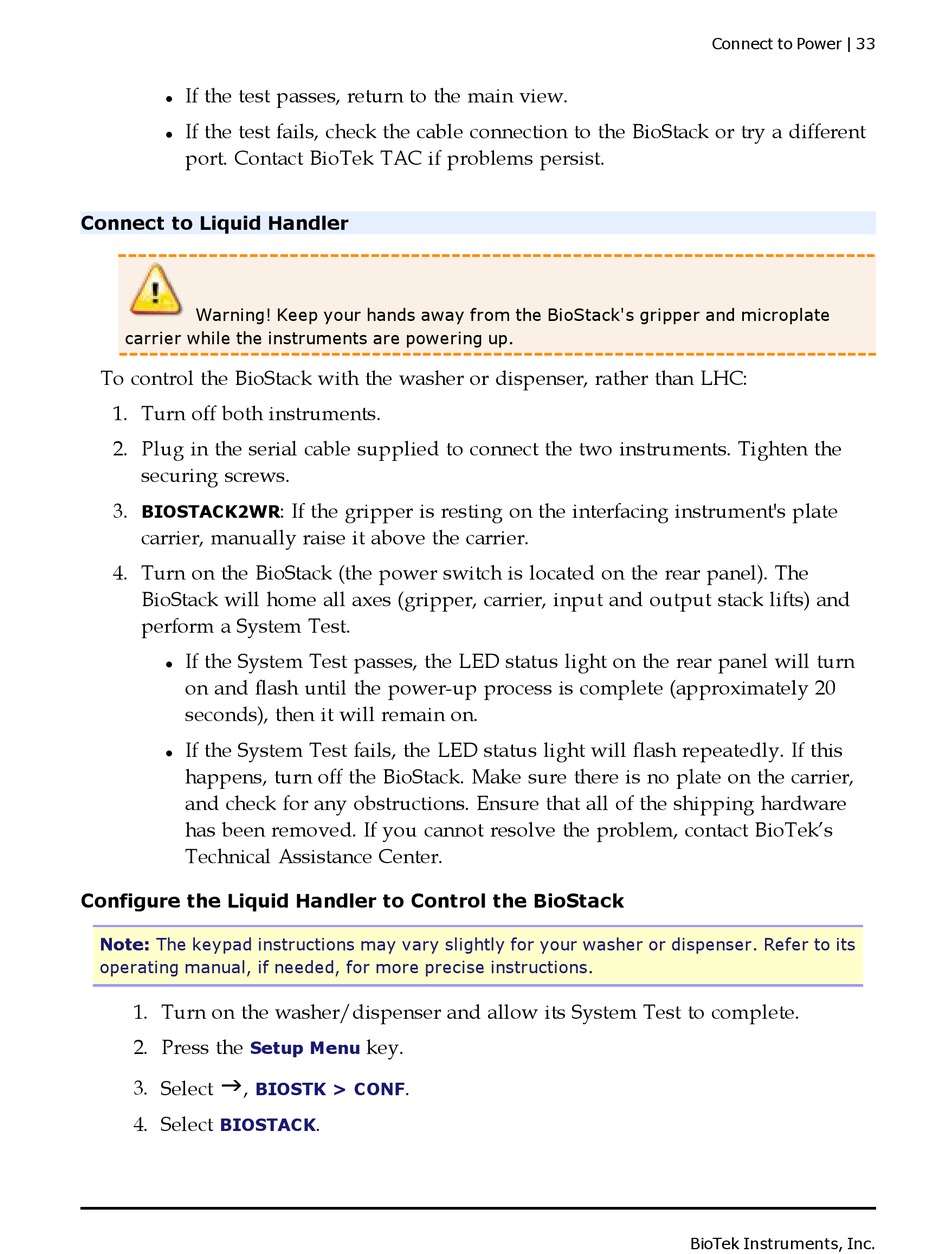

If the test passes, return to the main view.
l
If the test fails, check the cable connection to the BioStack or try a different
l
port. Contact BioTek TAC if problems persist.

Connect to Liquid Handler

Warning! Keep your hands away from the BioStack's gripper and microplate
carrier while the instruments are powering up.
To control the BioStack with the washer or dispenser, rather than LHC:
1. Turn off both instruments.
2. Plug in the serial cable supplied to connect the two instruments. Tighten the
securing screws.
3.
BIOSTACK2WR
carrier, manually raise it above the carrier.
4. Turn on the BioStack (the power switch is located on the rear panel). The
BioStack will home all axes (gripper, carrier, input and output stack lifts) and
perform a System Test.
If the System Test passes, the LED status light on the rear panel will turn
l
on and flash until the power-up process is complete (approximately 20
seconds), then it will remain on.
If the System Test fails, the LED status light will flash repeatedly. If this
l
happens, turn off the BioStack. Make sure there is no plate on the carrier,
and check for any obstructions. Ensure that all of the shipping hardware
has been removed. If you cannot resolve the problem, contact BioTek's
Technical Assistance Center.
Configure the Liquid Handler to Control the BioStack
Note: The keypad instructions may vary slightly for your washer or dispenser. Refer to its
operating manual, if needed, for more precise instructions.
1. Turn on the washer/dispenser and allow its System Test to complete.
2. Press the
Setup Menu
g
3. Select ,
BIOSTK > CONF
4. Select
BIOSTACK
: If the gripper is resting on the interfacing instrument's plate
key.
.
.
