I/O modules
54 EMC VNX8000 Hardware Information Guide
Four-port 1-Gb/s copper iSCSI I/O module LEDs
The four-port 1-Gb/s copper iSCSI I/O module has three types of status LEDs.
shows the LEDs and Table 22
Link LEDs

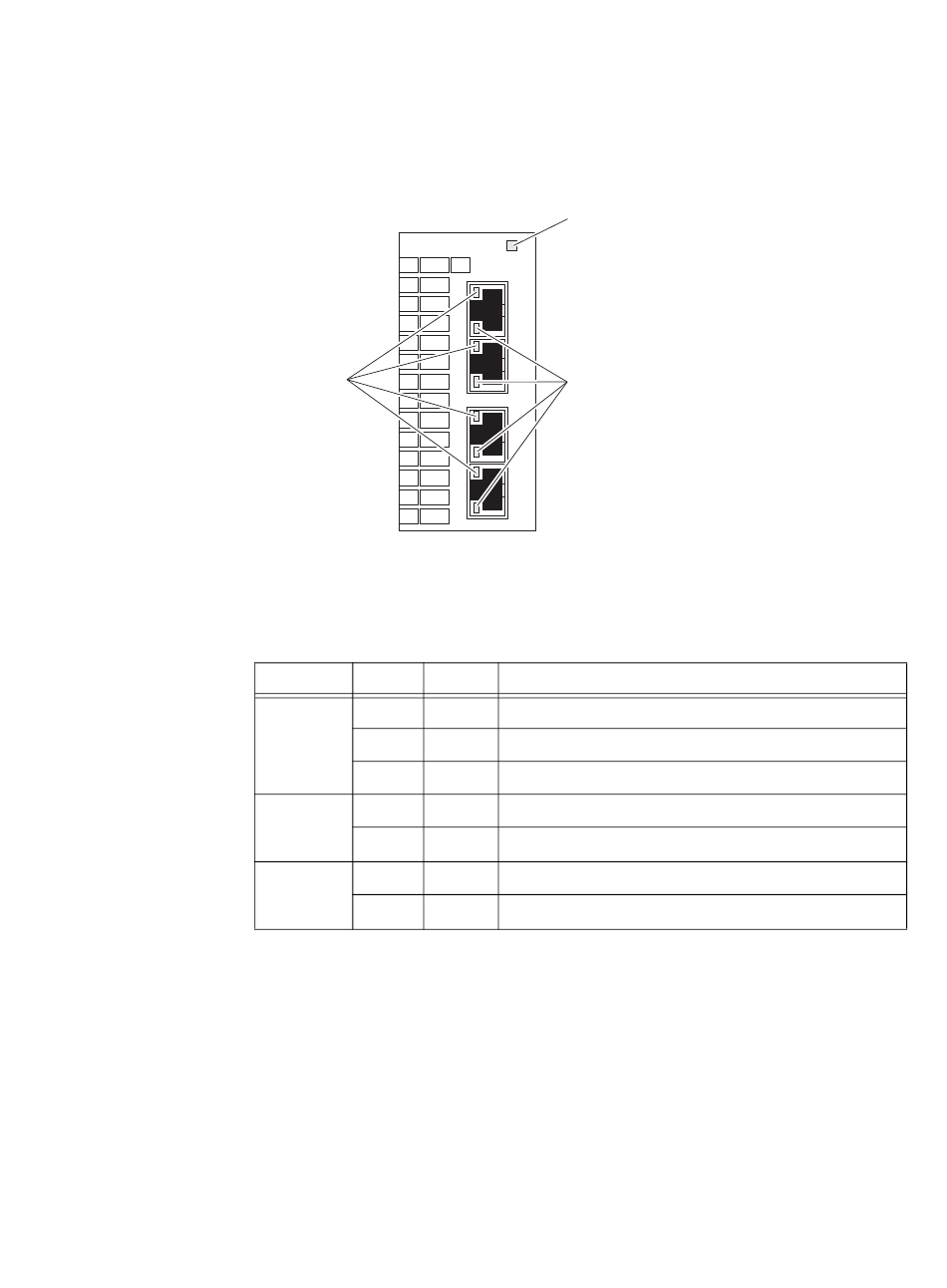

Figure 40 Four-port 1-Gb/s copper iSCSI I/O module LEDs
Table 22 Four-port 1-Gb/s copper iSCSI I/O module LEDs
LED Color State
Power/Fault Green On
Amber On
— Off
Link (each Green On
port has
— Off
one)
Activity Amber Blinking
(each port
— Off
has one)
describes them.
Power/fault
LED
Activity LEDs
CNS-001666
Description
I/O module is powered up.
I/O module has faulted.
I/O module is powered down.
Network connection
No network connection
Transmit/receive activity
No activity
Figure 40
