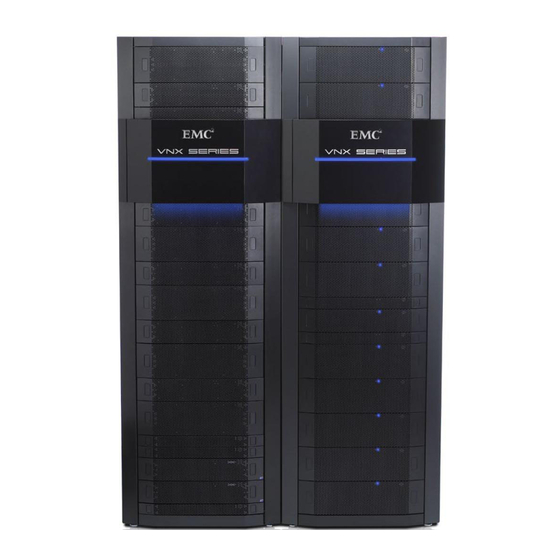

EMC VNX Series Installation And Operation Manual
  1. Manuals
  2. Brands
  3. EMC Manuals
  4. Network Hardware
  5. VNX Series
  6. Installation and operation manual

EMC VNX Series Installation And Operation Manual

Hide thumbs Also See for VNX Series:

Advertisement

Quick Links

Download this manual
TECHNICAL NOTES
This document describes the few exceptions in which DC-powered VNX series systems
differ from their AC counterparts. Topics include:
◆
◆
◆
In general, you configure, operate, and maintain DC-powered systems as you would
the more common AC systems except:
◆
◆
◆
For the most up-to-date and complete set of VNX series documentation, visit the EMC
online support website at:
http://mydocs.emc.com/VNX/
EMC
DC-Powered VNX™ Series Enclosures
Installation and Operation Guide
P/N 300-012-880
Rev 03
April 11, 2014
Power considerations ......................................................................................... 2
Cabling DC power and powering the system up and down .................................. 8
Installing a DC-AC inverter ................................................................................ 13
DC power supplies in the VNX5100, VNX5300, and VNX5500 disk processor
enclosures (DPE) and DAE6S disk array enclosures include power on/off switches
or buttons.
DC storage systems do not include standby power supplies (SPS).
DC storage systems that support file I/O include 1U DC-AC inverters for the control
stations.
• In VNX5100, VNX5300, and VNX5500 systems, the inverters occupy the
physical space reserved for an AC SPS.
• VNX5200, VNX5400, and VNX5600 systems install the inverters directly above
the control stations.
®

Advertisement

loading
Need help?

Need help?

Do you have a question about the VNX Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMC VNX Series

Summary of Contents for EMC VNX Series

  • Page 1 AC SPS. • VNX5200, VNX5400, and VNX5600 systems install the inverters directly above the control stations. For the most up-to-date and complete set of VNX series documentation, visit the EMC online support website at: http://mydocs.emc.com/VNX/...

  • Page 2: Power Considerations

    Power distribution must support the number of outlets required for the device (two per enclosure) and the device power rating. Tables 1 through 4 list the power ® specifications for EMC VNX™ series disk processor, data mover, and disk-array enclosures. Table 1 Disk processor enclosure DC ratings (VNX5100, VNX5300, VNX5500) Requirement...
  • Page 3 Power considerations Table 2 Disk processor enclosure DC ratings VNX5200, VNX5400, VNX5600) Description (note all ratings assume maximally configured systems with Requirement 25x2.5” disk drives) VNX5200 VNX5400 VNX5600 DC line voltage -39 to -72 V DC (nominal -48 V or -60 V power systems) DC line current 22.79 A max at -39 V DC 22.79 A max at -39 V DC...
  • Page 4 Power considerations Table 3 Disk-array enclosure (DAE6S and DAE5S), DC ratings Requirement Description (note all ratings assume maximally configured systems) DAE6s DAE5S DC line voltage -36 to -72 V DC (nominal -48 V or -60 V power systems) DC line current 7.86 A max at -36 V DC 7.56 A max at -36 V DC (operating maximum)
  • Page 5 Power considerations Table 4 File I/O components (blade and control station) DC ratings Requirement Description (note all ratings assume maximally configured systems) Data Mover Enclosure (2 data Control station and AC-DC inverter movers assembly DC line voltage -36 to -72 V DC (nominal -48 V or -36 to -60 V DC -60 V power systems) (nominal -48 V power systems only)

  • Page 6: Power Cords

    Power considerations Figure 1 shows the power cord provided by EMC for DC-powered disk processor Power cords enclosures, DAEs, and control station inverters. Table 5 describes the pin outs. Positronic CL4928 Figure 1 DPE/DAE power cord Table 5 Cabling pinout (Positronics)
  • Page 7 Power considerations Figure 2 shows the power cord provided by EMC for DC-powered data mover (blade) enclosures. Table 6 describes the pin outs. CL4931 Figure 2 Data Mover power cord Table 6 Cabling pinout (Molex) P1 designation Description Wire color...
  • Page 8 Cabling DC power and powering the system up and down Cabling DC power and powering the system up and down After installing the storage-system hardware, cable DC power and power up the system components. Note: VNX DPEs and DAEs start immediately when connected to active DC input; you do not need to press or toggle the power switches.
  • Page 9 Cabling DC power and powering the system up and down 10/100/1000 10/100/1000 10/100/1000 10/100/1000 MGMT MGMT MGMT MGMT CL4929 Figure 4 DC power cord connection (VNX file or unified I/O system) DC-Powered VNX™ Series Enclosures Installation and Operation Guide...
  • Page 10 Cabling DC power and powering the system up and down MGMT MGMT MGMT MGMT 10/100/1000 10/100/1000 10/100/1000 10/100/1000 10/100/1000 10/100/1000 CL5403 Figure 5 DC power cord connection (VNX II file or unified I/O system) DC-Powered VNX™ Series Enclosures Installation and Operation Guide...
  • Page 11 With the following exceptions , you power down VNX series storage systems with DC power as you would an AC system (documented on the EMC online support website http://mydocs.emc.com/VNX/) After you stop all I/O activity to the storage system and, if necessary, unmount the file...
  • Page 12 Cabling DC power and powering the system up and down If necessary, turn off power to other components as follows: ◆ • Toggle the DAE6S power switches to the off position. DAE6S power switch (2) Figure 7 DC power switches —DAE6S •...
  • Page 13 Installing a DC-AC inverter Installing a DC-AC inverter DC storage systems that support file I/O include 1U DC-AC inverters for the control stations. Each control station connects to an inverter, which is in turn connected to the DC power source. Figure 4 on page 9 shows a typical VNX example;...
  • Page 14 Installing a DC-AC inverter Figure 9 Installing the inverter rail kits 4. Slide the tray onto the mounting rails in the cabinet, until the flanges of the tray are flush with the cabinet channels. Rear CL5399 Figure 10 Installing the mounting tray on the rails 5.
  • Page 15 Installing a DC-AC inverter 6. Working from the front of the cabinet, slide the inverter units onto the tray. CL5398 Figure 11 Sliding the inverter units onto the tray DC-Powered VNX™ Series Enclosures Installation and Operation Guide...
  • Page 16 Installing a DC-AC inverter 7. When each assembly is fully seated into the rear bracket/notch and flush with the mounting tray front, secure the inverter unit(s) to the tray by tightening the screws as shown in Figure CL5397 Figure 12 Securing inverters to the mounting tray DC-Powered VNX™...
  • Page 17 Installing a DC-AC inverter 8. If necessary, use one Phillips M5 x 16-mm screw to secure a latch bracket to each front channel. The brackets include small alignment bumps to correctly orient them to the channel. 9. Press the bezel onto the latch brackets until it snaps into place. CL5400 Figure 13 Installing latch brackets and bezel DC-Powered VNX™...
  • Page 18 Installing a DC-AC inverter Copyright © 2014 EMC Corporation. All rights reserved. EMC believes the information in this publication is accurate as of its publication date. The information is subject to change without notice. THE INFORMATION IN THIS PUBLICATION IS PROVIDED “AS IS.” EMC CORPORATION MAKES NO...
