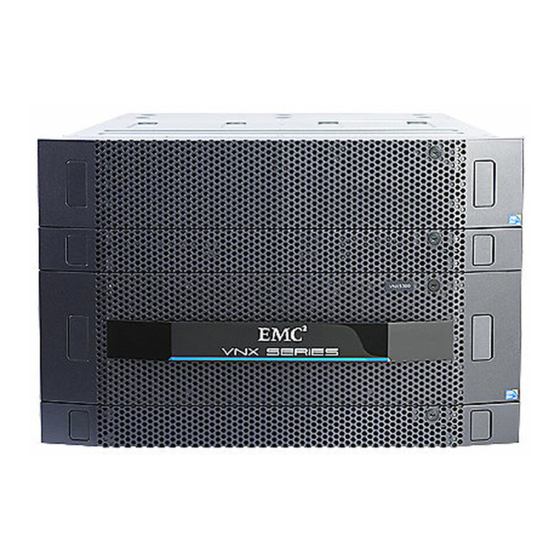

The EMC VNX series implements a modular architecture that integrates hardware
components for Block, File, and Object with concurrent support for native NAS,
iSCSI, Fiber Channel, and Fibre Channel over Ethernet (FCoE) protocols. The VNX
series is based on Intel
(NAS) functionality via two to eight Data Movers and Block (iSCSI, FCoE, and FC)
storage via dual storage processors using a full 6-Gb/s SAS disk drive topology.
This guide describes one of five models available in the VNX series, the VNX5300.
The VNX5300 is a mid-range/entry level storage platform. It offers Block services,
File services, or Unified Block and File services. These services consist of:
Block-only-Includes a disk processor enclosure (DPE), a 1.2 KW standby power
◆
supply (SPS), and disk-array enclosures (DAEs) for holding hard disk drives that
are integrated to facilitate Fibre Channel, Fibre channel over Ethernet (FCoE), and
iSCSI Block services to Windows
File-only-Adds Data Mover enclosure (DME) and Control Station (CS)
◆
hardware to the SPE, SPS, and DAEs to facilitate file services to CIFS/NFS clients.
Unified Block and File-Uses same hardware as the File-only configuration but
◆
adds FC, iSCSI, and FCoE I/O connectivity to provide Block services to host
simultaneously so as to provide File services to clients.
The VNX5300 platform supports two types of DPEs and DAEs; a 15 drive 3.5-inch
disk 3U enclosure and a 25 drive 2.5-inch disk 2U enclosure. Expansion of up to seven
3U DAEs (a maximum of 120 3.5-inch disk drives) or up to four 2U DAEs (a
maximum of 125 2.5-inch disk drives) is supported.
IMPORTANT
!
When calculating the number of drives for your VNX5300 platform, the DPE is
included in the total drive quantity of 125 drives. If the total drive quantity exceeds
125, you will not be able to add another DAE.
Topics covered include:
About this document ...................................................................................................... 2
◆
Overview .......................................................................................................................... 3
◆
System component description ..................................................................................... 9
◆
I/O modules .................................................................................................................. 41
◆
Disk-array enclosure expansion.................................................................................. 57
◆
◆
Cabling............................................................................................................................ 75
◆
®
®
Xeon
-based PCI Express 2.0 processors and delivers File
®
and UNIX
EMC® VNX5300™ Hardware Information Guide
®
EMC
VNX5300
Hardware Information
®
hosts.
™
Guide
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the VNX5300 and is the answer not in the manual?

Questions and answers

Related Manuals for EMC VNX5300

Summary of Contents for EMC VNX5300

  • Page 1 (NAS) functionality via two to eight Data Movers and Block (iSCSI, FCoE, and FC) storage via dual storage processors using a full 6-Gb/s SAS disk drive topology. This guide describes one of five models available in the VNX series, the VNX5300. The VNX5300 is a mid-range/entry level storage platform. It offers Block services, File services, or Unified Block and File services.

  • Page 2: About This Document

    About this document This document provides an overview of the architecture, components, and features of the VNX5300 platform. The specific aspects of the Block, File, and Unified VNX5300 platform and its major components include the front and rear connectors and LED indicators on the 3U, 15 (3.5-inch) or 3U, 25 (2.5-inch) disk processor enclosure (DPE),...
  • Page 3 As an mid-range/entry level storage platform offering Block services, File service and Unified services, the VNX5300 platform (Figure 1) is one of the five models that make up the VNX series. For a quick look at the VNX5300 platform hardware features, see Table 1, “VNX5300 hardware feature quick reference,” page...
  • Page 4 Figure 3 on page 5 are examples of a Block and File VNX5300 platform (front and rear views). These figures are example of what a Block and File VNX5300 platform looks like and are for illustrative purposes only. 2. The term Data Mover is used throughout this guide. The term Data Mover is also referred to as a blade.
  • Page 5 DPE. With the DME having the deepest dimension within the cabinet, the Block and File VNX5300 measures 12.25 to 14 inches (7 to 8U) high x 18.92 inches wide x 24.25 inches deep (31.11 cm to 35.56 cm x 48.05 cm x 61.59 cm).
  • Page 6 MPFS = Multi-Path File System b. pNFS = parallel-NFS c. BE = back end For physical, environmental, and power details, refer to “Specifications” on page Configured for AC-input power, the Block and File VNX5300 platform includes the following hardware features: One DPE: ◆ IMPORTANT On the rear of the DPE, each storage processor includes a CPU module and a power supply.
  • Page 7 Fibre Channel over Ethernet (FCoE) Note: The maximum number of I/O modules for the VNX5300 is three per Data Mover and any combination of these I/O modules must be the same for each Data Mover. • Two management modules per DME (or, one per Data Mover) •...
  • Page 8 EMC® VNX5300™ Hardware Information Guide IMPORTANT When calculating the number of drives for your Block and File VNX5300 platform, the DPE is included in the total drive slot quantity of 120 or 125 drives. If the total drive slot quantity exceeds 120 or 125, you will not be able to add another DAE.
  • Page 9 These details include illustrations and descriptions of the front and rear connectors and the LED indicators. Note: A Unified VNX5300 platform uses the same hardware as the Block and File configuration but adds FC, iSCSI, and FCoE I/O connectivity to provide Block services to host simultaneously so as to provide File services to clients.
  • Page 10 EMI shield. You must remove the bezel/shield to remove and install disk drive modules. 3U, 15 DPE front view On the front, the Block and File VNX5300 platform 3U, 15 (3.5-inch) DPE carrier includes the following: 3.5-inch 6-Gb/s SAS or 6-Gb/s NL-SAS disk drives (hot-swappable) ◆...
  • Page 11 DPE power on LED (blue) VNX5300 platform 3U, 15 DPE carrier (front view) Figure 4 Table 2 describes the Block and File VNX5300 platform 3U, 15 DPE and the disk drive status LEDs. VNX5300 platform 3U, 15 DPE and disk drive LEDs Table 2...
  • Page 12 Disk is powered down 3U, 25 DPE front view On the front, viewing from left to right, the Block and File VNX5300 platform 3U, 25 (2.5-inch) disk drive DPE includes the following: 2.5-inch 6-Gb/s SAS or 6-Gb/s NL-SAS drives (hot-swappable) ◆...
  • Page 13 Blue Powering and powered up Blinking Disk drive activity Control Station front On the front, viewing from left to right, the Block and File VNX5300 platform Control view Station includes the following: DVD-ROM drive ◆ USB 2.0 connector (not used) ◆...
  • Page 14 EMC® VNX5300™ Hardware Information Guide Control Station switch and LEDs Figure 7 shows the location of the Block and File VNX5300 platform Control Station switch and LEDs on the front panel. Table 4 describes the switch located on the front panel.
  • Page 15 EMC® VNX5300™ Hardware Information Guide DME front view The front of the Block and File VNX5300 platform, the DME contains two enclosure status (power and fault) LEDs (Figure Table 6 describes the DME power and fault LEDs. Note: Figure 8 is a graphical representation of the Block and File VNX5300 platform DME with four power supply/cooling (fan) modules and two CPU modules installed.
  • Page 16 EMC® VNX5300™ Hardware Information Guide CPU LEDs Table 7 Color State Description Power Green Data Mover is powered up and all FRUs in the Data Mover are operating properly. — Data Mover is powered down. Fault Amber Data Mover has faulted.
  • Page 17 EMC® VNX5300™ Hardware Information Guide VNX5300 rear view On the rear, viewing from bottom to top, a Block and File VNX5300 platform includes the following hardware components: One to two SPSs ◆ One DPE with two storage processors (SPs), each SP (A and B) having one CPU ◆...
  • Page 18 EMC® VNX5300™ Hardware Information Guide It is important to cable each SPS so that it connects completely to either the A side or the B side. For example, if you are looking at the SPSs from the rear, they should be configured as: SPS A (rear, right side)—Power-out and sense (management) cables connected to...
  • Page 19 EMC® VNX5300™ Hardware Information Guide Table 9 describes the SPS LEDs. Table 9 SPS LEDs Color State Description SPS power Green SPS ready and operating normally; battery fully charged Blinking On/battery charging — Off/disconnected SPS battery Amber AC line power is no longer available and the SPS is supplying DC output power from the battery.
  • Page 20 Power supply (for closer view, see Figure 17 on CPU module (for closer view, see Figure 16 on page page Figure 15 Example of the Block and File VNX5300 platform DPE with two SPs (rear view) EMC® VNX5300™ Hardware Information Guide...
  • Page 21 EMC® VNX5300™ Hardware Information Guide On the rear, viewing from left to right, each DPE includes the following hardware components: AC power supply/cooling module ◆ • Power in (recessed) connector (plug) • Power supply status LEDs (power on and fault) •...
  • Page 22 EMC® VNX5300™ Hardware Information Guide Figure 16 shows the location of these components. Cover Cover Do not remove Do not remove fibre 6Gb SAS 0 X4 VNX-000285 AC power in connector (recessed plug) Two RJ-45 (management and service laptop) connectors (labeled with a network management...
  • Page 23 EMC® VNX5300™ Hardware Information Guide SP AC power supply Figure 17 shows an example of the SP AC power supply/cooling module with a power in (recessed) connector (plug) and status LEDs. The SP is cooled by this power supply on top.
  • Page 24 Power off, verify connection SP Input/output ports and connectors The Block and File VNX5300 platform SP supports the following I/O ports on the rear: Two 6-Gb/s SAS PCI Gen 2 x4 ports (labeled 6Gb SAS 0 x4 and 1 x4); supported ◆...
  • Page 25 No link activity 8-Gb/s FC ports The Block and File VNX5300 platform SP comes with four optical (fibre) 8-Gb/s Fibre Channel (FC) ports (labeled 8GB fibre 2, 3, 4, and 5) on the rear of each SP (A and B).
  • Page 26 EMC® VNX5300™ Hardware Information Guide CNS-001090 Dust plug (protective cap) Send or transmit (TX) optical bore Bale clasp latch Receive (RX) optical bore Figure 20 Example of an SFP+ module The LC type interface was developed by Lucent Technologies (hence, Lucent Connector).
  • Page 27 8-Gb/s link speed (maximum speed) Green or Blinking Small form-factor pluggable (SFP+ ) transceiver module Blue faulted, unsupported, or optical cable fault. — No network connection a. Refer to the VNX5300 Parts Guide for the correct SFP+ part number. System component description...
  • Page 28 To avoid electric shock, do not connect TNV circuits to SELV circuits. The block and File VNX5300 platform SP comes with two integrated dual-port Ethernet ports (labeled with a network management symbol and a wrench symbol, respectively).
  • Page 29 EMC® VNX5300™ Hardware Information Guide Network management and service laptop Ethernet (RJ-45) port and connector (adapter) — Figure 24 shows an example of the Ethernet (RJ-45) port and cable connector. 1 2 3 4 5 6 7 8 VNX-000111 Figure 24...
  • Page 30 10-Mb/s connection (if left LED is on or blinking) Serial RS-232/EIA 232 (micro DB-9) socket connector The back of the Block and File VNX5300 platform SP includes a standard serial Electronics Industries Association (EIA) RS-232 interface (micro DB-9) connector (labeled with a symbol depicting a wrench on the upper left) to connect to a PC or service laptop computer.
  • Page 31 Figure 27 Serial RS-232/EIA 232 (micro DB-9) connector (socket) for SPS management The back of the Block and File VNX5300 platform SP includes a second standard serial RS-232/EIA 232 interface (micro DB-9) socket connector (labeled with a symbol depicting a battery to the left) to connect to the SPS management port (RJ-12). Notice...
  • Page 32 For a full description of the I/O module types used in the SP, go to“I/O modules” on page Control Station rear On the rear, viewing from left to right, the Block and File VNX5300 platform Control view Station includes the following hardware components: AC power in connector ◆...
  • Page 33 An extension cable with a label (CS 0 MGMT) is provided with this connector (see the cable kit). Figure 30 VNX5300 platform Control Station (rear view) Control Station Input/output ports and connectors VNX5300 platform Control Station supports the following I/O Block and File ports on the rear of the Control Station: Four Ethernet (RJ-45) NIC ports ◆...
  • Page 34 EMC® VNX5300™ Hardware Information Guide Control Station Ethernet (RJ-45) NIC ports The Block and File VNX5300 platform Control Station comes with two integrated dual-port Ethernet ports (labeled A and CS) and two Peripheral Component Interconnect Express (PCI-E) low profile card dual-port Ethernet ports (labeled B and MGMT) in an expansion slot on the rear of the Control Station.
  • Page 35 1000-Mb/s (or 1-Gb/s) connection Ethernet cable extensions for the Control Station B and MGMT ports Each Block and File VNX5300 platform Control Station (CS 0) comes with two modular Ethernet cable extensions (or patch cords) for the RJ-45 ports (labeled on the CS as B and MGMT, respectively).
  • Page 36 EMC® VNX5300™ Hardware Information Guide Note: If you received the Block and File VNX5300 platform already installed in a cabinet rack with all of the Block and File VNX5300 platform components, all the cabling has already been installed. VNX-000564 Figure 33...
  • Page 37 Clear to send Request to send Ring indicator DME rear view The rear of the Block and File VNX5300 platform DME does not contain any LEDs (Figure 36). Only the Data Mover management module and the I/O modules have LEDs.
  • Page 38 Data Mover management module Data Mover management module Ethernet (RJ-45) NIC ports The Block and File VNX5300 platform Data Mover management module comes with three integrated dual-port Ethernet ports (labeled 0, 1, and 2) on the rear of the Data Mover management module.
  • Page 39 EMC® VNX5300™ Hardware Information Guide Since the Control Station and the Data Mover management module have the same type of RJ-45 NIC ports, “Control Station Ethernet (RJ-45) NIC ports” on page 34 provides detailed information about the Data Mover management module NIC ports, connector, and adapter.
  • Page 40 EMC® VNX5300™ Hardware Information Guide Data Mover management module serial console (DB-9) socket connector The back of the Block and File VNX5300 platform Data Mover management module includes a standard serial console Electronics Industries Association (EIA) RS-232 interface (DB-9) socket connector (labeled with a wrench tool icon on the left). Notice...
  • Page 41 EMC® VNX5300™ Hardware Information Guide I/O modules There are several types of I/O modules supported in the Block and File VNX5300 platform. The SP supports four types of I/O modules (see “SP I/O module types”) and the Data Mover supports four types (see “Data Mover I/O module types”...
  • Page 42 — No network connection a. Refer to the VNX5300 Parts Guide for the correct SFP+ part number. 9. Be careful when replacing or swapping out SFP+ modules, your Data Mover will lose access to the SP or tape drive to which it is connected.
  • Page 43 EMC® VNX5300™ Hardware Information Guide Four-port 1-Gb/s copper iSCSI I/O module The four-port 1-Gb/s copper iSCSI I/O module comes with four copper ports, one power/fault LED, and a link and activity LED for each copper port as shown in Figure 42.
  • Page 44 EMC® VNX5300™ Hardware Information Guide Four-port 1-Gb/s copper iSCSI I/O module LEDs The four-port 1-Gb/s copper iSCSI I/O module has three types of status LEDs. Figure 43 shows the LEDs and Table 29 describes them. Power/fault Link LEDs Activity LEDs...
  • Page 45 EMC® VNX5300™ Hardware Information Guide Two-port 10-Gb/s optical or active Twinax iSCSI I/O module The two-port 10-Gb/s optical or active Twinax iSCSI I/O module comes with two optical or active twisted pair ports, one power/fault LED, and a link and activity LED...
  • Page 46 EMC® VNX5300™ Hardware Information Guide Two-port 10-Gb/s optical I/O module LEDs The two-port 10-Gb/s optical I/O module has three types of status LEDs. Figure 45 shows the LEDs and Table 30 describes them. Power/fault LED Link LED Activity LED Link LED...
  • Page 47 Gb/s for Fibre Channel over Ethernet networks. The two-port 10-Gb/s FCoE I/O module uses the SFP transceiver module. The two-port 10-Gb/s FCoE I/O module uses FCoE protocol, hence the required SFP+ transceiver module uses a different part number (for part number, see the VNX5300 Parts Guide). CNS-001756 Push button latch handle...
  • Page 48 EMC® VNX5300™ Hardware Information Guide Two-port 10-Gb/s FCoE I/O module LEDs The two-port 10-Gb/s FCoE I/O module has three types of status LEDs. Figure 47 shows the LEDs and Table 31 describes them. Power/fault LED Link LED Activity LED Link LED...
  • Page 49 EMC® VNX5300™ Hardware Information Guide Data Mover I/O module types The following I/O module types are supported by the Block and File VNX5300 platform Data Mover: “Four-port 8-Gb/s FC I/O module” on this page ◆ “Four-port 1-Gb/s copper I/O module” on page 51 ◆...
  • Page 50 LED) Green or Blinking Small form-factor pluggable (SFP+ ) transceiver module faulted, Blue unsupported, or optical cable fault. — No network connection a. Refer to the VNX5300 Parts Guide for the correct SFP+ part number. EMC® VNX5300™ Hardware Information Guide...
  • Page 51 EMC® VNX5300™ Hardware Information Guide Four-port 1-Gb/s copper I/O module The four-port 1-Gb/s copper I/O module comes with four copper ports, one power/fault LED, and a link and activity LED for each copper port as shown in Figure 50. This I/O module can interface at speeds of 10 Mb/s, 100 Mb/s, and 1000 Mb/s (1 Gb/s).
  • Page 52 EMC® VNX5300™ Hardware Information Guide Four-port 1-Gb/s copper I/O module LEDs The four-port 1-Gb/s copper I/O module has three types of status LEDs. Figure 51 shows the LEDs and Table 33 describes them. Power/fault Link LEDs Activity LEDs CNS-001666 Four-port 1-Gb/s copper I/O module LEDs...
  • Page 53 EMC® VNX5300™ Hardware Information Guide Two-port 1-Gb/s copper plus two-port 1-Gb/s optical I/O module The two-port 1-Gb/s copper plus two-port 1-Gb/s optical I/O module comes with two copper ports and two optical ports, one power/fault LED, and a link and activity...
  • Page 54 EMC® VNX5300™ Hardware Information Guide Two-port 1-Gb/s copper plus two-port 1-Gb/s optical I/O module LEDs The two-port Gb/s copper plus two-port Gb/s optical I/O module has three types of status LEDs. Figure 53 shows the LEDs and Table 34 describes them.
  • Page 55 SFP+ modules). The two-port 10-Gb/s optical I/O module uses iSCSI protocol, hence the required SFP+ transceiver module uses a different part number (for part number, see the VNX5300 Parts Guide). CNS-001756 Push button latch handle...
  • Page 56 EMC® VNX5300™ Hardware Information Guide Two-port 10-Gb/s optical I/O module LEDs The two-port 10-Gb/s optical I/O module has three types of status LEDs. Figure 55 shows the LEDs and Table 35 describes them. Power/fault LED Link LED Activity LED Link LED...
  • Page 57 3U, 15 (3.5-inch) DAE ◆ 2U, 25 (2.5-inch) DAE ◆ The Block and File VNX5300 platform supports up to seven 3U, 15 (3.5-inch) DAEs (120 3.5-inch disk drives) or up to four 2U, 25 (2.5-inch) DAEs (125 2.5-inch disk drives). IMPORTANT When calculating the number of drives for your system, the DPE is included in the total drive slot quantity of up to 125 drives.
  • Page 58 The 3U, 15 (3.5-inch) On the front, viewing from left to right, the Block and File VNX5300 platform 3U, 15 DAE front view (3.5-inch) disk drive DAE carrier includes the following hardware components: 3.5-inch 6-Gb/s SAS, 6-Gb/s NL-SAS, or Flash disk drives (hot-swappable)

  • Page 59: Drive Status Leds

    DAE power on LED (blue) Figure 56 3U, 15 (3.5-inch) DAE (front view) Table 36 describes the Block and File VNX5300 platform DAE and the 3.5-inch disk drive status LEDs 3U, 15 (3.5-inch) DAE and disk drive LEDs Table 36...
  • Page 60 EMC® VNX5300™ Hardware Information Guide The 3U, 15 (3.5-inch) On the rear, viewing from top to bottom (Figure 57 on page 61), a 3U, 15 (3.5-inch) DAE rear view DAE includes the following hardware components: Two 6-Gb/s SAS LCCs (A and B) ◆...
  • Page 61 EMC® VNX5300™ Hardware Information Guide Figure 57 shows an example of the rear view of a 3U, 15 (3.5-inch) DAE. 10 11 LCC B LCC A VNX-000100 LCC B AC power supply power in (recessed plug) 7 LCC B SAS connector (output)
  • Page 62 EMC® VNX5300™ Hardware Information Guide 3U, 15 (3.5-inch) DAE AC power supply/cooling module Figure 58 shows an example of the 3U, 15 (3.5-inch) DAE AC power supply/cooling module with a power in recessed connector (plug) and status LEDs. Power supply in...
  • Page 63 EMC® VNX5300™ Hardware Information Guide The 3U, 15 (3.5-inch) DAE LCC input/output ports and connectors The 3U, 15 (3.5-inch) DAE LCC supports the following I/O ports on the rear: Two 6-Gb/s SAS x 4 ports ◆ One management (RJ-45) connector ◆...
  • Page 64 EMC® VNX5300™ Hardware Information Guide 6-Gb/s SAS port LEDs and port direction (input or output) Figure 60 shows the LCC 6-Gb/s SAS port LED—a bi-color (blue/green) LED next to the connector, either left or right—that indicates the link/activity of the SAS port.
  • Page 65 EMC® VNX5300™ Hardware Information Guide WARNING The SPS (RJ-12) port is a LAN port not a WAN port. LAN ports contain safety extra-low voltage (SELV) circuits, and WAN ports contain telephone-network voltage (TNV) circuits. An RJ-45 (or TNV-type) looks the same as the RJ-12 except for two very important differences.
  • Page 66 EMC® VNX5300™ Hardware Information Guide 2U, 25 (2.5-inch) DAE front view On the front, viewing from left to right, the Block and File VNX5300 2U, 25 (2.5-inch) DAE includes the following hardware components: 2.5-inch 6-Gb/s SAS, 6-Gb/s NL-SAS, or Flash disk drives (hot-swappable) ◆...
  • Page 67 EMC® VNX5300™ Hardware Information Guide 2U, 25 (2.5-inch) DAE and disk drive status LEDs (continued) Table 41 Color State Description Disk drive fault (location 4) Amber Fault has occurred — No fault has occurred Disk drive on/activity (location 5) Blue...
  • Page 68 EMC® VNX5300™ Hardware Information Guide Internally, each DAE LCC connects to the drives in its enclosure in a point-to-point fashion through a switch. The LCC independently receives and electrically terminates incoming signals. For traffic from the system’s storage processors, the LCC switch passes the signal from the input port to the drive being accessed;...
  • Page 69 EMC® VNX5300™ Hardware Information Guide Table 42 describes the 2U, 25 (2.5-inch) DAE power supply/cooling module LEDs. Table 42 2U, 25 (2.5-inch) DAE AC power supply/cooling module LEDs Color State Description Power fault Amber Fault Blinking During power shutdown and during overvoltage and undervoltage protection (OVP/UVP) fault —...
  • Page 70 EMC® VNX5300™ Hardware Information Guide Table 43 lists the 6-Gb/s SAS port pin signals used on the connector. Table 43 6-Gb/s SAS port connector pinout Signal Signal Rx 0+ Tx 0+ Rx 0- Tx 0- Rx 1+ Tx 1+ Rx 1-...
  • Page 71 EMC® VNX5300™ Hardware Information Guide Table 44 describes the 6-Gb/s SAS port LEDs. Table 44 6-Gb/s SAS port LEDs Color State Description Link/activity Blue All lanes are running at 6 GB/s Green One or more lanes is not running at full speed or...
  • Page 72 EMC® VNX5300™ Hardware Information Guide IMPORTANT You can add or remove a disk drive while the DAE is powered up, but you should exercise special care when removing disk drives while they are in use. Disk drives are extremely sensitive electronic components.

  • Page 73: Specifications

    EMC® VNX5300™ Hardware Information Guide Specifications Table 46 lists the Block and File VNX5300 platform physical specifications, operating environment, and power requirements. Table 46 VNX5300 platform specifications Parameter Characteristics Dimensions (approximate) Height 14 in. (35.56 cm) 8 NEMA units (U) total, disk processor enclosure (DPE,...
  • Page 74 EMC® VNX5300™ Hardware Information Guide VNX5300 platform specifications (continued) Table 46 Parameter Characteristics AC inlet type (receptacle) IEC320-C14 appliance coupler (per power supply) Ride-through 30 ms minimum at full load Current sharing ± 15% of full load, between power supplies a.
  • Page 75 (ports) located on the DAE and DPE of the VNX5300 platform. DAE cabling for the Block VNX5300 platform is shown first and then cabling for the File version of the VNX5300 platform is shown.
  • Page 76 The rule of load or bus balancing is applied to all DAEs. That is, Bus 0 is Enclosure Address 0 (EA0), Bus 1 is EA0, and so on. In the case of the VNX5300 platform, Bus 0 EA0 is the DPE (SP A and B). So, to balance the load, Bus 1 EA0 becomes the first DAE (LCC A and B) in the cabinet with the next DAE (LCC A and LCC B) as Bus 0 EA1, and so on.
  • Page 77 DAE (labels SP B SAS 0 to LCC B) ◆ Note: If your VNX5300 platform was not cabled at the factory, refer to the cable wrap guide (“Cable label wraps” on page 75) that came with your VNX5300 platform for the correct cable labels.
  • Page 78 VNX5300 Block platform with with seven DAEs in a seven DAEs (all are 3U, 15 disk drive DAEs) or a VNX5300 platform with a total of VNX5300 Block 120 disk drives (with the DPE a 3U, 15 disk drive device).
  • Page 79 0 X4 0 X4 6Gb SAS 6Gb SAS Switch Power Power Switch Power Power SPS B SPS A VNX-000119 Figure 72 Example of the VNX5300 Block platform with seven DAEs (3U, 15 disks) interleaved cabling VNX5300 DAE cabling...
  • Page 80 VNX5300 Block platform with seven with seven DAEs in DAEs (all are 3U, 15 disk drive DAEs) or a VNX5300 platform with a total of 120 disk VNX5300 Block drives (with the DPE a 3U, 15 disk drive device). This example shows the stacked platform cabling with one 40U rack having seven DAEs.
  • Page 81 0 X4 0 X4 6Gb SAS 6Gb SAS Switch Power Switch Power Power Power SPS A SPS B VNX-000635 Figure 73 Example of the VNX5300 Block platform with seven DAEs (3U, 15 disks) stacked cabling VNX5300 DAE cabling...
  • Page 82 The rule of load or bus balancing is applied to all DAEs. That is, Bus 0 is Enclosure Address 0 (EA0), Bus 1 is EA0, and so on. In the case of the VNX5300 platform, Bus 0 EA0 is the DPE (SP A and B). So, to balance the load, Bus 1 EA0 becomes the first DAE (LCC A and B) in the cabinet with the next DAE (LCC A and LCC B) as Bus 0 EA1, and so on.
  • Page 83 Optional Optional SPS 1U SPS B VNX-000120 Example of the VNX5300 File platform with two DAEs (3U, 15 disks) cabling Figure 74 Note: In Figure 74 the VNX5300 File platform shows a single SPS (with an optional SPS available), a DPE (with two SPs), a CS (with an optional CS available), a DME (with one DM), and a 3U 15 DAE and the 2U 25 DAE.
  • Page 84 120 disk drives (with the DPE a 3U, 15 disk drive device). with seven DAEs In this example, the SAS ports on the VNX5300 platform DPE are labeled 0 and 1. SAS 0 is connected internally to the SAS expander that connects to the internal DPE disks.
  • Page 85 0 X4 0 X4 6Gb SAS 6Gb SAS Switch Power Power Switch Power Power SPS B SPS A VNX-000121 Example of the VNX5300 File/Unified platform with seven DAEs (3U, 15 disks) interleaved Figure 75 cabling VNX5300 DAE cabling...
  • Page 86 40U rack having seven DAEs. In this example, the SAS ports on the VNX5300 platform DPE are labeled 0 and 1. SAS 0 is connected internally to the SAS expander that connects to the internal DPE disks.
  • Page 87 0 X4 0 X4 6Gb SAS 6Gb SAS Switch Power Power Switch Power Power SPS B SPS A VNX-000636 Example of the VNX5300 File/Unified platform with seven DAEs (3U, 15 disks) stacked Figure 76 cabling VNX5300 DAE cabling...
  • Page 88 EMC® VNX5300™ Hardware Information Guide EMC® VNX5300™ Hardware Information Guide...
