1 GETTING STARTED
c) CONNECTING TO THE RELAY

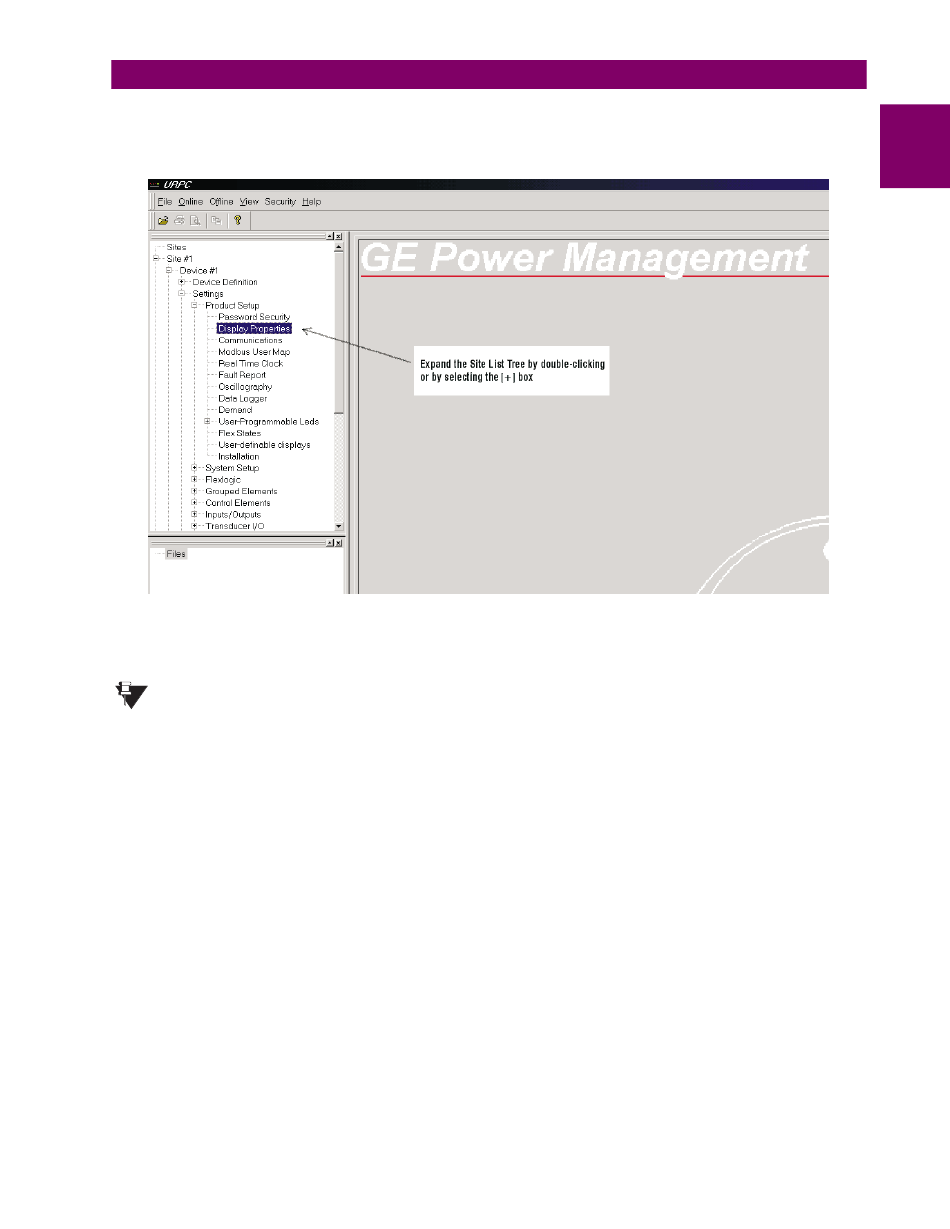

1. Select the Display Properties window through the Site List tree as shown below:
2. The Display Properties window will open with a flashing status indicator.
• If the indicator is red, click the Connect button (lightning bolt) in the menu bar of the Displayed Properties window.
3. In a few moments, the flashing light should turn green, indicating that URPC is communicating with the relay.
Refer to the HUMAN INTERFACES chapter in this manual and the URPC Software Help program for more
information about the URPC software interface.
NOTE
GE Power Management L90 Line Differential Relay
1.3 URPC SOFTWARE
1-7
