1 GETTING STARTED
Input Elements
Contact Inputs
Virtual Inputs
Analog Inputs
CT Inputs
VT Inputs
Remote Inputs
LAN
Programming
a) UR BASIC DESIGN
The UR is a digital-based device containing a central processing unit (CPU) that handles multiple types of input and output
signals. The UR can communicate over a local area network (LAN) with an operator interface, a programming device, or
another UR device.
The CPU module contains firmware that provides protection elements in the form of logic algorithms, as well as program-
mable logic gates, timers, and latches for control features.
Input elements accept a variety of analog or digital signals from the field. The UR isolates and converts these signals into
logic signals used by the relay.
Output elements convert and isolate the logic signals generated by the relay into digital or analog signals that can be used
to control field devices.
b) UR SIGNAL TYPES
The contact inputs and outputs are digital signals associated with connections to hard-wired contacts. Both 'wet' and
'dry' contacts are supported.
The virtual inputs and outputs are digital signals associated with UR internal logic signals. Virtual inputs include signals
generated by the local user interface. The virtual outputs are outputs of FlexLogic™ equations used to customize the UR
device. Virtual outputs can also serve as virtual inputs to FlexLogic™ equations.
The analog inputs and outputs are signals that are associated with transducers, such as Resistance Temperature Detec-
tors (RTDs).
The CT and VT inputs refer to analog current transformer and voltage transformer signals used to monitor AC power lines.
The UR supports 1 A and 5 A CTs.
The remote inputs and outputs provide a means of sharing digital point state information between remote UR devices.
The remote outputs interface to the remote inputs of other UR devices. Remote outputs are FlexLogic™ operands inserted
into UCA2 GOOSE messages and are of two assignment types: DNA standard functions and USER defined functions.
GE Power Management
CPU Module
Protective Elements
Input
Status
Logic Gates
Table
Device

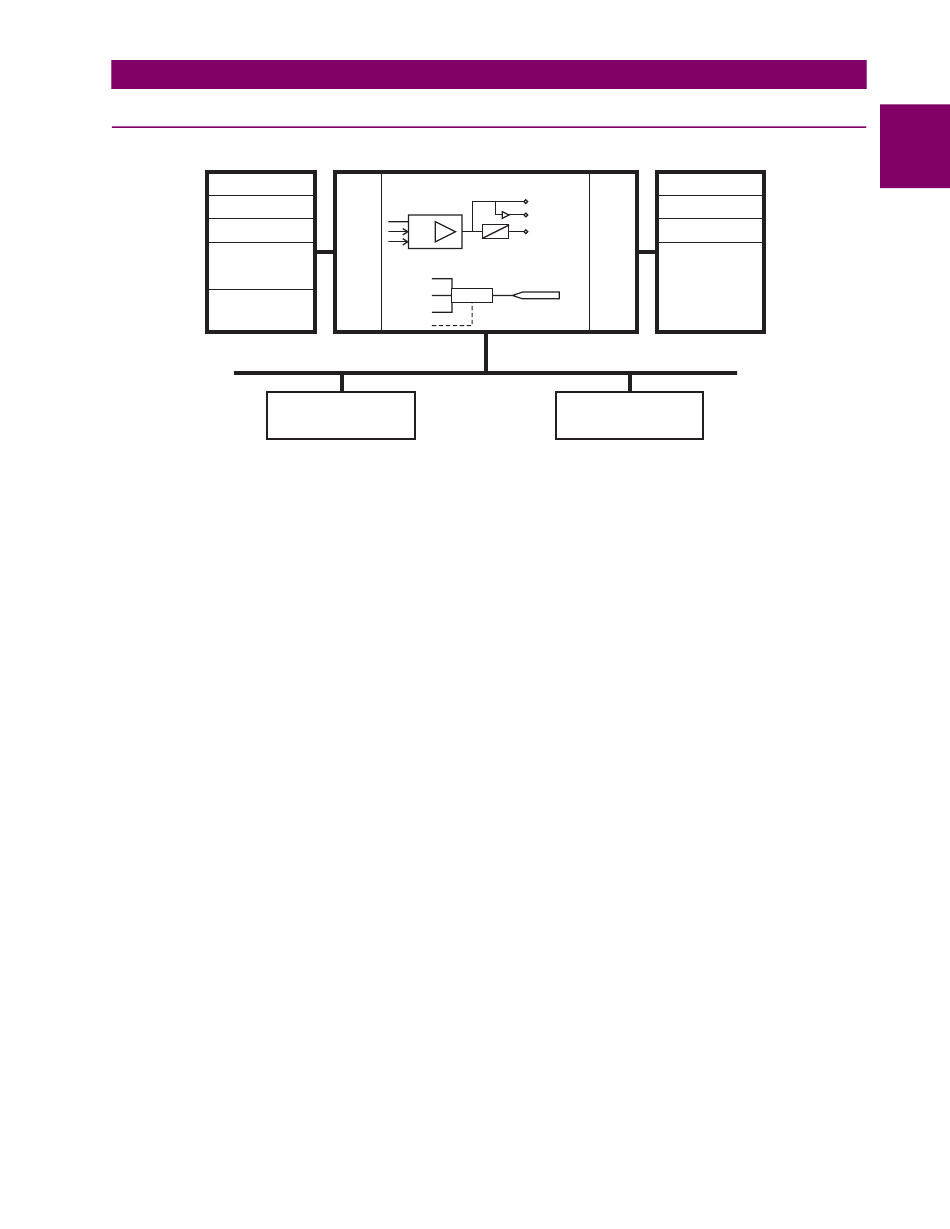

Figure 1–2: UR CONCEPT BLOCK DIAGRAM
L90 Line Differential Relay

1.2.2 UR HARDWARE ARCHITECTURE

Output Elements
Contact Outputs
Pickup
Virtual Outputs
Dropout
Output
Analog Outputs
Operate
Status
Remote Outputs
-DNA
Table
-USER
Operator
Interface
1.2 UR OVERVIEW
1
827822A1.CDR
1-3
