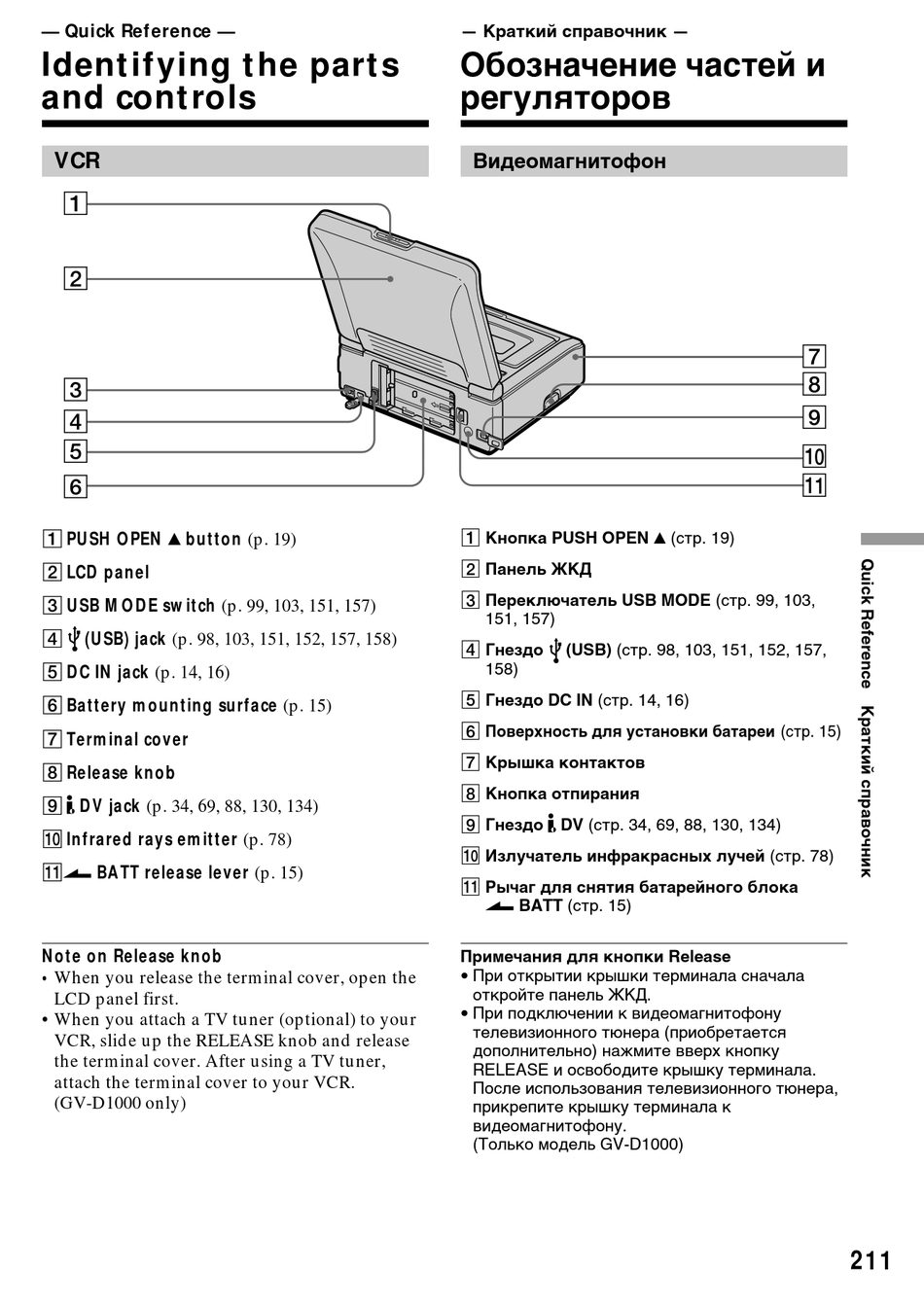

— Quick Reference —
Identifying the parts
and controls
VCR
1
2
3
4
5
6
1 PUSH OPEN v button (p. 19)
2 LCD panel
3 USB MODE switch (p. 99, 103, 151, 157)
4 (USB) jack (p. 98, 103, 151, 152, 157, 158)
5 DC IN jack (p. 14, 16)
6 Battery mounting surface (p. 15)
7 Terminal cover
8 Release knob
9 DV jack (p. 34, 69, 88, 130, 134)
q; Infrared rays emitter (p. 78)
BATT release lever (p. 15)
qa
Note on Release knob
• When you release the terminal cover, open the
LCD panel first.
•When you attach a TV tuner (optional) to your
VCR, slide up the RELEASE knob and release
the terminal cover. After using a TV tuner,
attach the terminal cover to your VCR.
(GV-D1000 only)
1
2
3
4
5
6
7
8
9
q;
qa
7
8
9
q;
qa
v
211
