Wiring Diagram

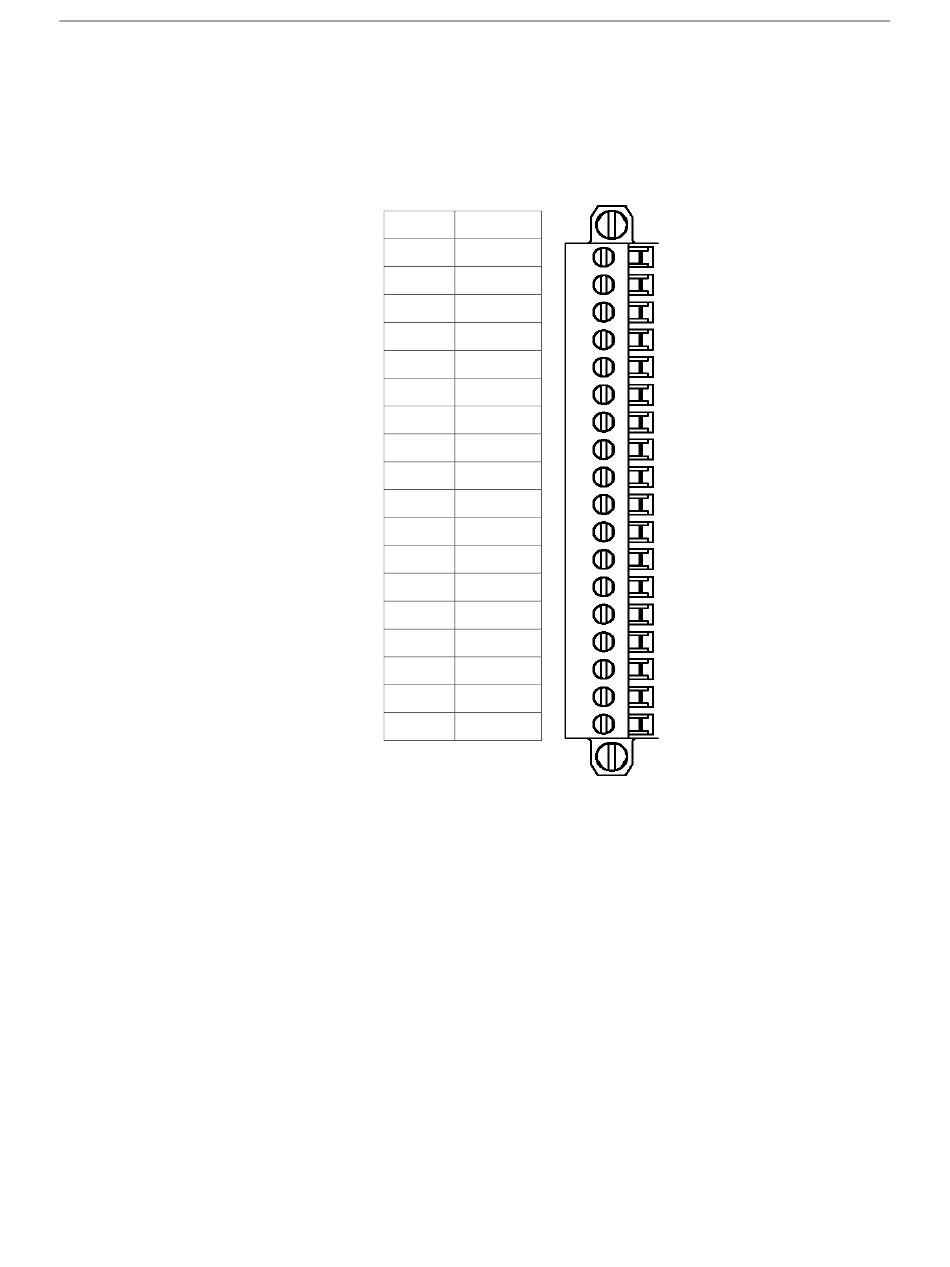

Wire the module using the following images, which explain the layout of the
single-row, 18-pin terminal block, and the associated wiring diagram for the
output signals, and the two, 24 VDC field power terminal input pins for the
2085sc-OF8 module:
RTB
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Name
V/I OUT0
RTN0
V/I OUT1
RTN1
V/I OUT2
RTN2
V/I OUT3
RTN3
V/I OUT4
RTN4
V/I OUT5
RTN5
V/I OUT6
RTN6
V/I OUT7
RTN7
+24V DC
COM DC
