Chapter 3: Configuring the 2085sc-OF8 Using CCW
User's Manual Pub. 0300308-02 Rev. A
•

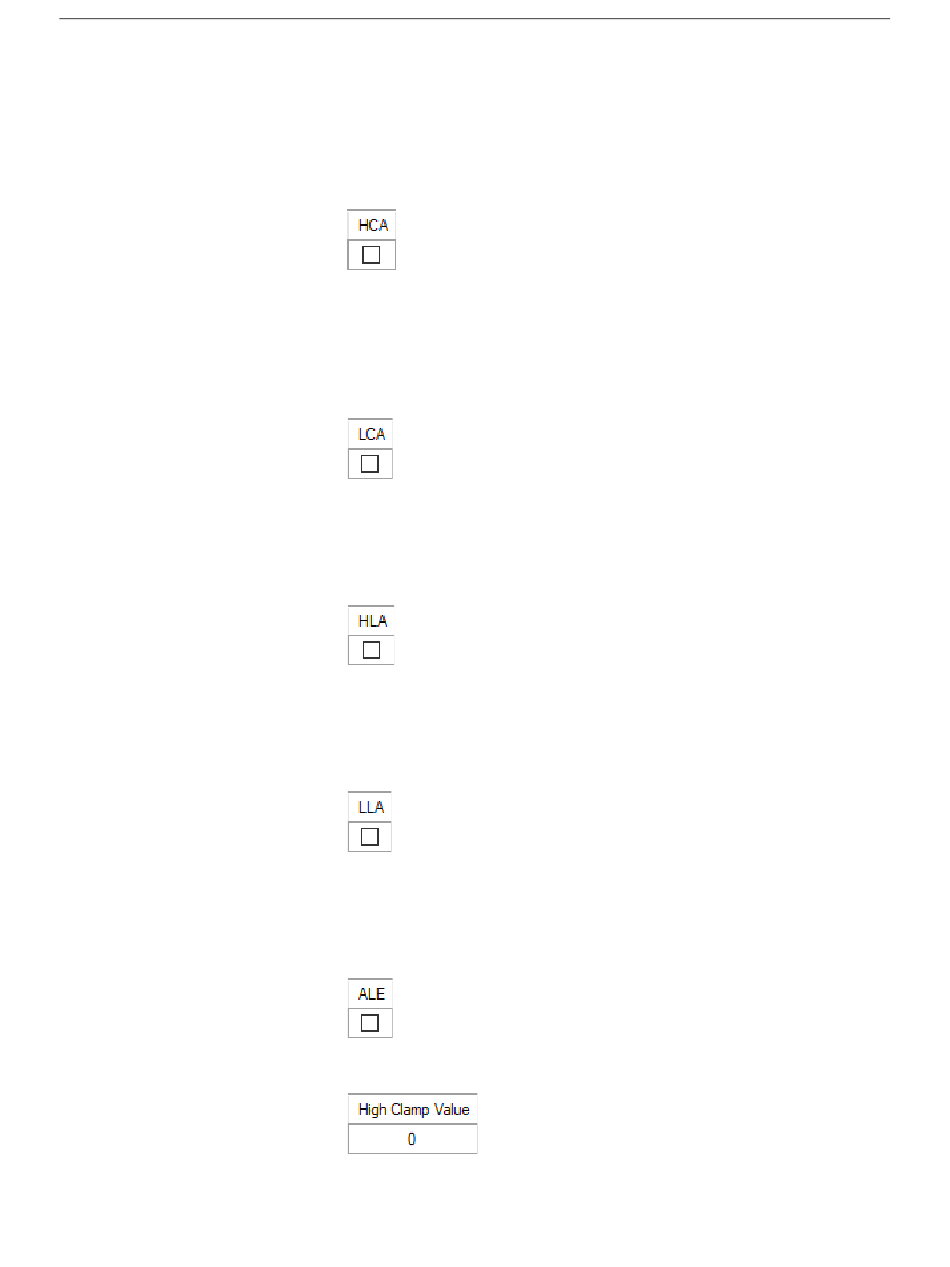

HCA. High Clamp Alarm Enable.
To trigger the channel Over Range Alarm at the user-defined High
Clamp Value, enable the HCE feature together to take effect.
Otherwise, the alarm can be triggered at the High Range or Limit
value based on the Data Format and Range Type selections.
Default is Disabled:
LCA. Low Clamp Alarm Enable.
•
To trigger the channel Under Range Alarm at the user-defined Low
Clamp Value, enable the LCE feature together to take effect.
Otherwise, the alarm will be triggered at the Low Range or Limit
value based on the Data Format and Range Type selections. Default
is Disabled:
•
HLA. High Limit Alarm Enable.
To trigger the channel Over Range Alarm at the High Limit value
based on the Data Format and Range Type selections, enable this
feature with the HCE feature disabled to take effect. Default is
Disabled:
LLA. Low Limit Alarm Enable.
•
To trigger the channel Under Range Alarm at the Low Limit value
based on the Data Format and Range Type selections, enable this
feature with the LCE feature disabled to take effect. Default is
Disabled:
•
ALE. Alarm Latch Enable.
Enable this feature to latch channel alarms like Over Range, Under
Range and LD error even after the output is normal. It can only be
cleared using the Unlatch Alarm bit on the Output Variable,
_IO_Xx_AO_08 or _IO_Xx_AO_09.
High Clamp Value. Specifies high value at which output is
•
clamped:
