Chapter 2: Installation and Wiring
Mounting
WARNING
User's Manual Pub. 0300308-02 Rev. A
Keeping module free of debris and avoiding overheating:
•
Do not remove protective debris strip until after the module and
all other equipment near the module is mounted and the wiring is
complete.
•
Once wiring is complete, and the module is free of debris,
carefully remove protective strip.
•
Failure to remove strip before operating can cause overheating.
2.4.1 Minimum Spacing
Maintain spacing from enclosure walls, wire ways, adjacent equipment, etc.

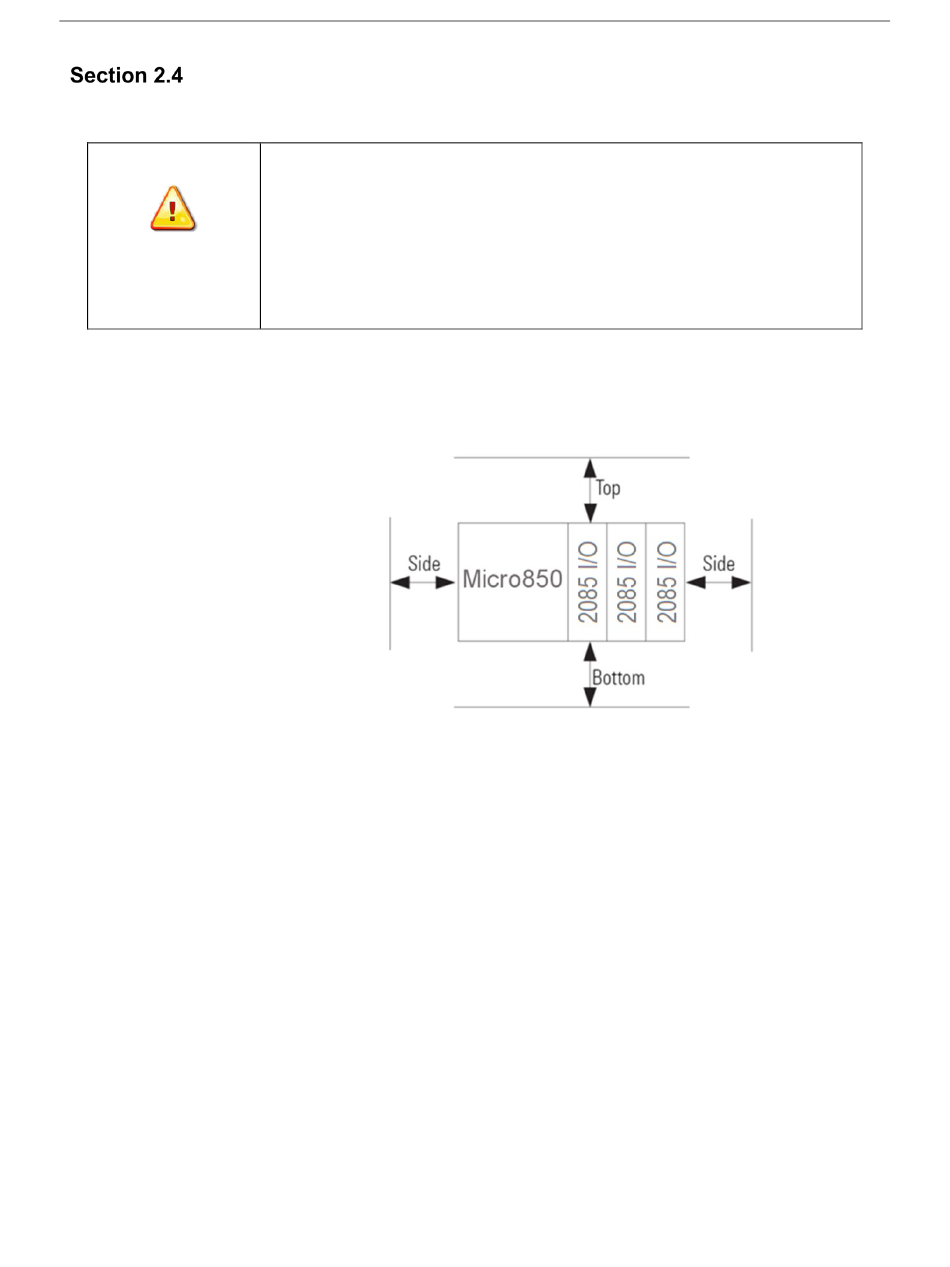

Allow 50.8 mm (2 in.) of space on all sides for adequate ventilation, as shown:
2.4.2 Parts List
Your package contains one Micro800 2085sc-OF8 (Analog Output) Plug-in
Module and one Quick Start Guide.
