Setting Configuration
Parameters Using
MCC
NOTE
Chapter 3: Configuring the 2085sc-OF8 Using CCW

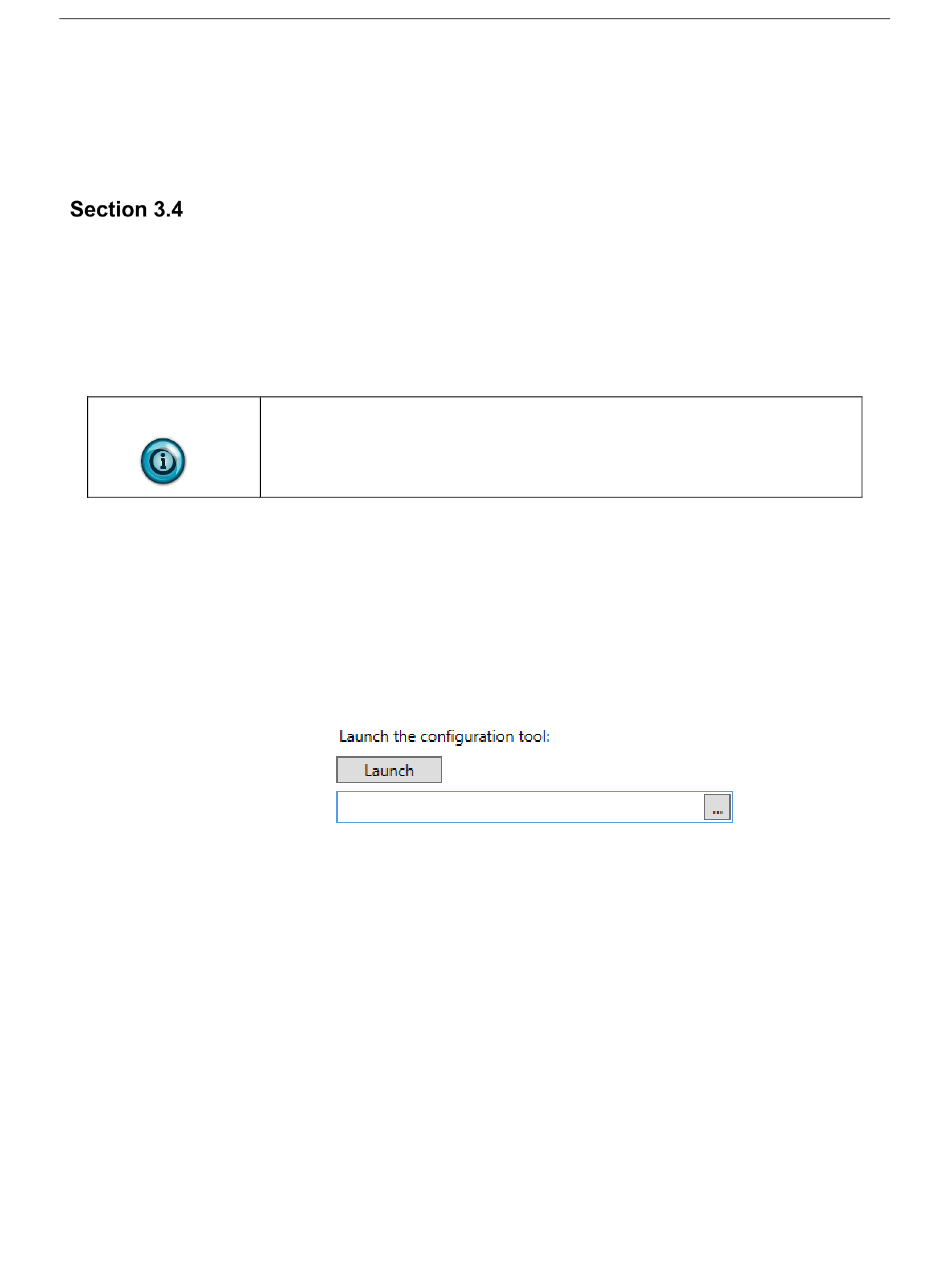

• Launch. Use to populate the file path field. The file path lets you
enter the file path for opening the MCC utility program to assist you
in configuring the module. Use the Browse ellipse to navigate to
where the utility is stored. Then click the Launch button to start the
utility.
You may create the configuration for each channel using the utility provided by
Spectrum Controls, Inc. You download the utility from the Spectrum Controls
website at www.spectrumcontrols.com.
It is recommended that when you generate your configuration, that you
use the Binary Radix selection. If you choose the Decimal Radix, the
utility is unable to work with negative values.
You may create the configuration for each channel using the MCC utility
provided by Spectrum Controls, Inc. You download the utility from the Spectrum
Controls website at https://www.spectrumcontrols.com.
To use the MCC utility:
1. The first time you configure a Spectrum Controls 2085 analog module,
you must provide the file path of the utility to the CCW software.
Navigate to the CCW Configuration Tab and click in the file path
textbox below the Launch button.
The Browse button appears.
2. Click the button, navigate to the directory where you installed the CCW
program, and select the ModuleConfigConverter tool located in the
Spectrum Tool directory:
Example. C:\Program Files (x86)\Rockwell
Automation\CCW\SpectrumTool
User's Manual Pub. 0300308-02 Rev. A
3-7
