Chapter 1
Module Overview
This chapter covers the following topics:
•
General description
•
Output specifications
•
Data formats
•
Hardware features
•
System overview and module operation
The Micro800
TM

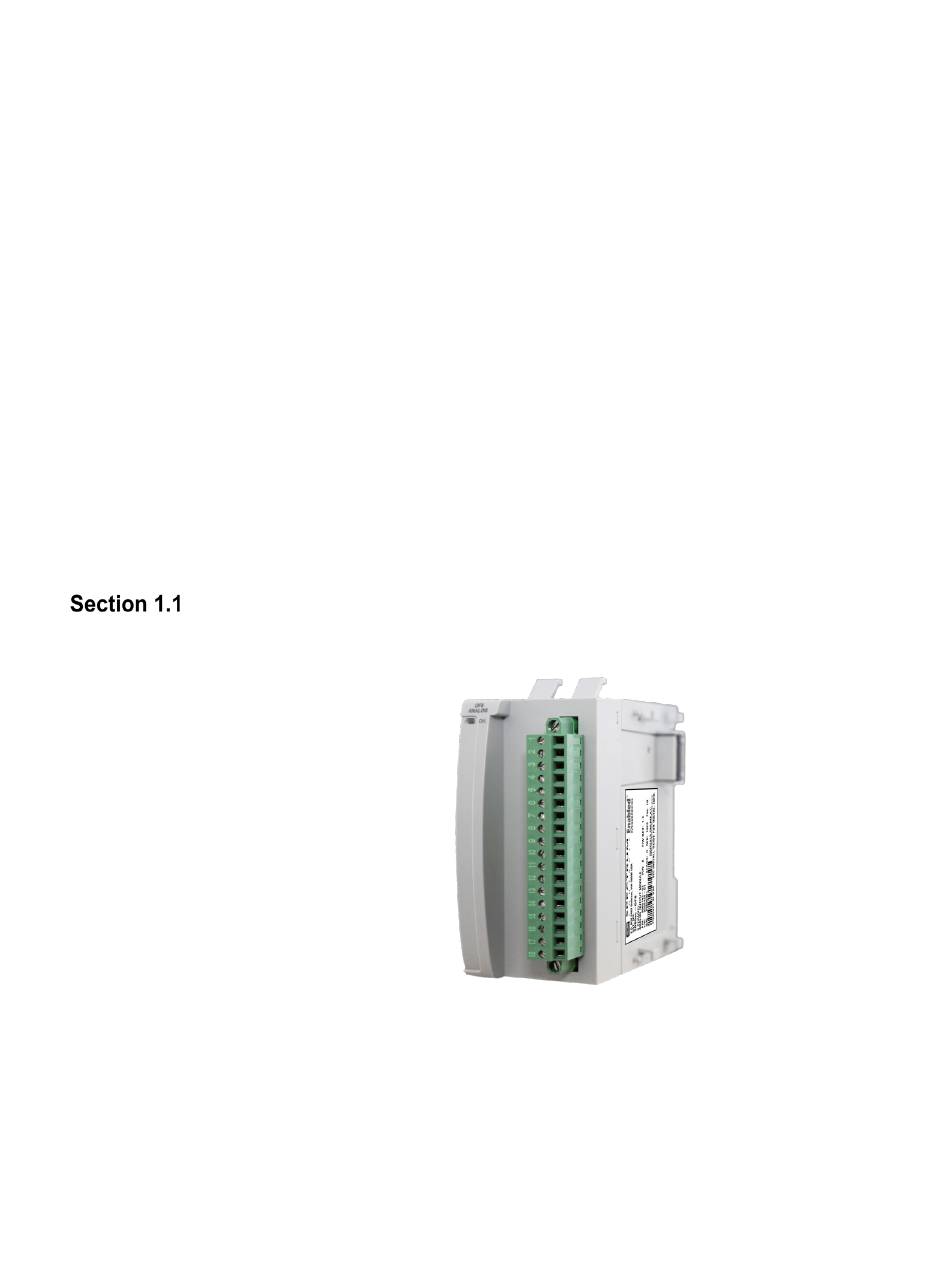

8-Channel Analog Output Module is an 8-point analog output
module designed to expand the local I/O capability of Rockwell Automation
Micro850 and Micro870 Systems over its Expansion I/O buses. The minimum
system requirement in which an Expansion I/O Module can be installed is a
Micro850 or Micro870 Controller and a controller power supply.
The number of 2085sc-OF8 modules that can be installed with a Micro850/870
PLC is based on the current controller firmware revision and CCW software
revision.
