Chapter 3: Configuring the 2085sc-OF8 Using CCW
The valid range for the Decimal Radix indication is from 0 to 65535. It does not accept negative values. If
3
you need to receive negative values, select the Hex Radix option instead.
User's Manual Pub. 0300308-02 Rev. A
The same variables can also be found on the CCW Global Variables Tab:

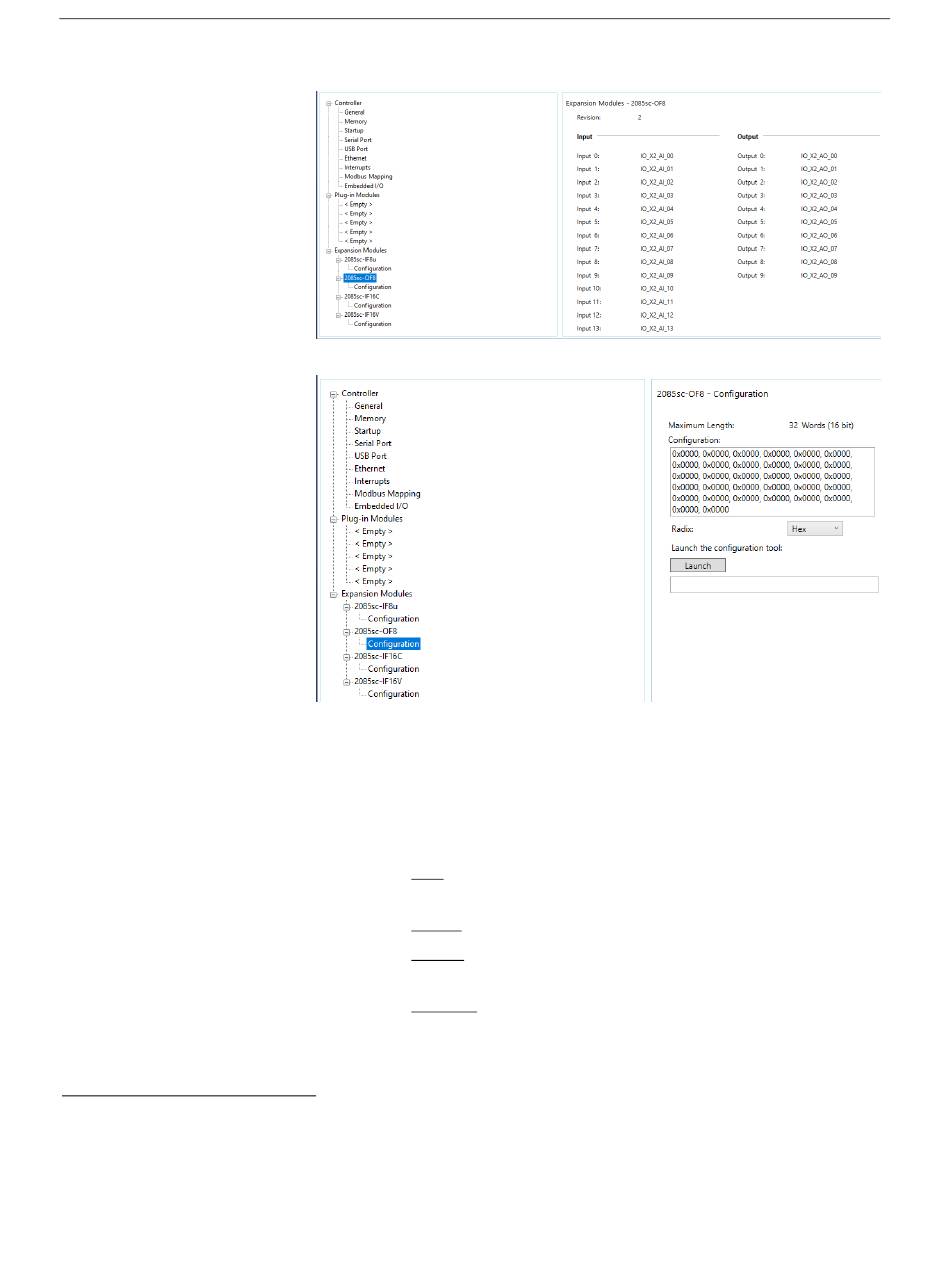

3. To view the configuration tab, click the Configuration option:
Maximum Length. Shows maximum number of words available.
Each word is 16-bit.
Configuration. The textbox lists out the whole module configuration
value.
Radix. The drop-down menu contains the following number formats
for indicating module configuration value. Options are:
-
Hex. Default option. Characters represented as hexadecimal.
Example: 0×7FFF as 32767 in decimal format.
-
ASCII: Characters represented as ASCII. Example: \7F\FF
-
Binary: Characters represented as 0 and 1. Example:
0111111111111111
-
Decimal. Characters represented as decimals. Example:
32767
