Section 2.5 Field Wiring Connections; Wiring Diagram - Spectrum Controls Micro800 2085-IF16C-SC User Manual

Section 2.5
Field Wiring
Connections
WARNING
RTB1# Name
1 IN0+
2 IN0-
3 IN1+
4 IN1-
5 IN2+
6 IN2-
7 IN3+
8 IN3-
9 IN4+
10 IN4-
11 IN5+
12 IN5-
13 IN6+
14 IN6-
15 IN7+
16 IN7-
17 CJC1+
18 CJC1-

Wiring Diagram

Hazard of damage to the terminal connector.
The Spectrum Controls RTB hold down and terminal screws must be
tightened by hand using the guidelines. They must not be tightened using a
power tool. Use a screwdriver of 0.8 × 2 mm and tighten to no more than
0.25 N-m (2.2 in-lbs.) torque.
Failure to follow these guidelines may result in damage to your connector.

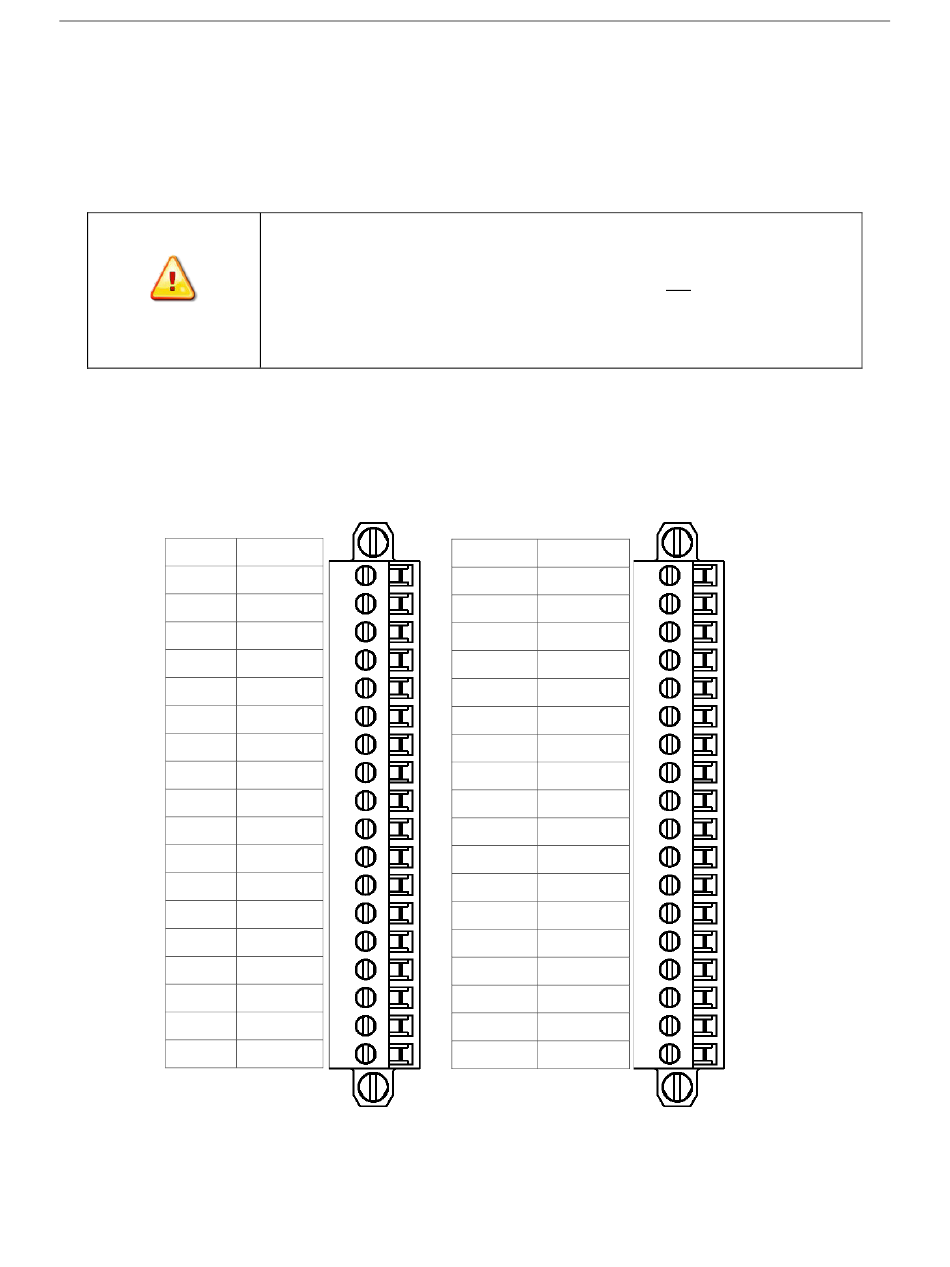

Wire the module using the following images, which explain the layout of each 2-
row, 18-pin terminal block, and the associated wiring diagrams for the various
input signals and the two modules.
2085-IT8-SC
Chapter 2: Installation and Wiring
RTB2# Name
19 CJC2+
20 CJC2-
21 NC
22 NC
23 NC
24 NC
25 NC
26 NC
27 NC
28 NC
29 NC
30 NC
31 NC
32 NC
33 NC
34 NC
35 NC
36 NC
User's Manual Pub. 0300322-01 Rev. B
