3-8
Chapter 3: Configuring the 2085sc-OF8 Using CCW
User's Manual Pub. 0300308-02 Rev. A

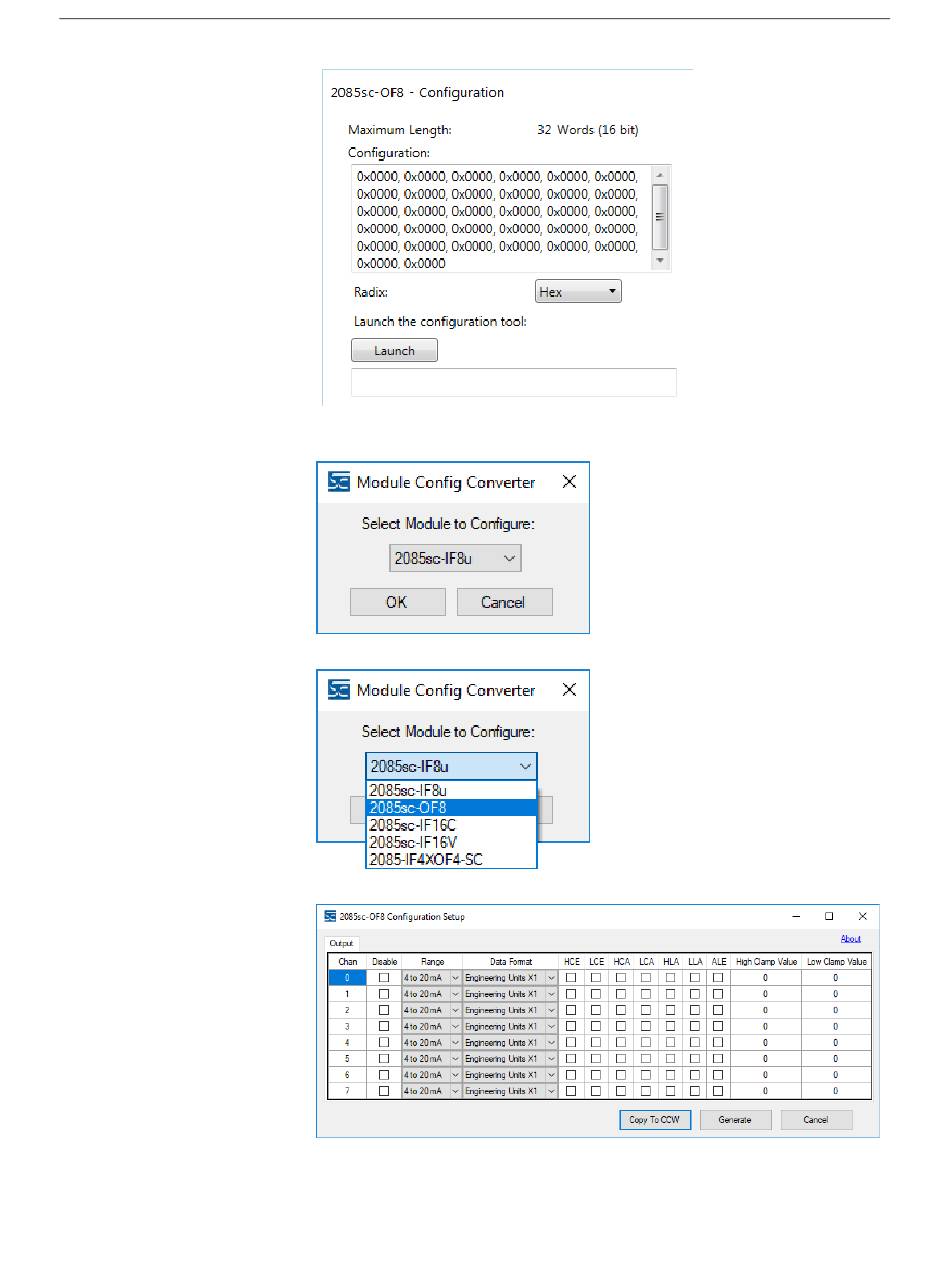

3. To run the tool, click Launch. The Module Config Converter dialog
appears:
4. Select the 2085sc-OF8 module from the drop-down menu, and click OK:
The 2085sc-OF8 Configuration Setup dialog appears:
