2.4.3 Module Description

6
5

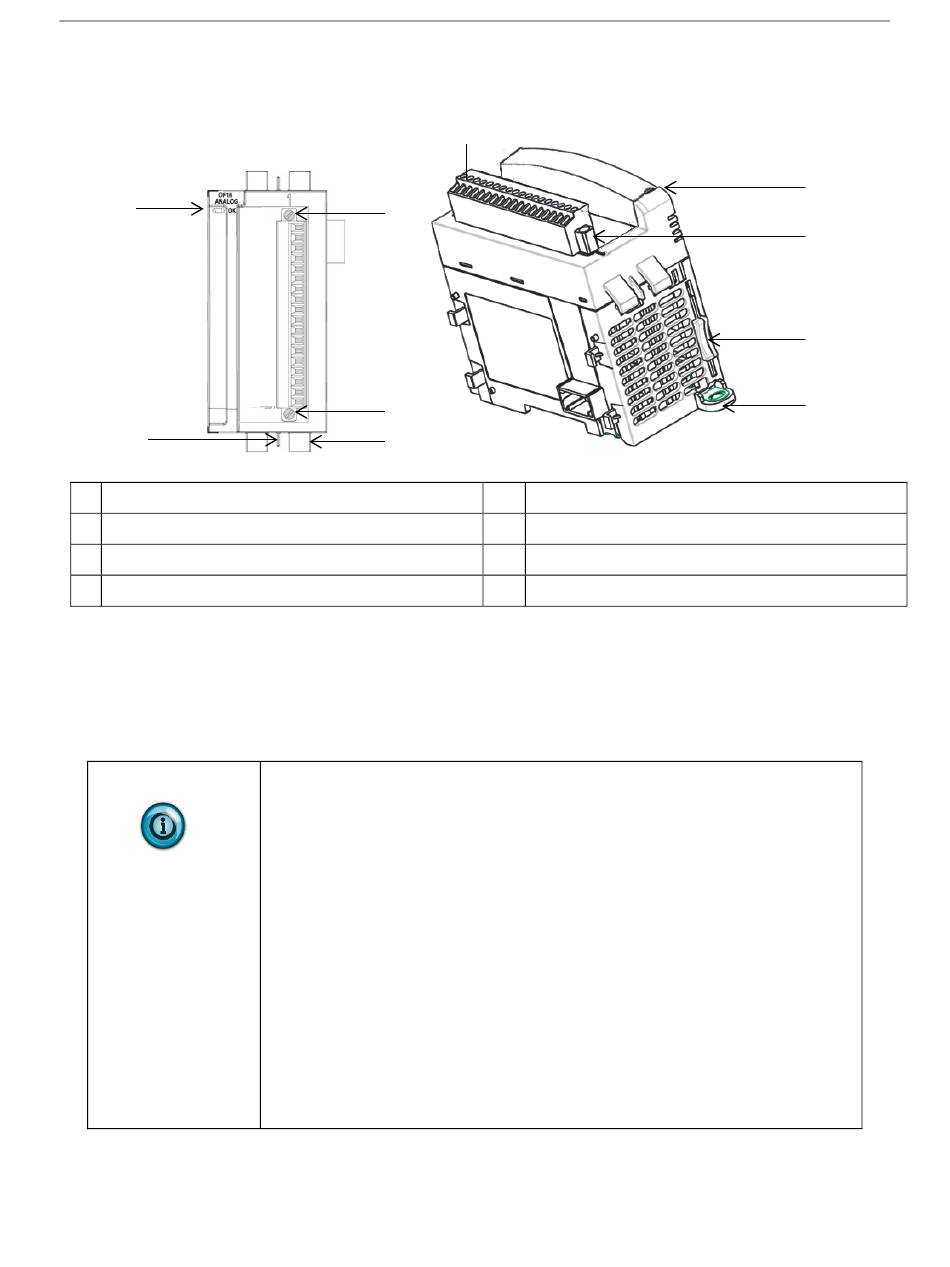

Description
1 Mounting screw hole/mounting foot
2 Removable Terminal Block (RTB)
3 RTB hold down screws
You can choose to wire the expansion I/O module before installing it next to the
controller or wire it once the module is secured in place.
Place the module next to the controller against the panel where you are mounting
it. Make sure the controller and module are spaced properly.
NOTE
2
3
3
1
• This equipment is considered Group 1, Class A industrial
equipment according to IEC/CISPR 11. Without appropriate
precautions, there may be difficulties with electromagnetic
compatibility in residential and other environments due to
conducted and radiated disturbance.
• Be careful when stripping wires. Wire fragments that fall into the
controller could cause damage. Once wiring is complete, make
sure the controller is free of all metal fragments before removing
the protective debris strip.
• Do not wire more than 2 conductors on any single terminal.
• If you insert or remove the expansion I/O module while power is
on, an electrical arc can occur. This could cause an explosion in
hazardous location installations. Be sure that power is removed or
the area is nonhazardous before proceeding.
• Cable length should be less than 10 meters.
Chapter 2: Installation and Wiring
Description
4 Module interconnect latch
5 DIN rail mounting latch
6 I/O Status LED
