Section 2.5
Field Wiring
Connections

Wiring Diagram

WARNING

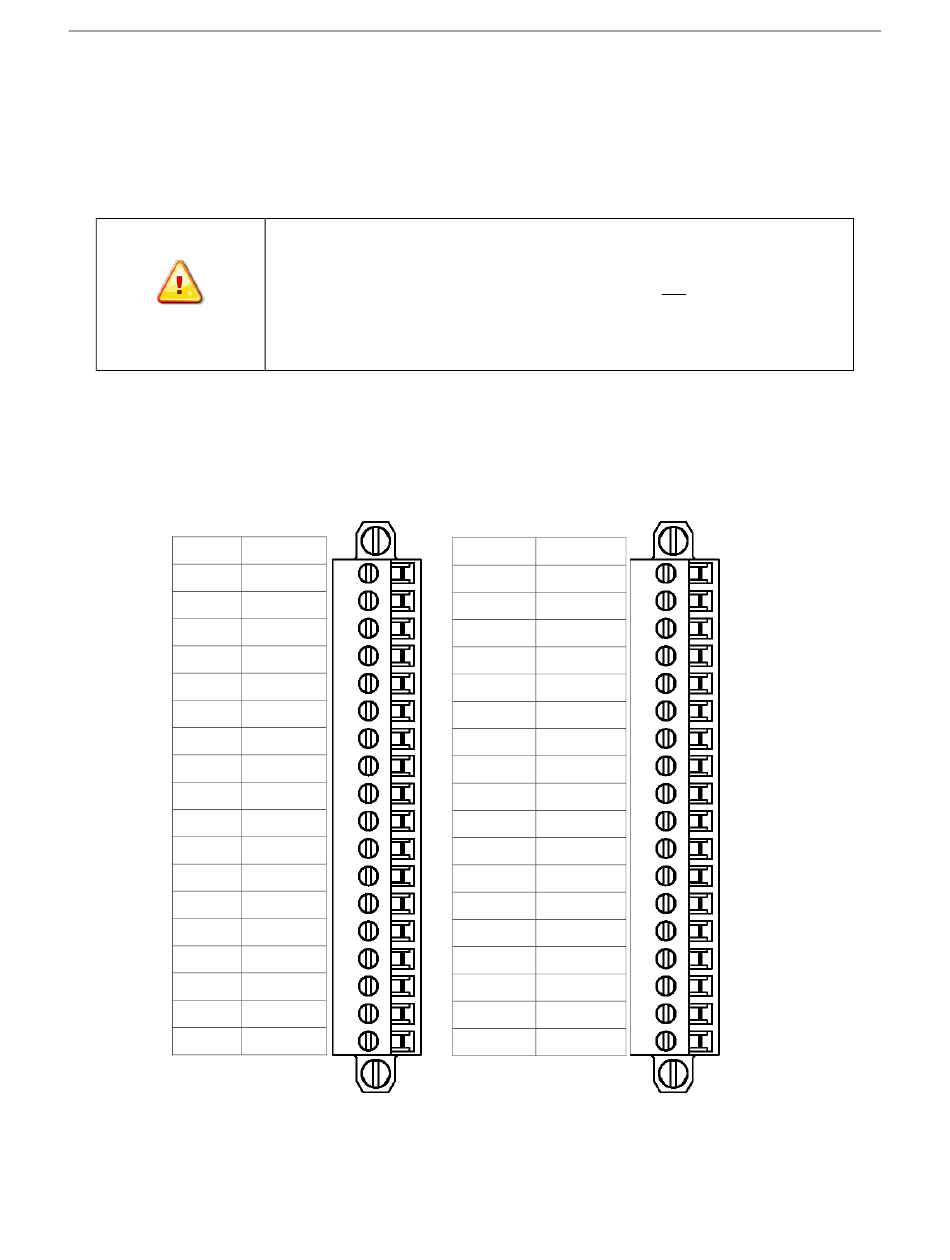

Wire the module using the following images, which explain the layout of each 2-
row, 18-pin terminal block, and the associated wiring diagrams for the various
input signals and the two modules.
RTB1#
Name
1
IN0+
2
IN0-
3
IN1+
4
IN1-
5
IN2+
6
IN2-
7
IN3+
8
IN3-
9
IN4+
10
IN4-
11
IN5+
12
IN5-
13
IN6+
14
IN6-
15
IN7+
16
IN7-
17
CJC1+
18
CJC1-
Hazard of damage to the terminal connector.
The Spectrum Controls RTB hold down and terminal screws must be
tightened by hand using the guidelines. They must not be tightened using a
power tool. Use a screwdriver of 0.8 × 2 mm and tighten to no more than
0.25 N-m (2.2 in-lbs.) torque.
Failure to follow these guidelines may result in damage to your connector.
2085-IT8-SC
Chapter 2: Installation and Wiring
RTB2#
Name
19
CJC2+
20
CJC2-
21
NC
22
NC
23
NC
24
NC
25
NC
26
NC
27
NC
28
NC
29
NC
30
NC
31
NC
32
NC
33
NC
34
NC
35
NC
36
NC
User's Manual Pub. 0300322-01 Rev. A
2-7
