Chapter 3: Configuring the 2085sc-OF8 Using CCW
5. View and specify the following options as needed. See Channel
Configuration Bit locations listed later in this section for details on the
settings for every configuration bit:

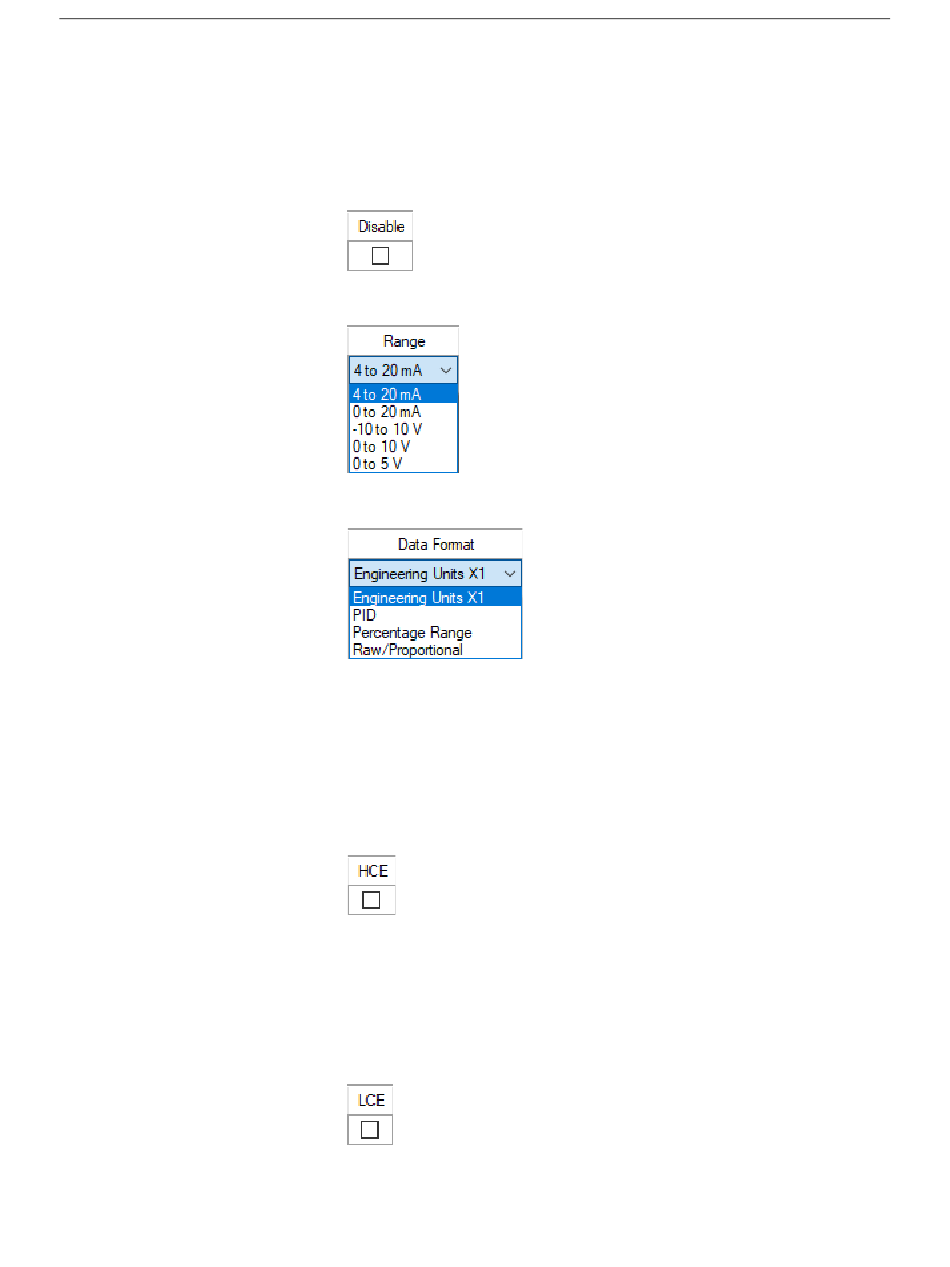

Channel. Lists number of input channel from 0 to 7. Click to select.
•
Disable. Specifies whether to disable use of this channel. Enabled
•
by default (checkmark not selected):
• Range. Specifies which Range (voltage or current) to use. Select
type from drop-down list. 4 to 20 mA input is default:
Data Format. Specifies which data format to use for reporting input
•
values. Default is Engineering Units X1:
• HCE. High Clamp Enable. Enables and disables the maximum
output to be clamped at the user-defined High Clamp Value for the
channel. When the HCE check box is selected, the High Clamp
Value is enabled.
When the HCE check box is cleared, the High Clamp Value is
disabled, and the maximum output is clamped at the Hight Limit
value based on the Data Format and Range Type selections.
The default is Disabled (cleared):
LCE. Low Clamp Enable. Enables and disables the minimum output
to be clamped at the user-defined Low Clamp Value for the channel.
When the LCE check box is selected, the Low Clamp Value is
enabled. When the LCE check box is cleared, the Low Clamp Value
is disabled, and the minimum output is clamped at the Low Limit
value based on the Data Format and Range Type selections.
The default is Disabled (cleared):
