3-2

Chapter 3: Configuring the 2085sc-OF8 Using CCW

User's Manual Pub. 0300308-02 Rev. A

Spectrum Controls, Inc. also provides a custom configuration software utility that

you may use to provide configuration settings to the profile.

You use the module's AOP to configure your module. The AOP is available in

the CCW software. If not available, or a newer revision is released, see Appendix

A about how to manually import a module AOP to CCW.

To view information about the AOP:

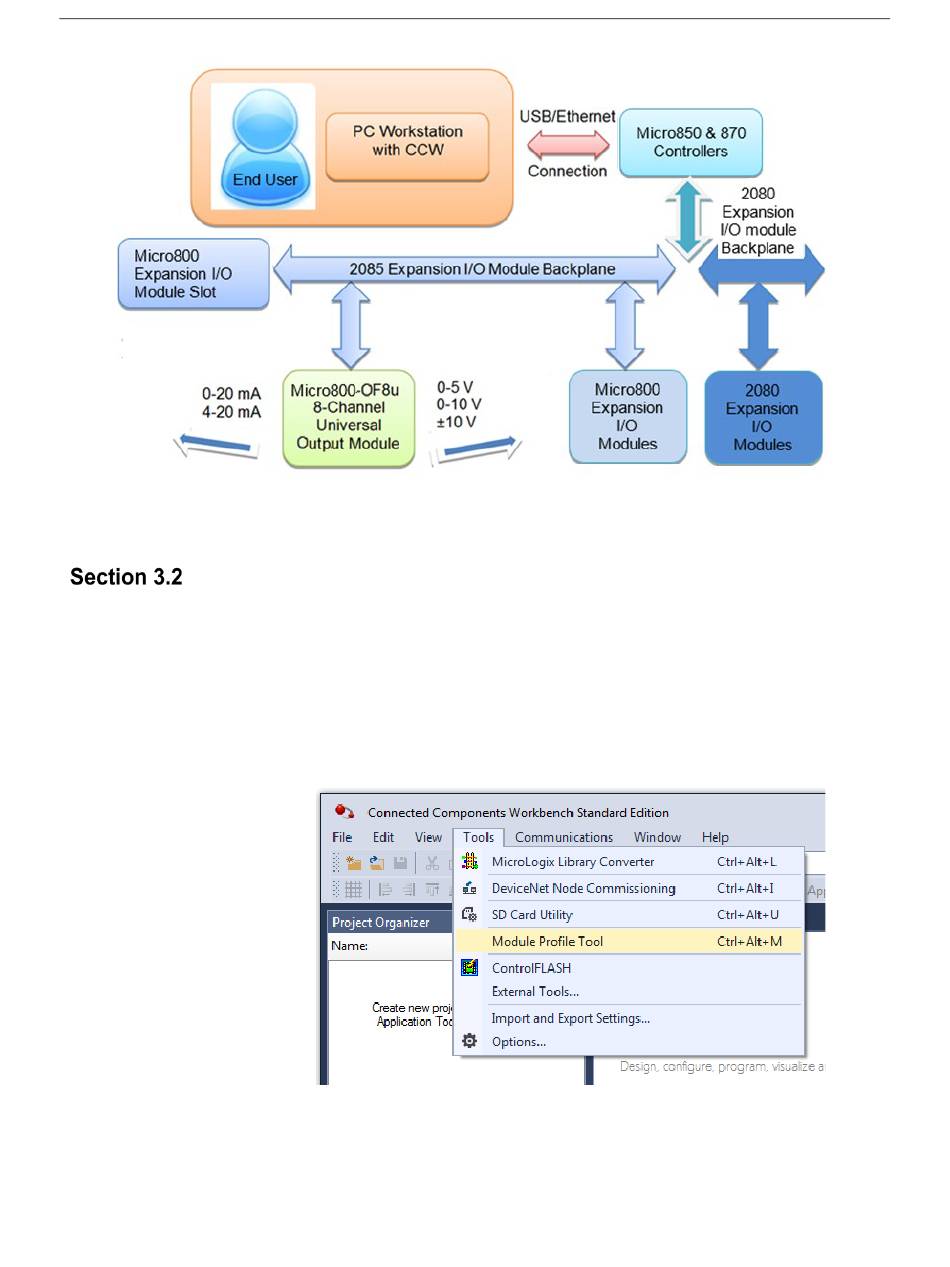

1. Use RA's Module Profile Tool 2.0. This tool may be launched from

within CCW by selecting the Module Profile Tool option from the

CCW Tools menu:

2. When prompted by Windows User Account Control, to confirm that you

wish to run the program, click Yes button.

The Module Profile Tool window appears:
