Operating manual - English

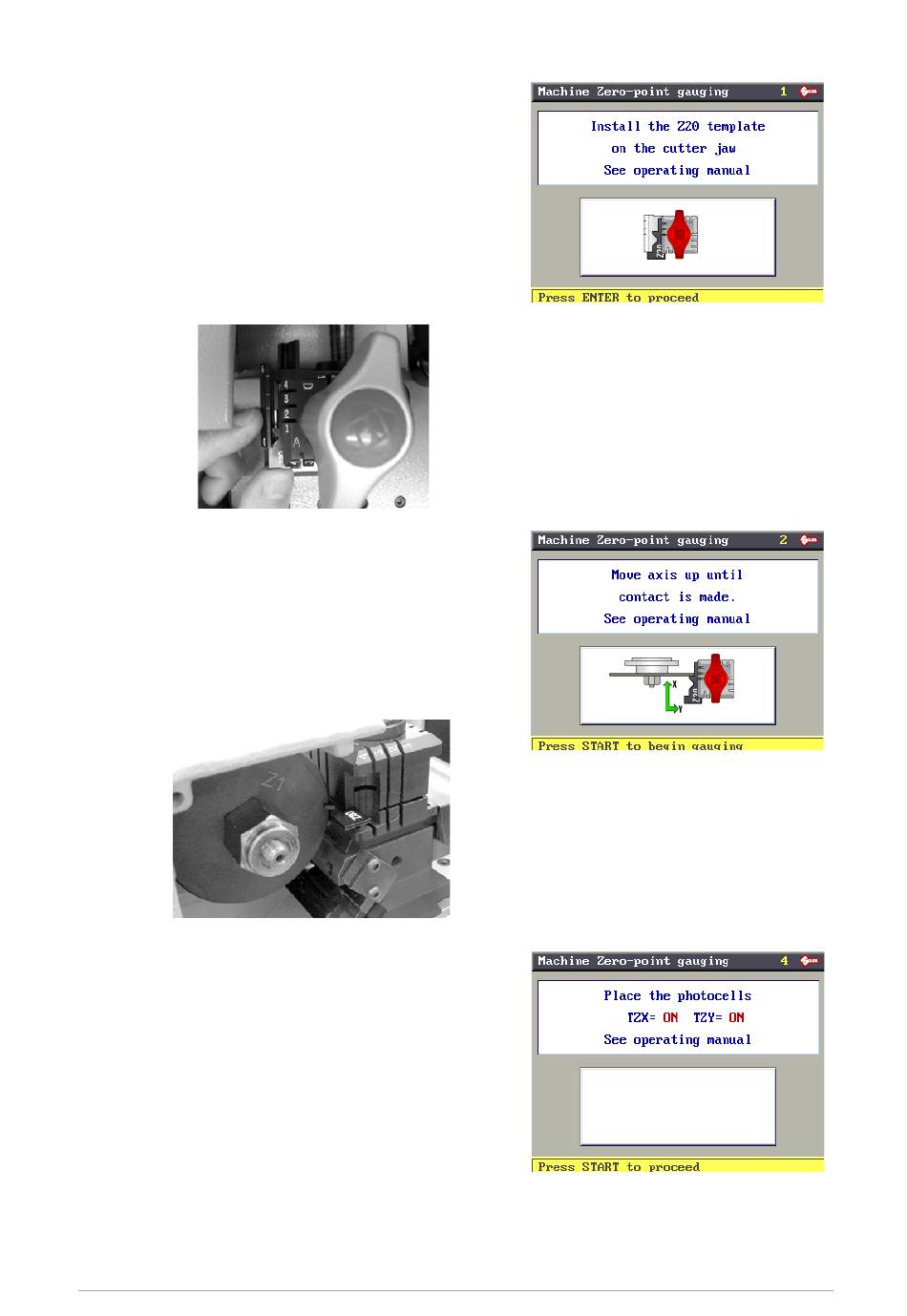

Press ENTER to continue, the display shows:
Read the instructions on the display and fit the Z20
template into the cutter side of the clamp, with Stop
0 as the reference.
Fig. 34
Lower the gauge and press ENTER to continue.
The display shows:
Read th e i nstructions on the di splay, move the
carriages ma nually so th at the Z20 template is
taken into contact with the Z1 template (fig. 35) in
the vertical zone after the stop, up against the front
and up against the stem.
Fig. 35
When th e give n position is reached, lo wer th e
safety shield and press START.
First the display will show: "Positioning" (**)
And then:
