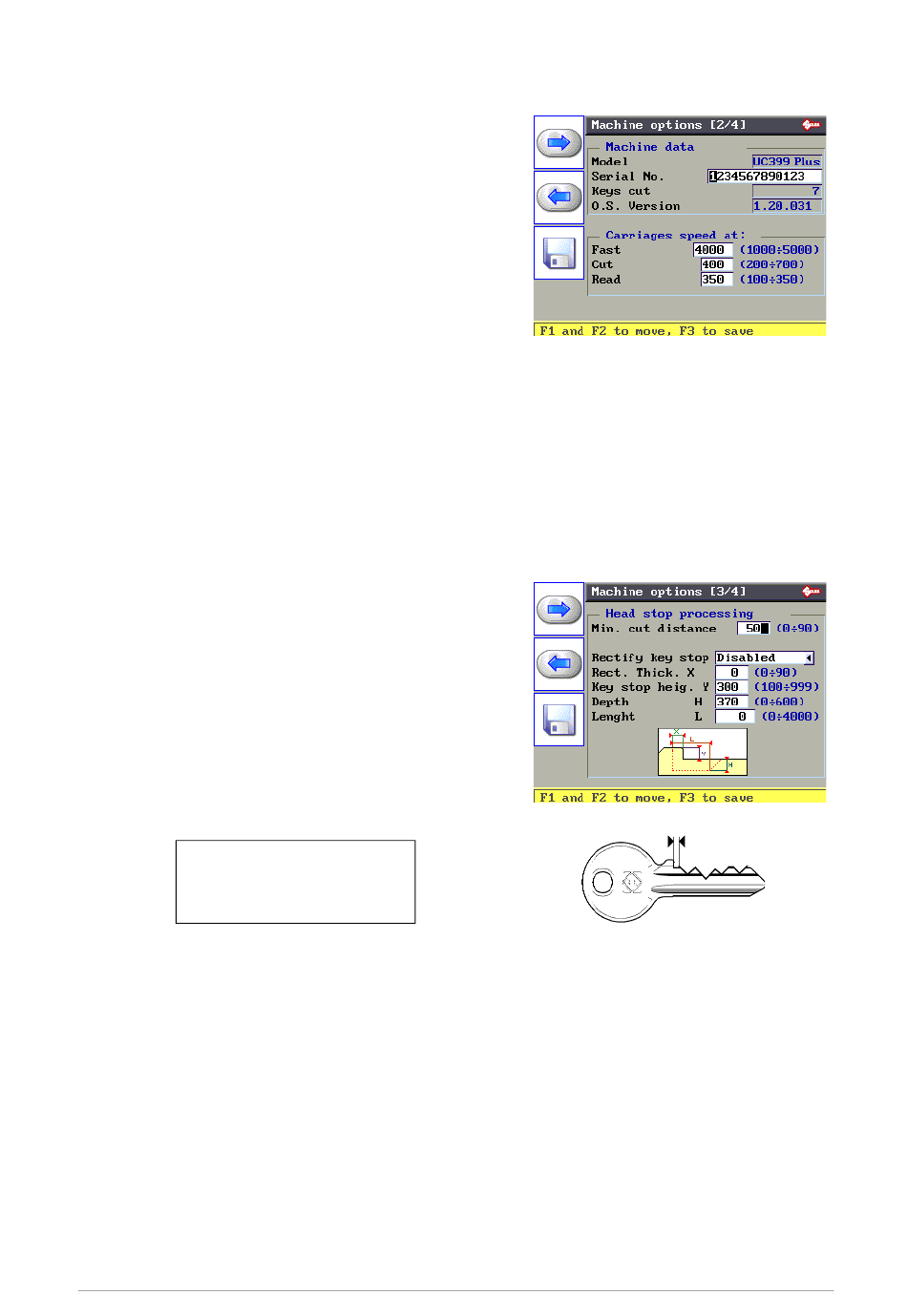

Machine options
the display shows: Machine data
Model:
machine model.
Serial No:
the serial number corresponding to th at on the ID plate
located on the back of the machine.
Keys cut:
cutting completed.
Operating System Version:
version of the machine operating system.
Carriage speed
Fast speed:
the speed at which the c arriages appr oach the cutting
zone before cutting is started. The set sp eed is that for
ideal cond itions, but the oper ator can change it from a
minimum of 1000 to a maximum of 5000.
Cutting speed:
corresponds to the speed at which the carriage advances during key-cutting. The set speed (400) is that for
ideal conditions, but the operator can change it from a minimum of 200 to a maximum of 700.
Reading speed:
Recommended reading speed is 350; the operator can change from a minimum of 100 to a maximum of 350.
Machine options
The display shows: Head stop processing
Min. cut distance:
The n umber shown on the
represents the X axis di stance b etween th e ke y
blank shoulder and the beginning of the first cut (fig.
42).
This function is extremely important with keys th at
require cuts on both si des a s it ensures precise
positioning on the key 2nd side.
The set figure is 50 hundredths of a mm, which can be
varied between min.0 - max. 90 hundredths of a mm.
ATTENTION: settings that are too high may render
precise cuts impossible, with the following message
on the display:
MIN. Parameter of
DISTANCE FROM STOP
is incompatible with
Rectify Key Stop:
The machine does not normally allow for key stop rectification.
However, i t is poss ible, when necessary, to rectify the stop by removing a part of it, and arrange cutting
according to the new key stop created.
If the operation is enabled, 4 items are required:
Rectification thickness X:
thickness of the part to be removed, quantified in hundredths of a mm (min. 0 - max.90)
Key stop height Y:
height of the stop read by a gauge on the key
hundredths of a mm (min.100 - max.999).
Depth H:
depth of the par t to be removed, quantified in hundredths of a mm, relating to the key blank meas urements
(min.0 - max.600).
Length L:
distance in hundredths of a mm of the axis from the cutter, relating to X (min.0 - max.4000).
