Silca Unocode 399 Plus Operating Manual page 19

Operating manual - English
ATTENTION: the knob is gauged so that it do not exert too
much pressure for closing (if pressure is too high it only idles),
which would damage the key and the parts of the clamp
(including the knob).
To turn the clamps:
With loosened handle (E) a light rotation of the clamp is
sufficient (gripping by the 2 jaws) to turn it to the required
side. Alignment is automatic and guaranteed by the mobile
pressure device (D5) (fig. 14).
Note: before starting to cut a key the V100 clamp gauge goes automatically to the idle position so there
is no need to lower it.
U
SING PINS
Pins must be used in the case of keys with special profiles, to stop the keys
from moving and vibrating.
pin
4
3
2
1

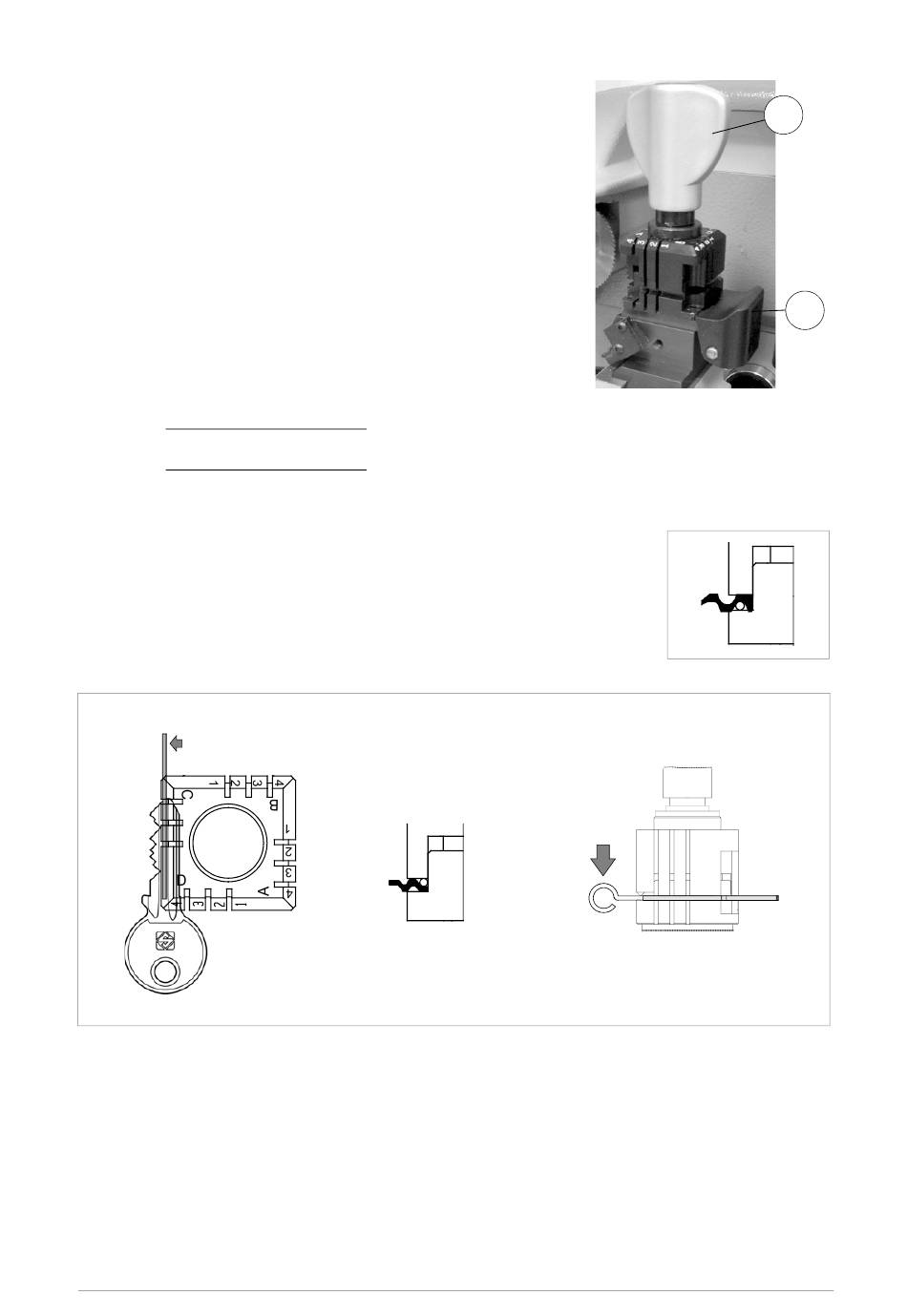

Fig. 16
Fig. 14
Attention: the pin
should be placed
vertically
