ACCESSORY FUNCTIONS FOR "COPY BY DATA CARD"

a) Data Card Decoding
FUNCTION NOT AVAILABLE ON THIS
MACHINE
b) Manual Adjustments

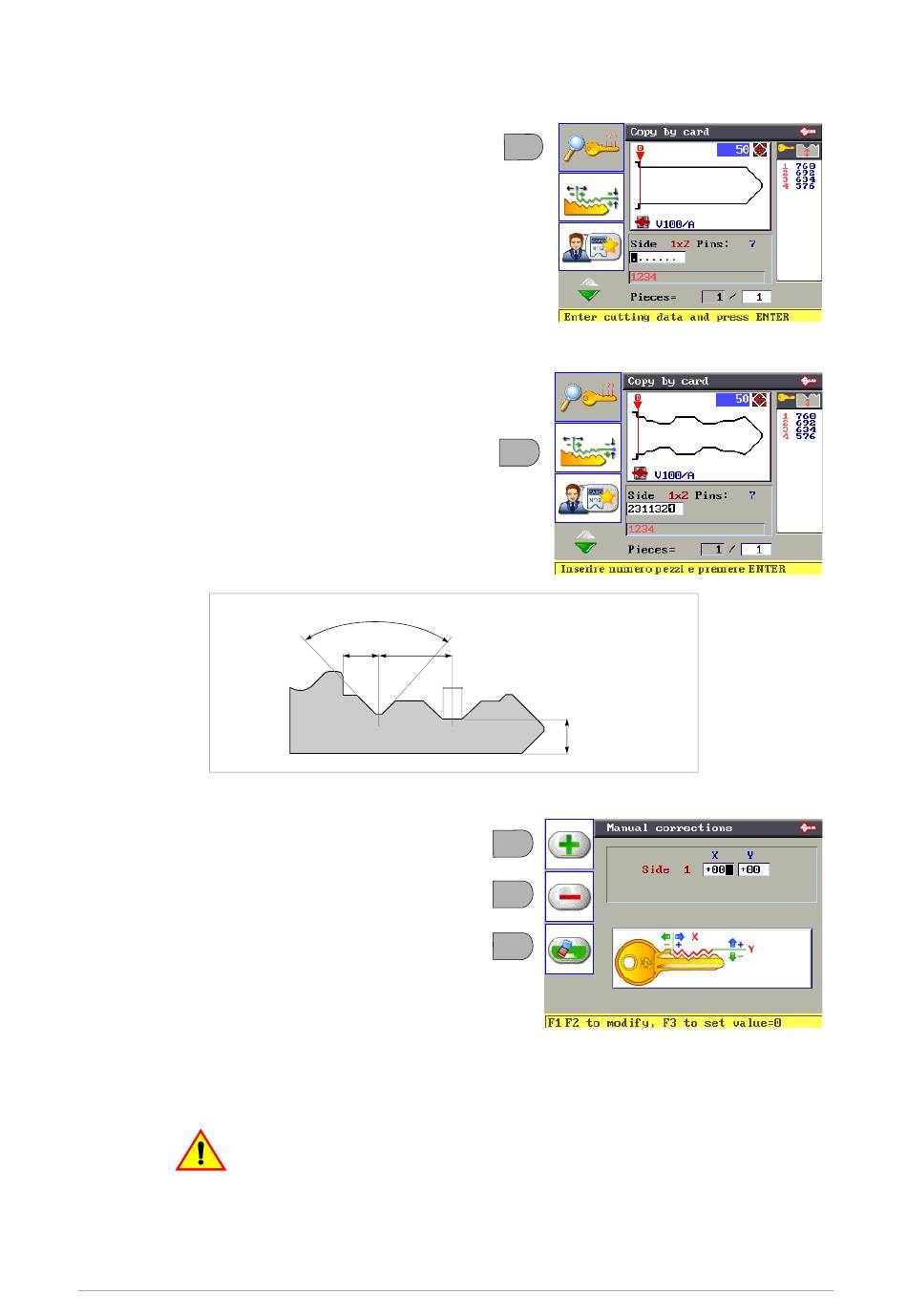

• Press F2 to set manual adjustment to cutting
depths and spaces.
Figura 26
• Press F1 to obtain positive values (+).
• Press F2 to obtain negative values (-).
• Press F3 to cancel the settings.
Y depth adjustment (from -30 to +30
hundredths of a mm):
- Y positive value: raise the cuts
- Y negative value: lower the cuts
X space adjustment (from -30 to +30
hundredths of a mm):
- X positive value: move cuts to the right of
the stop
- X negative v alue: move cuts to the left of
the stop
This symbol appears in Copy by Data Card when manual adjustments have
been made.
F1
F2
cutting angle
cutting spaces
flare (base of the cut)
F1
F2
F3
