Silca Unocode 399 Plus Operating Manual page 11

Operating manual - English
A1

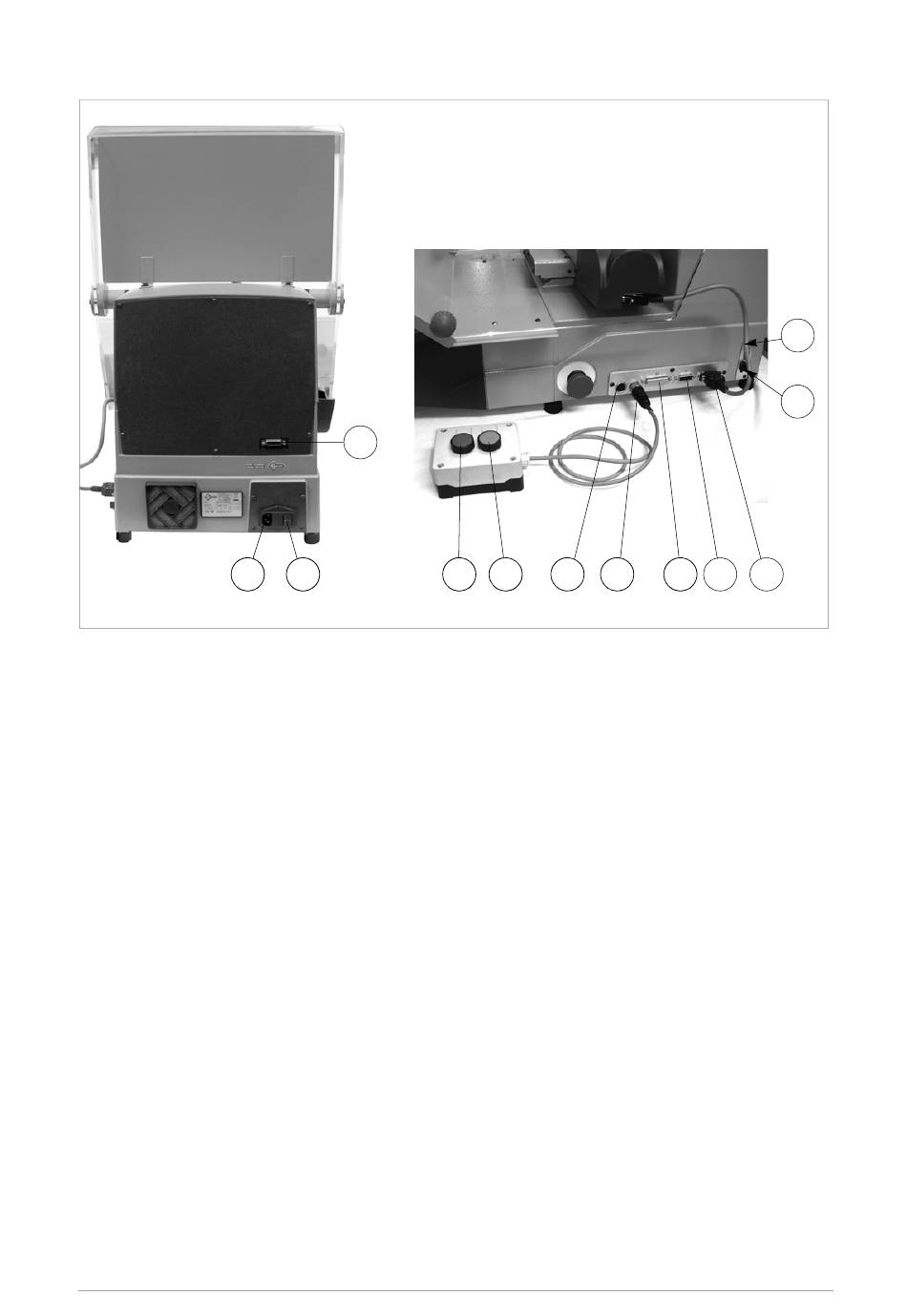

Fig. 6
A - master switch
A1 - power socket / fuse tray
B - k eyboard
C - display
D - clamp - cutter side
E - clamp knob
F - key gauge
H - cutter
I - cutter shield
J - STOP button
K - START button
L - external START/STOP connector
L1 - connector for unload sorter (*)
L2 - serial receptacle for suction (*)
N - emergency button
O - 3rd axis
P - IN/OUT port (Automatic feeder*)
Q - serial port
Q1- USB port
R - Y axis connector
S - X axis carriage
T - Y axis carriage
U - protective shield
U2 - vacuum system connector
V - swarf tray
(*) Feeder Kit, Suction Kit and Sorter Kit are optional accessories.
L2
A J
Copyright S ilca 2010
K L1 L
Unocode 399 PLUS
Q
Q1
P O R
