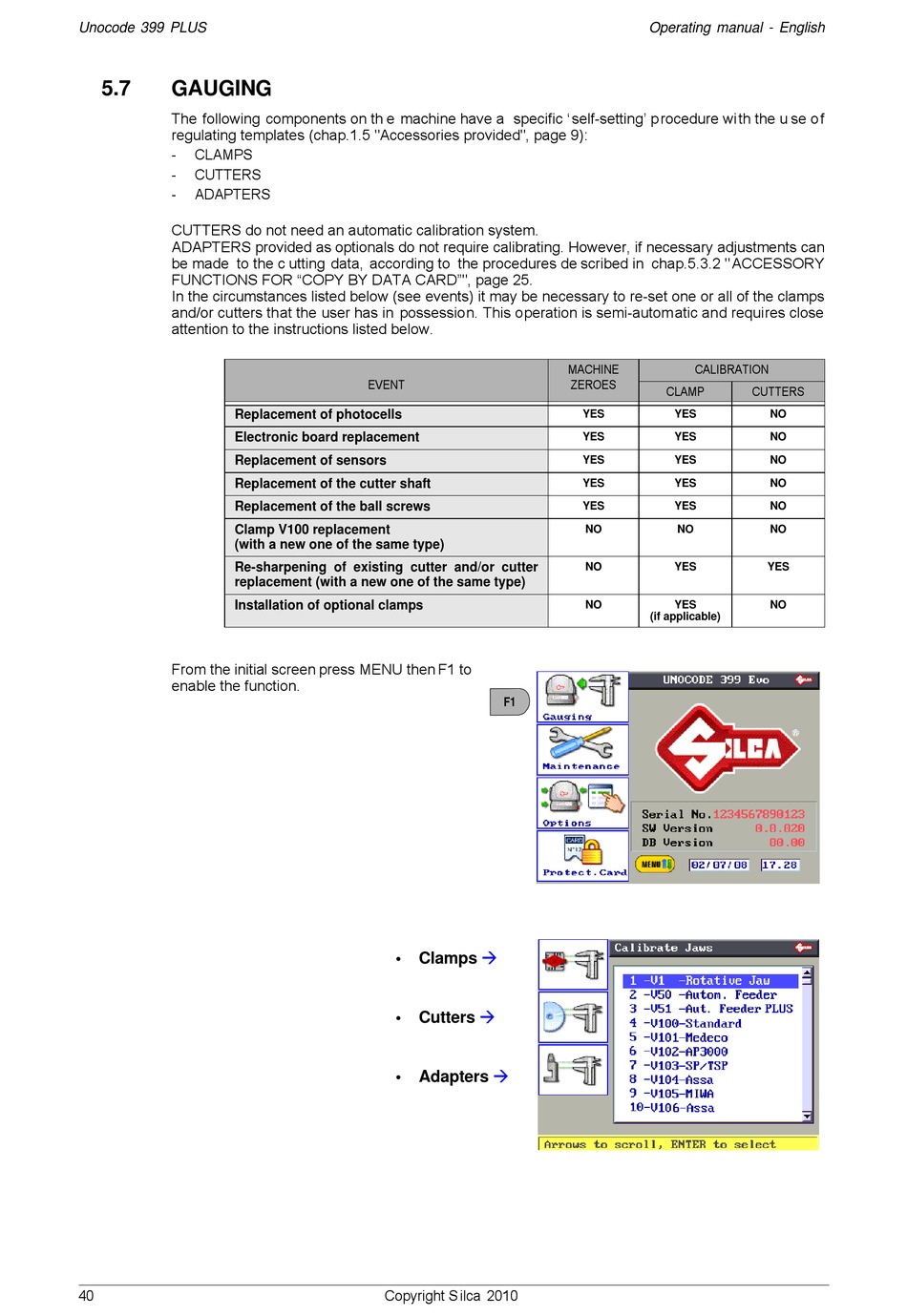

5.7 GAUGING
The following components on th e machine have a specific ' self-setting' p rocedure wi th the u se o f
regulating templates (chap.1.5 "Accessories provided", page 9):
- CLAMPS
- CUTTERS
- ADAPTERS
CUTTERS do not need an automatic calibration system.
ADAPTERS provided as optionals do not require calibrating. However, if necessary adjustments can
be made to the c utting data, according to the procedures de scribed in chap.5.3.2 " ACCESSORY
FUNCTIONS FOR "COPY BY DATA CARD"", page 25.
In the circumstances listed below (see events) it may be necessary to re-set one or all of the clamps
and/or cutters that the user has in possession. This operation is semi-automatic and requires close
attention to the instructions listed below.
Replacement of photocells
Electronic board replacement
Replacement of sensors
Replacement of the cutter shaft
Replacement of the ball screws
Clamp V100 replacement
(with a new one of the same type)
Re-sharpening of existing cutter and/or cutter
replacement (with a new one of the same type)
Installation of optional clamps
From the initial screen press MENU then F1 to
enable the function.
40
EVENT
F1

• Clamps

• Cutters

• Adapters
Copyright S ilca 2010
Operating manual - English
MACHINE CALIBRATION
ZEROES
CLAMP
YES YES
YES YES
YES YES
YES YES
YES YES
NO NO
NO YES
NO YES
(if applicable)
CUTTERS
NO
NO
NO
NO
NO
NO
YES
NO
