Silca Unocode 399 Plus Operating Manual page 78

Unocode 399 PLUS
7.12 B
ATTERY REPLACEMENT
Replacing the battery is a simple operation but must be carried out with care.
1) Disconnect the power lead from the key-cutting machine.
2) Gain access to the bottom compartment.
3) Use pliers with insulated tips to grip the battery and pull it out, taking care to push towards the pressure
tab to remove from its shaped housing.
4) Use the pliers with insulated tips to introduce the new battery, inclining it and pushing against the tab
to help it enter the shaped housing.
5) Close up the machine and connect to the mains.
6) Reconfigure the date and time on the machine (chap.5.9, page 52).
ATTENTION:RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS (chap.8 "DISPOSING OF
MACHINE", page 76).

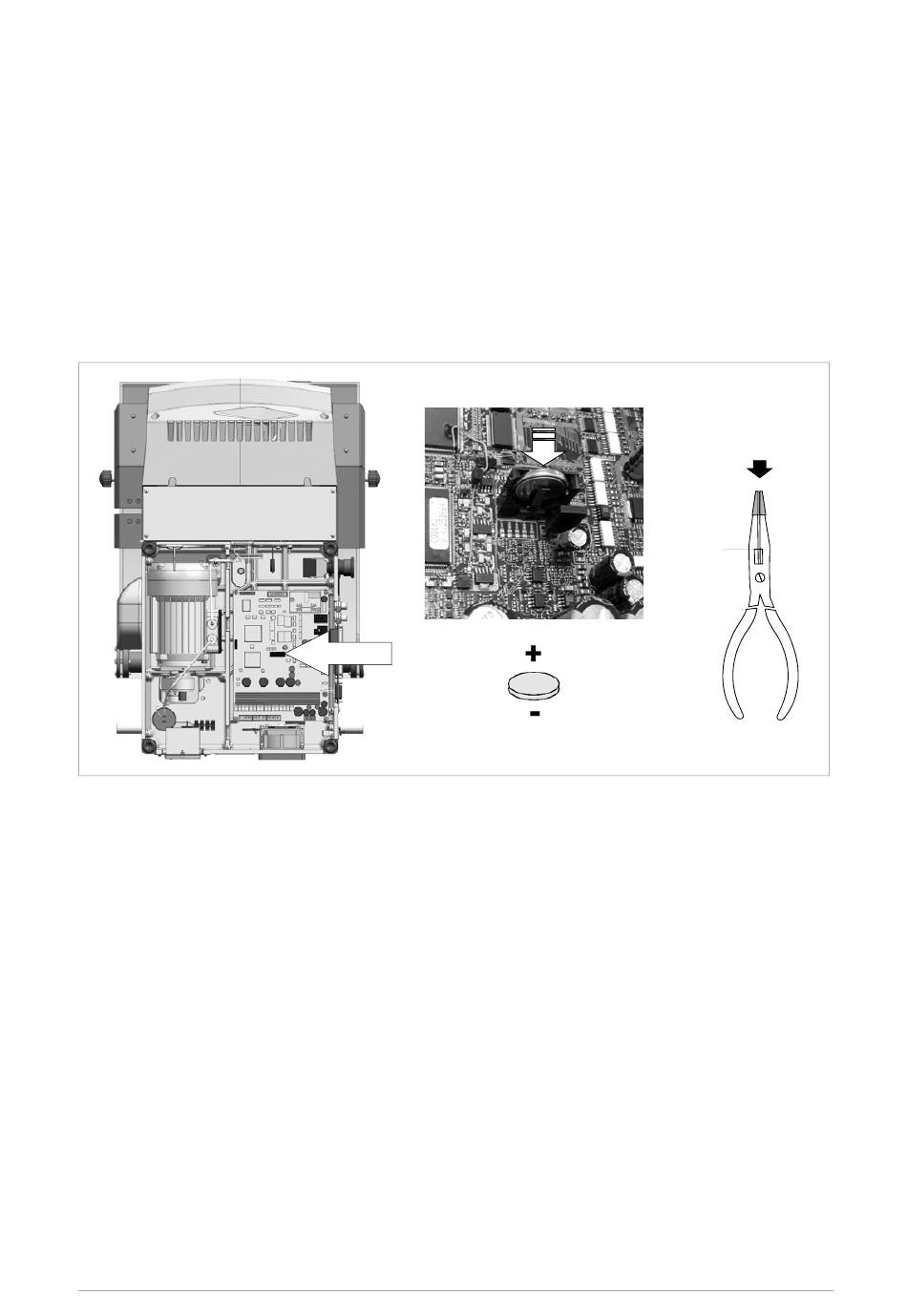

Fig. 66
74 Copyright S ilca 2010
Operating manual - English
insulated points
with adhesive tape
